3.6 Connecting the eluent bottle

3.6 Connecting the eluent bottle
Accessories
￭￭￭￭￭￭￭￭
20
The eluent is aspirated out of the eluent bottle via the eluent aspiration
tubing . The eluent aspiration tubing is installed on the entry to the high-
pressure pump.
The tubing must be be fed out of the instrument through a suitable open-
ing (see "Openings on the back panel", page 11) before the loose end
can be connected to the eluent bottle.
For this step, you need the following accessories:
These parts are part of the accessory kit Vario/Flex ONE (6.5000.010).
Eluent bottle (6.1608.070)
￭
The eluent bottle cap GL 45 accessory set (6.1602.160)
￭
This accessory set contains the bottle cap, an M6 tubing nipple, an M8
tubing nipple, two O-rings and an M6 and M8 threaded stopper.
The tubing adapter for aspiration filter accessory set (6.2744.210)
￭
This accessory set contains a filter holder, a clamping screw and tubing
weighting.
An aspiration filter (6.2821.090)
￭
The adsorber tube (6.1609.000)
￭
The SGJ clip (6.2023.020)
￭
Connecting the eluent aspiration tubing
1 Installing the eluent bottle cap (6.1602.160)
Start by pushing the M8 tubing nipple onto the loose end of the
￭
eluent aspiration tubing, followed by the O-ring.
Push the loose end of the eluent aspiration tubing through the
￭
M8 opening of the bottle cap and screw it on for the time being.

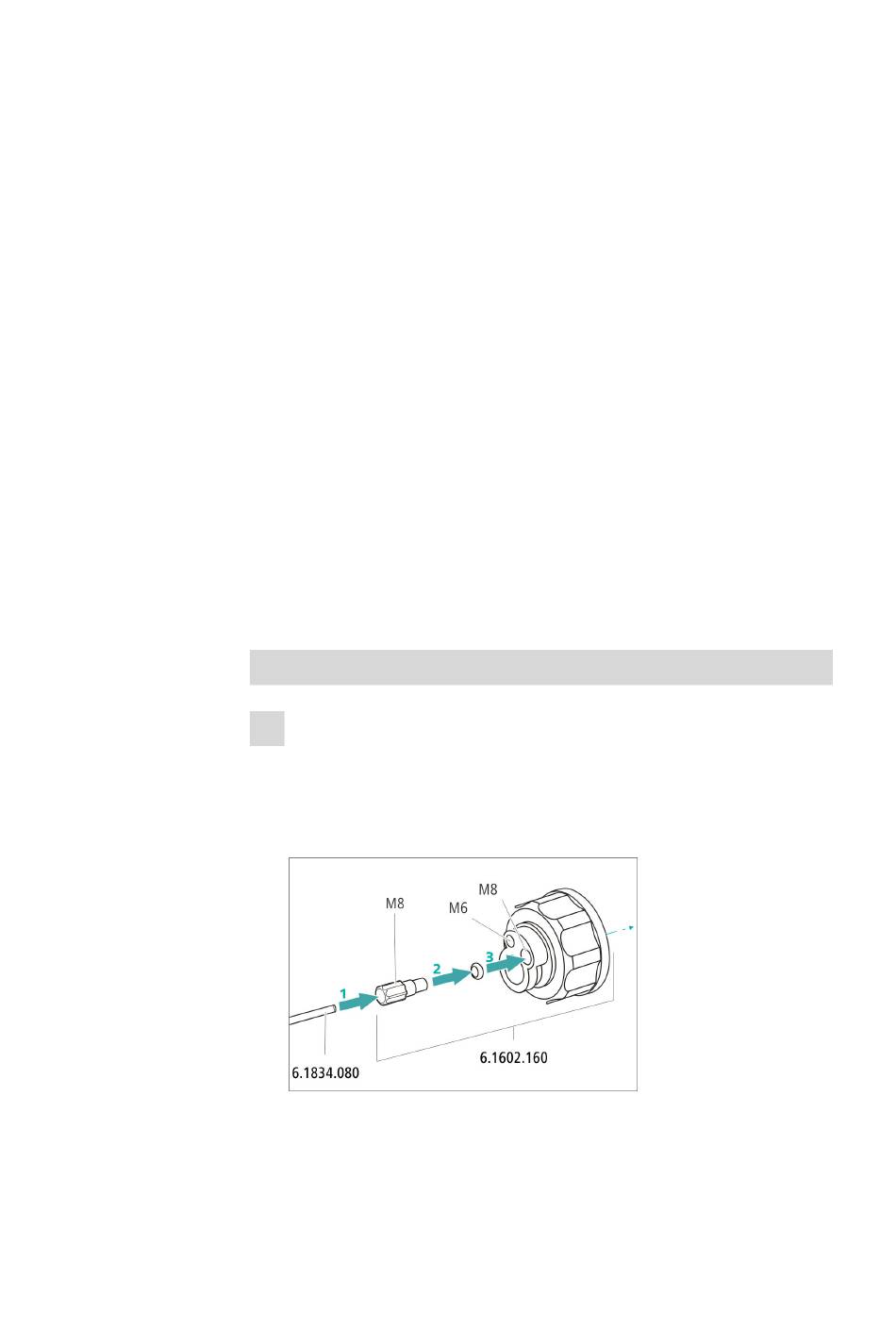

Figure 7 Installing the eluent bottle cap
￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭
