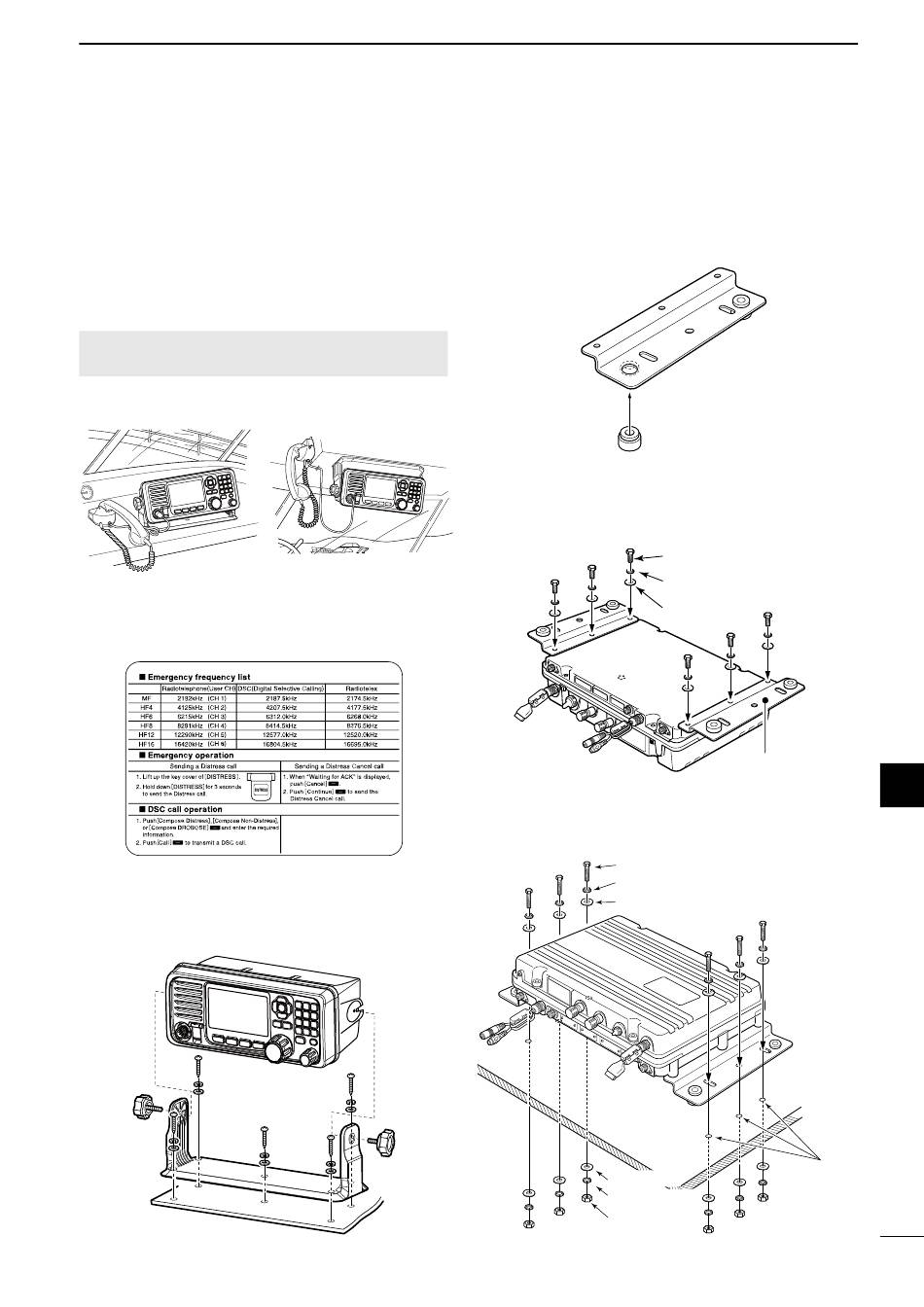

■ Mounting

D Mounting location

Select a location that provides easy access to the
remote controller for navigation safety, has good
ventilation and is not exposed to sea spray. The
remote controller should be at 90 degrees to your line
of sight when operating it.
NOTE: BE SURE to turn OFF [DC ISOLATE] on the
GM800 main unit when mounting the transceiver.
Adjust the display angle to be easy-to-read.
Put the supplied Emergency frequency sticker to
where you can always see when operating the
transceiver.

D Mounting the remote controller

Mount the remote controller using the supplied
mounting bracket kit.
CONNECTIONS AND INSTALLATION

D Attaching the mounting plates

1. Attach the supplied rubber feet to the mounting
plate, if desired.
2. Attach the mounting plates using the supplied
hex head bolts (M6×15), flat and spring washers,
as shown below.
Hex head bolt (M6×15)

D Mounting the main unit

Hex head bolt (M6×50)
Spring washer
Flat washer
Flat washer
Spring washer
Nut (M6)
Spring washer
Flat washer
Mounting plate
Drill 6 holes,
6 mm in
diameter.
9
9
82
