CONNECTIONS AND INSTALLATION

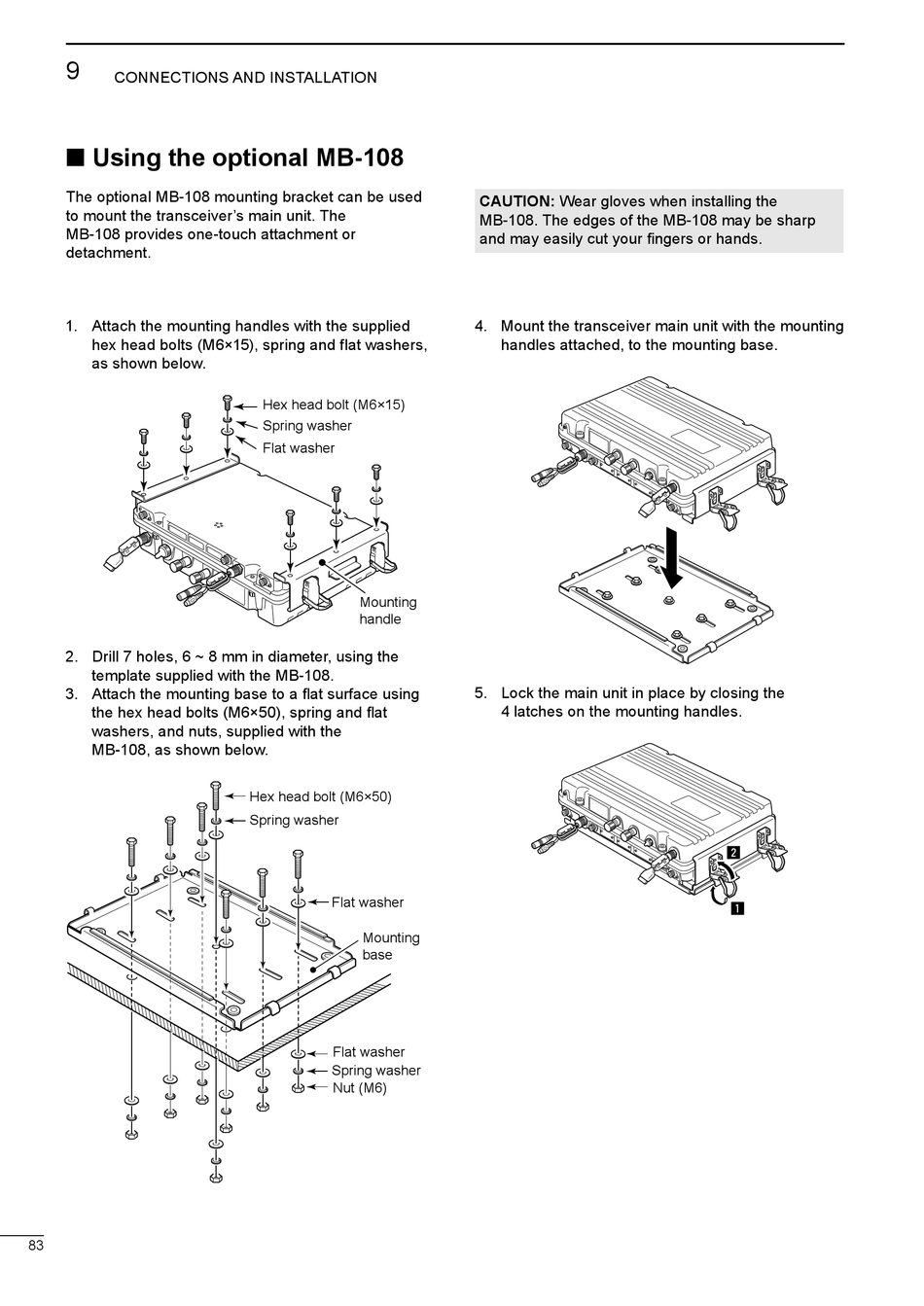

■ Using the optional MB-108

The optional MB-108 mounting bracket can be used
to mount the transceiver's main unit. The
MB-108 provides one-touch attachment or
detachment.
1. Attach the mounting handles with the supplied
hex head bolts (M6×15), spring and flat washers,
as shown below.
2. Drill 7 holes, 6 ~ 8 mm in diameter, using the
template supplied with the MB-108.
3. Attach the mounting base to a flat surface using
the hex head bolts (M6×50), spring and flat
washers, and nuts, supplied with the
MB-108, as shown below.
83
Hex head bolt (M6×15)
Spring washer
Flat washer
Mounting
handle
Hex head bolt (M6×50)
Spring washer
Flat washer
Mounting
base
Flat washer
Spring washer
Nut (M6)
CAUTION: Wear gloves when installing the
MB-108. The edges of the MB-108 may be sharp
and may easily cut your fingers or hands.
4. Mount the transceiver main unit with the mounting
handles attached, to the mounting base.
5. Lock the main unit in place by closing the
4 latches on the mounting handles.
