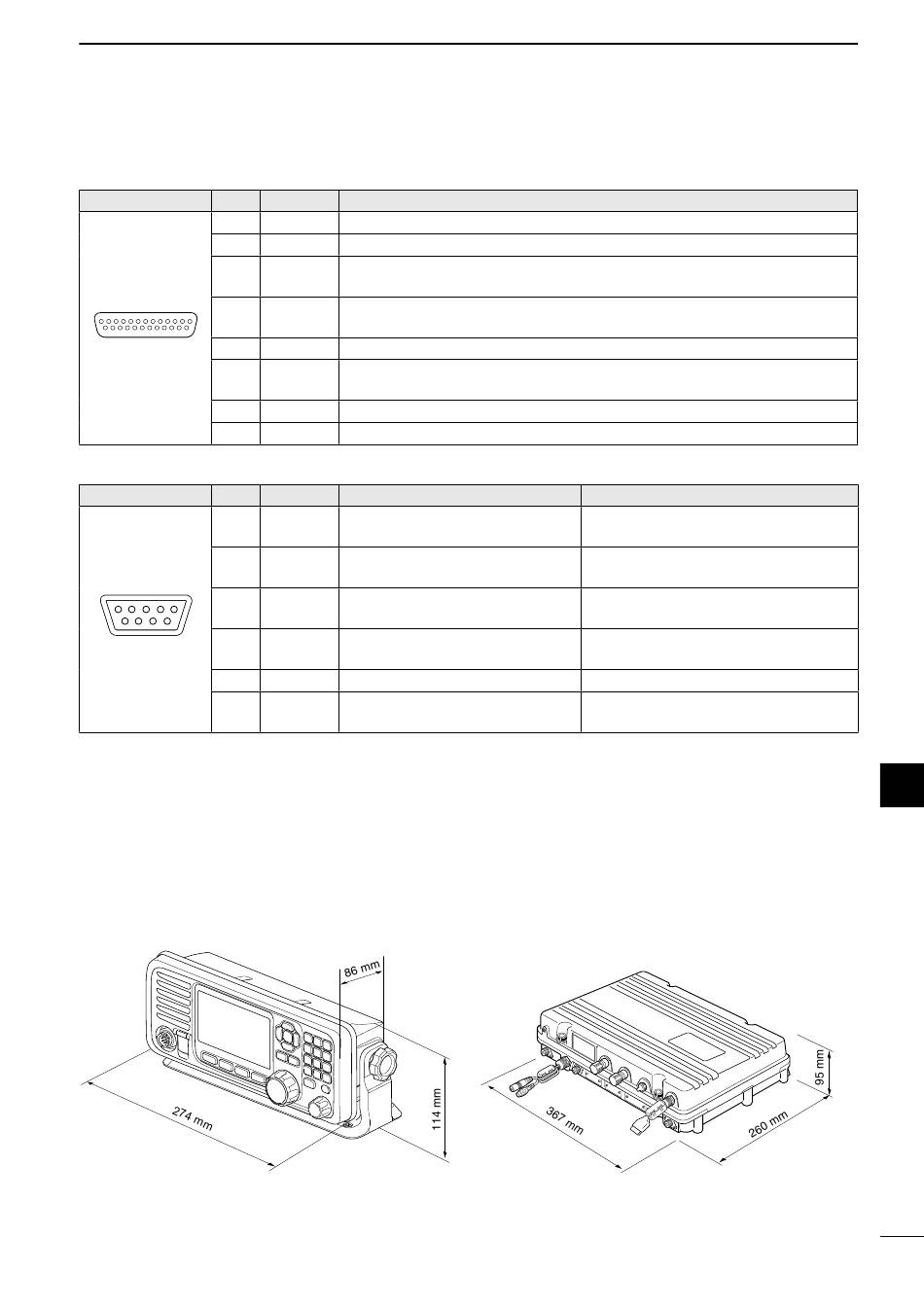

■ Transceiver dimensions

Pin name
STROBE Outputs a strobe pulse after data output.
DATA1~8 Outputs 8 bit parallel data.
Receives a 'Low' pulse from the printer when the printer can accept more
ACKNLG
data.
The printer sets this pin to 'High' when it can not accept data, such as
BUSY
when the printer is 'off line.'
NC NOTE: Do not connect to these pins.
The printer sets this pin to 'Low' when an error occurs, such as when the
ERROR
printer has no paper.
NC NOTE: Do not connect to these pins.
GND Ground terminals.
Pin name Description
DATA- Ground for DATA-OUT (+)
OUT (–) terminal.
DATA- IEC61162-1 Ed.4 (2010-11)
OUT (+) data output.
DATA-IN IEC61162-1 Ed.4 (2010-11)
(+) data input.
DATA-IN Ground for DATA-IN (+) terminal. –
(–)
GND Connected to ground.
NOTE: Do not connect to these
NC
pins.
CONNECTIONS AND INSTALLATION
Description
Specification
–
Input level: 5V, 40mA maximum
(at 2 V applied)
Output level: Less than 2 mA
(RS-422A balanced type)
–
–
