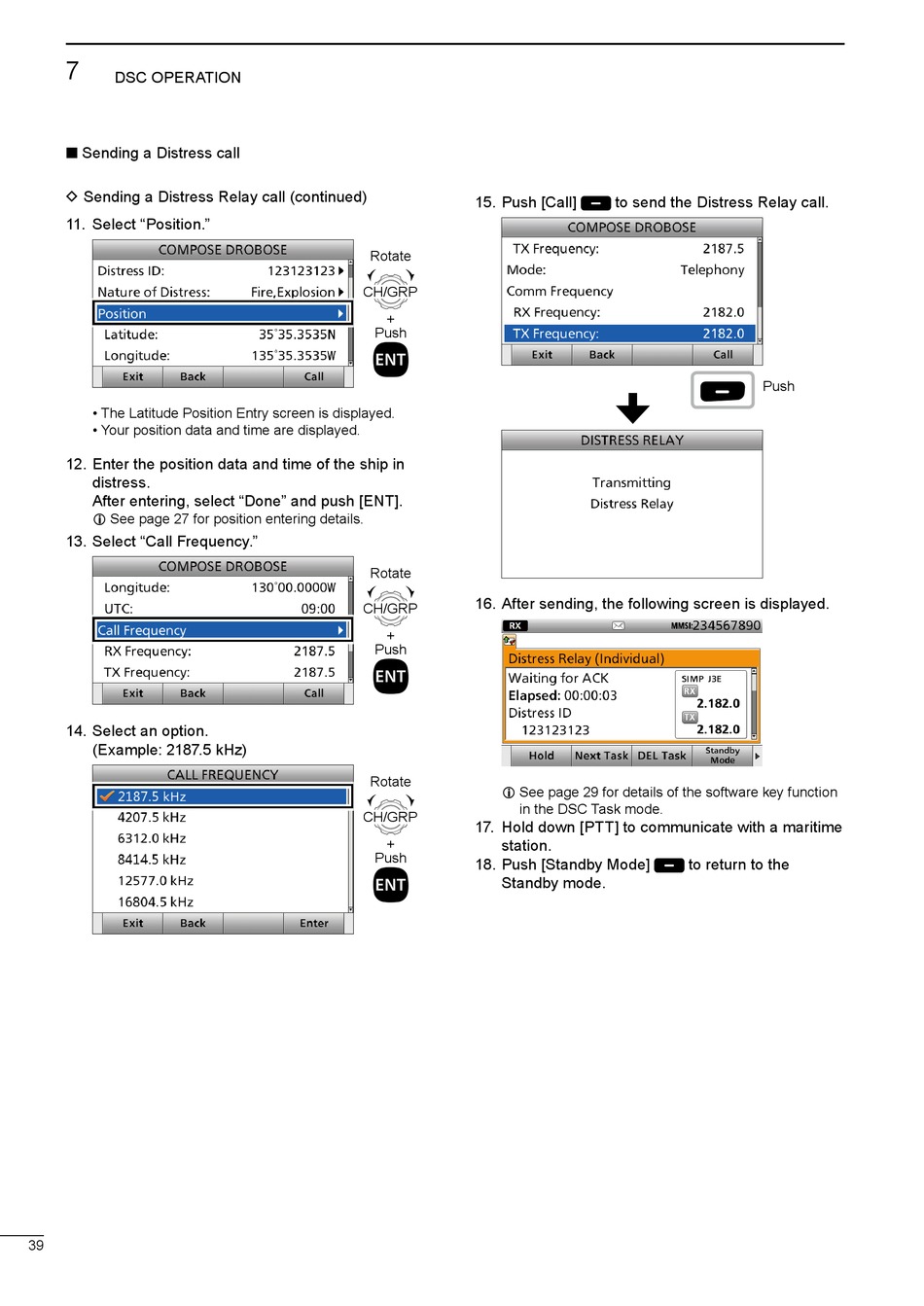

Icom IC-GM800 Instruction Manual page 44

7
DSC OPERATION
■ Sending a Distress call
D Sending a Distress Relay call (continued)
11. Select "Position."
• The Latitude Position Entry screen is displayed.
• Your position data and time are displayed.
12. Enter the position data and time of the ship in
distress.
After entering, select "Done" and push [ENT].
 See page 27 for position entering details.
13. Select "Call Frequency."
14. Select an option.
(Example: 2187.5 kHz)
39
15. Push [Call]
Rotate
CH/GRP
+
Push
Rotate
16. After sending, the following screen is displayed.
CH/GRP
+
Push
Rotate
 See page 29 for details of the software key function
in the DSC Task mode.
CH/GRP
17. Hold down [PTT] to communicate with a maritime
+
station.
Push
18. Push [Standby Mode]
Standby mode.
to send the Distress Relay call.
Push
to return to the
