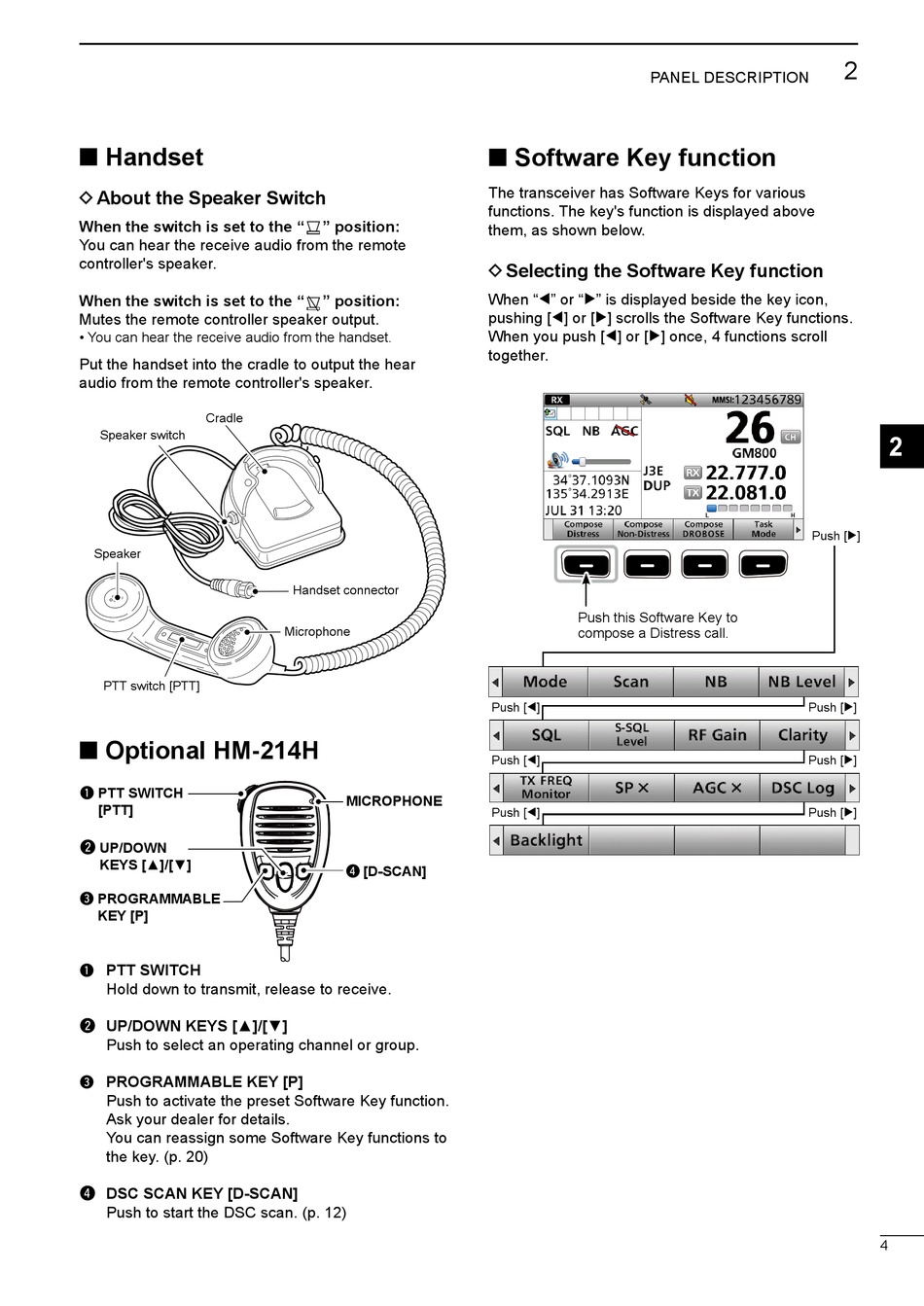

■ Handsea
D About the Speaker Switch
When the switch is set to the "
You can hear the receive audio from the remote
controller's speaker.
When the switch is set to the "
Mutes the remote controller speaker output.
• You can hear the receive audio from the handset.
Put the handset into the cradle to output the hear
audio from the remote controller's speaker.
Cradle
Speaker switch
Speaker
PTT switch [PTT]
■ Optional HM-214H
q PTT SWITCH
[PTT]
UP/DOWN
w
KEYS [▲]/[▼]
e PROGRAMMABLE
KEY [P]
PTT SWITCH
q
Hold down to transmit, release to receive.
w UP/DOWN KEYS [▲]/[▼]
Push to select an operating channel or group.
PROGRAMMABLE KEY [P]
e
Push to activate the preset Software Key function.
Ask your dealer for details.
You can reassign some Software Key functions to
the key. (p. 20)
r DSC SCAN KEY [D-SCAN]
Push to start the DSC scan. (p. 12)
" position:
" position:
Handset connector
Microphone
MICROPHONE
r [D-SCAN]
PANEL DESCRIPTION
■ Software Key function
The transceiver has Software Keys for various
functions. The key's function is displayed above
them, as shown below.
D Selecting the Software Key function
When "Ω" or "≈" is displayed beside the key icon,
pushing [Ω] or [≈] scrolls the Software Key functions.
When you push [Ω] or [≈] once, 4 functions scroll
together.
Push this Software Key to
compose a Distress call.
Push [Ω]
Push [Ω]
Push [Ω]
2
1
2
3
4
Push [≈]
5
6
7
Push [≈]
8
Push [≈]
9
Push [≈]
10
11
12
13
14
15
16
17
4
