7

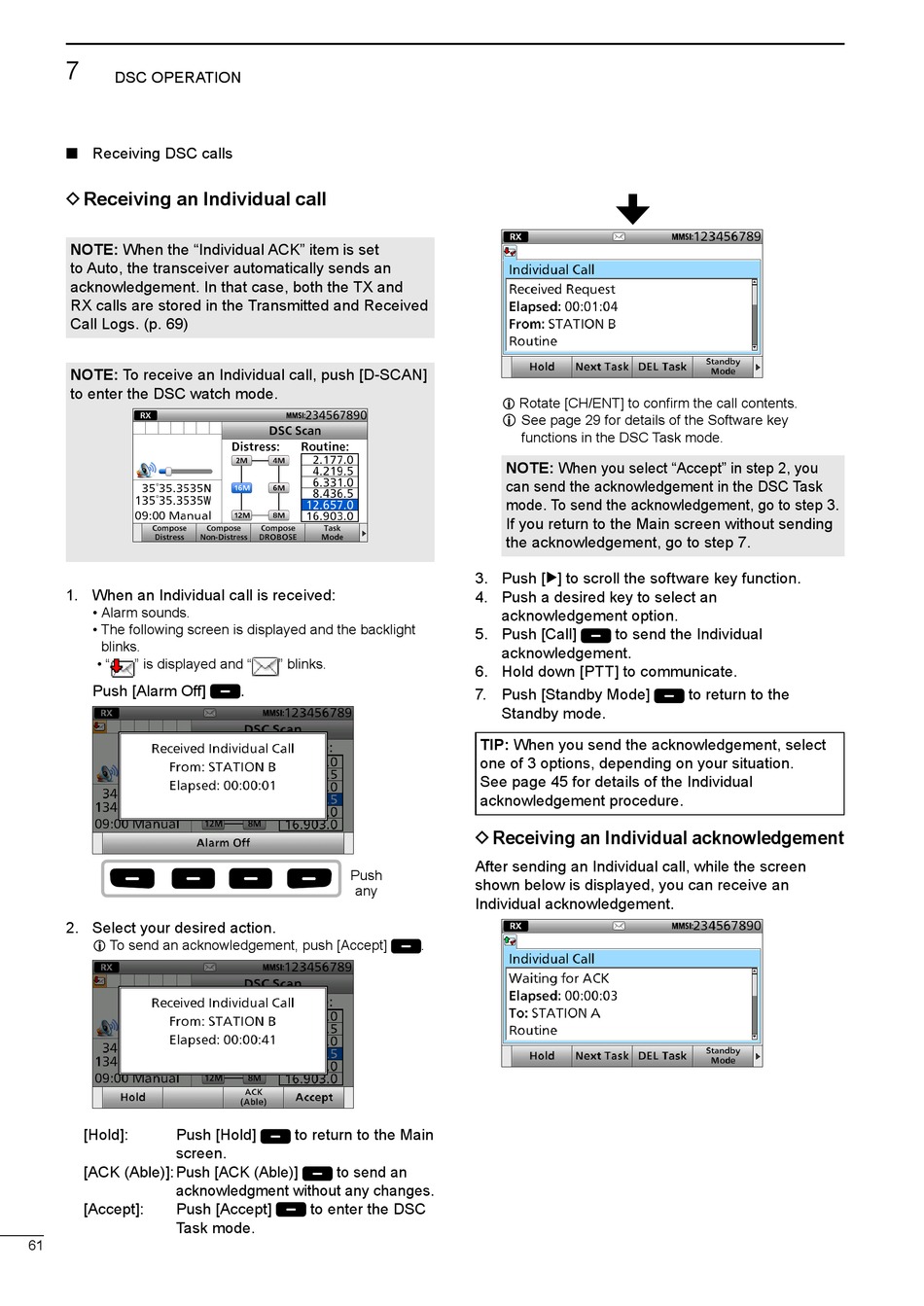

DSC OPERATION
■ Receiving DSC calls
D Receiving an Individual call
NOTE: When the "Individual ACK" item is set
to Auto, the transceiver automatically sends an
acknowledgement. In that case, both the TX and
RX calls are stored in the Transmitted and Received
Call Logs. (p. 69)
NOTE: To receive an Individual call, push [D-SCAN]
to enter the DSC watch mode.
1. When an Individual call is received:
• Alarm sounds.
• The following screen is displayed and the backlight
blinks.
• "
" is displayed and "
Push [Alarm Off]
2. Select your desired action.
L To send an acknowledgement, push [Accept]
[Hold]:
Push [Hold]
screen.
[ACK (Able)]: Push [ACK (Able)]
acknowledgment without any changes.
[Accept]:
Push [Accept]
Task mode.
61
" blinks.
.
Push
any
to return to the Main
to send an
to enter the DSC
L Rotate [CH/ENT] to confirm the call contents.
See page 29 for details of the Software key
L
functions in the DSC Task mode.
NOTE: When you select "Accept" in step 2, you
can send the acknowledgement in the DSC Task
mode. To send the acknowledgement, go to step 3.
If you return to the Main screen without sending
the acknowledgement, go to step 7.
3. Push [≈] to scroll the software key function.
4. Push a desired key to select an
acknowledgement option.
5. Push [Call]
acknowledgement.
6. Hold down [PTT] to communicate.
7. Push [Standby Mode]
Standby mode.
TIP: When you send the acknowledgement, select
one of 3 options, depending on your situation.
See page 45 for details of the Individual
acknowledgement procedure.
D Receiving an Individual acknfwledgerent
After sending an Individual call, while the screen
shown below is displayed, you can receive an
Individual acknowledgement.
.
to send the Individual
to return to the
