■ Mounting

D Mounting location

Select a location that provides easy access to the
remote controller for navigation safety, has proper
ventilation, and is not subject to sea spray. The
remote controller should be in your line of sight when
operating it.

D Mounting the remote controller

You can mount the remote controller on a dashboard
using the mounting bracket supplied with the
transceiver.
1. Securely mount the bracket to a more than 10 mm
thick surface that supports more than 2 kg, using
the 5 supplied screws (5 × 20 mm).
2. Attach the remote controller to the bracket so that
the face of the remote controller is in your line of
sight when operating it.
L Adjust the function display angle to be easy to read.
3. Attach the supplied knobs to both sides of the
remote controller.
CONNECTIONS AND INSTALLATION
CAUTION: KEEP the transceiver and microphone
at least 1 meter away from your vessel's magnetic
navigation compass.
NOTE:
• Turn OFF [DC ISOLATE] on the Main unit when
mounting the transceiver.
• Place the supplied Emergency frequency sticker
to where it always be visible when operating the
transceiver.

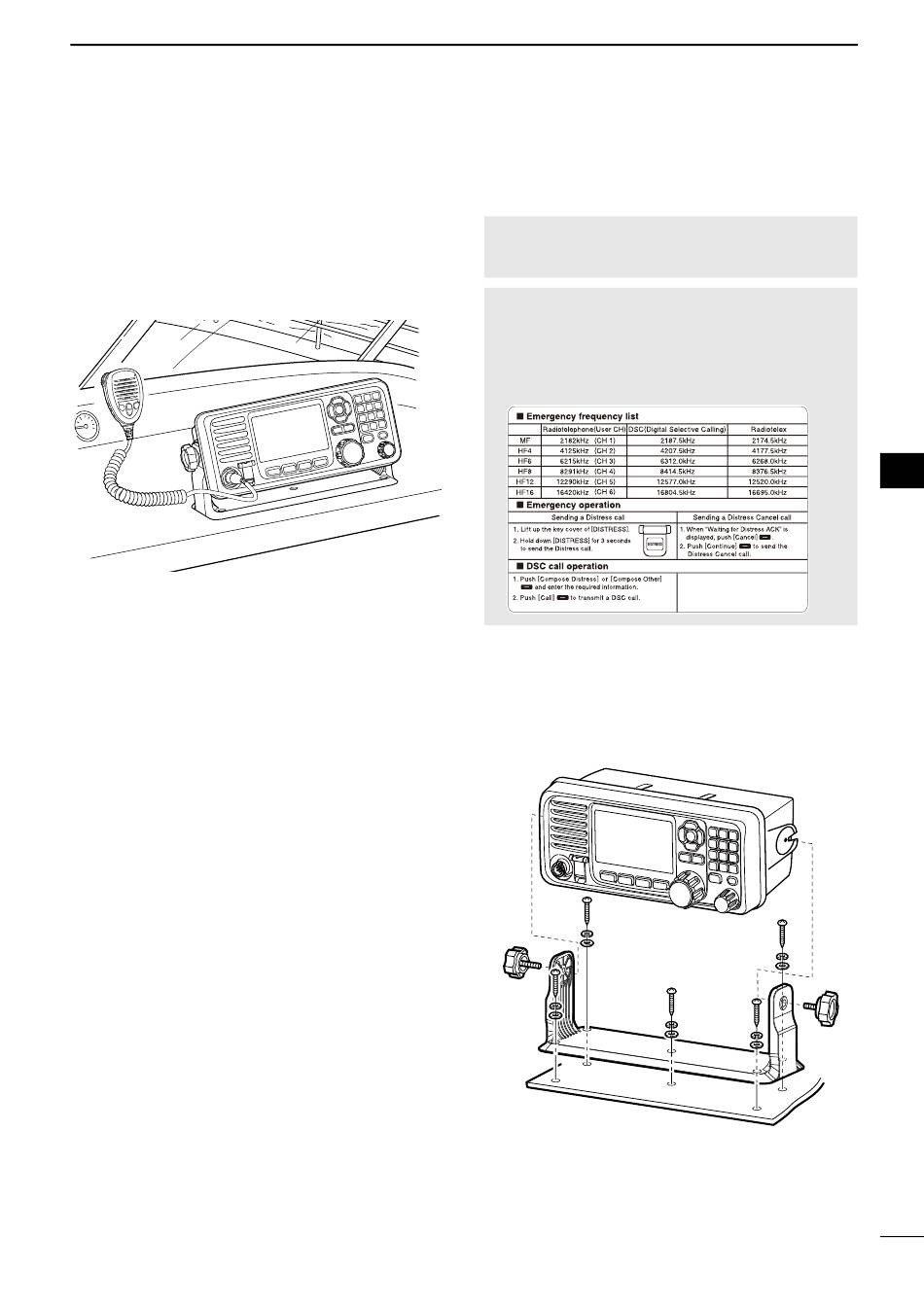

Mounting Example
