Spectra Logic Spectra 10000 Installation Manual page 26

Performance Test 4: Drive Load/Tape Eject Test (continued)
Tape Eject

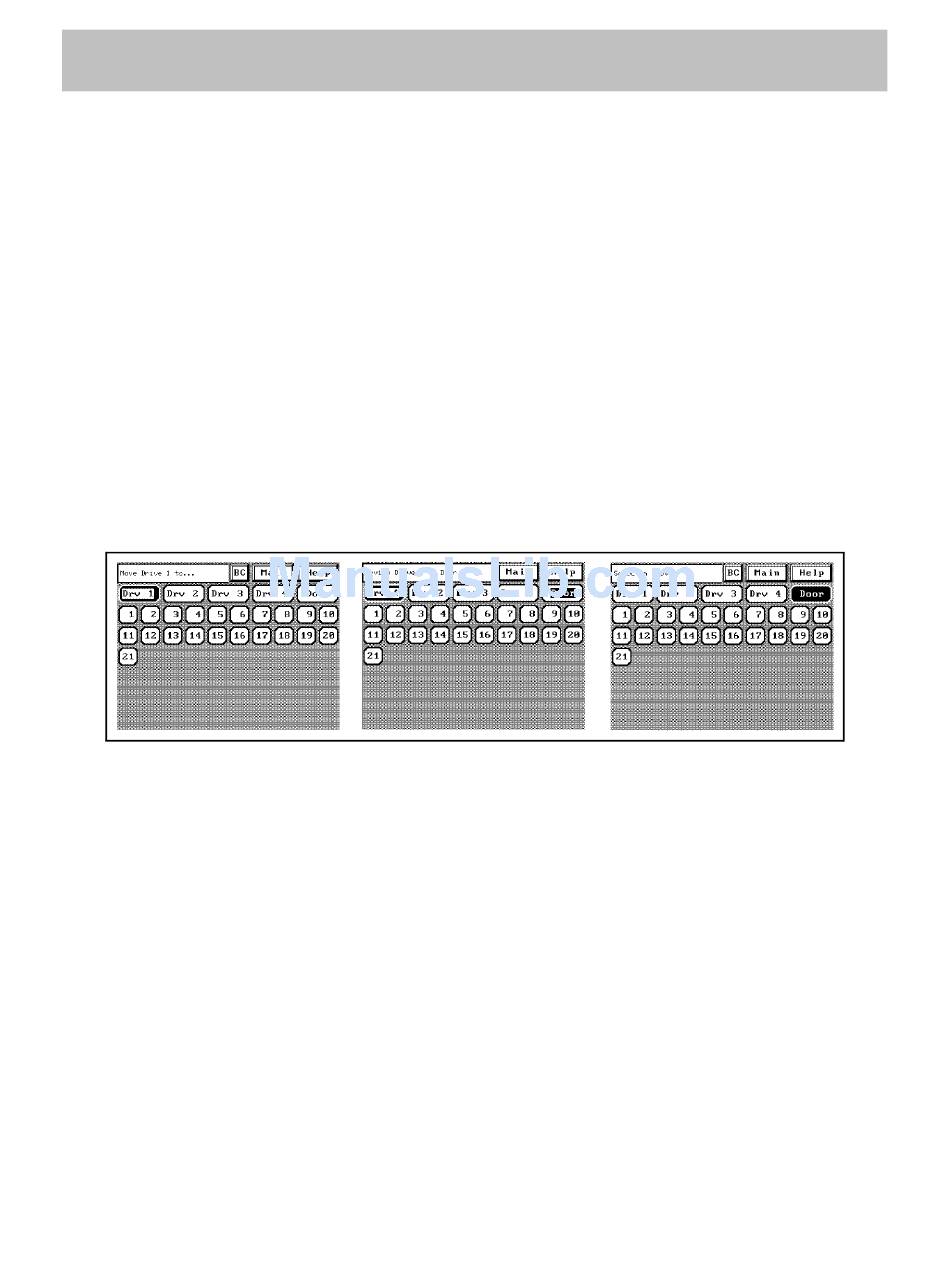

Figure 21 shows the screens to eject a tape.
Touch the button corresponding to the drive containing the tape. The drive
1.
button will turn white with a heavy black border.
Touch the door button to move the tape from the drive to the door. When the
2.
door button is selected, it becomes highlighted, and the library begins the move
tape operation.
When the eject operation is complete, the drive button turns white with dark
3.
letters, and the destination button turns dark with white letters. The tape is now
at the door.
Figure 21 Eject Tape screen series.
Repeat the Drive Load/Tape Eject Test for each drive in the library.
4.
26 Spectra 10000 Library AIT Tape Drive Installation Guide
Library Performance Tests
