Connect the Cables to the Drive and Library
Connect the library side of the SCSI ID cable to the printed circuit board in the
3.
recessed section of the back panel (Figure 14).
Note:
The physical location of the drive must match to the electrical location
of the drive. For example, if the drive is physically located in Drive 3,
then the library side of the SCSI ID cable must be connected to the
DRV 3 connector on the circuit board in the recessed section of the
back panel. In Figure 14, the white arrow points to the library side of
the SCSI ID connector for Drive 2. The connector on the circuit board
is labeled DRV 2 and the drive location is Drive 2.
20 Spectra 10000 Library AIT Tape Drive Installation Guide

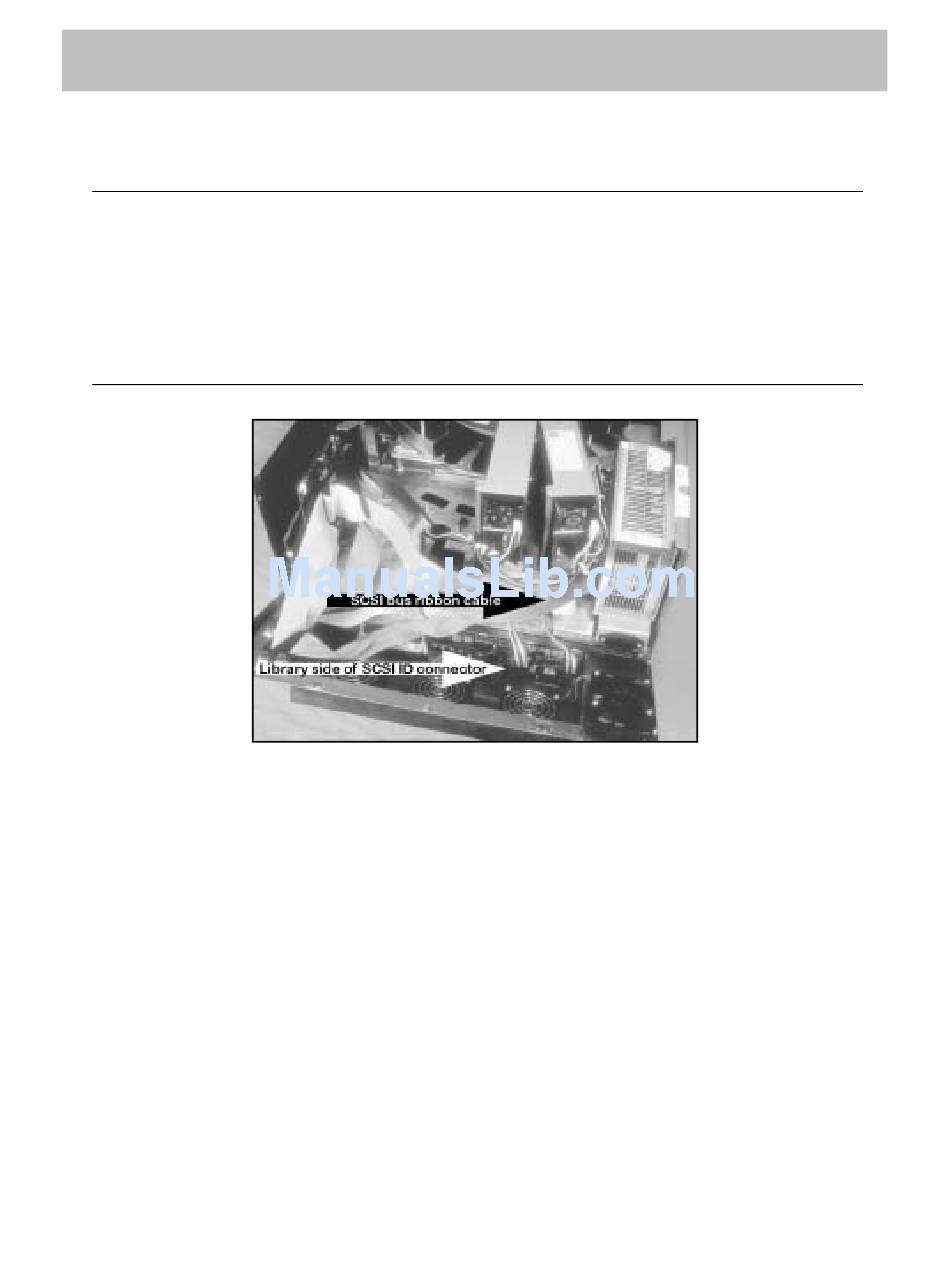

Figure 14 Rear view of the opened library with the back panel lowered.
