Perform the diagnostic checks after configuring the library, and before full scale
integration in your system. If any diagnostic checks fail, contact Spectra Logic Technical
Support at (800) 227-4637 or at (303) 449-6444, extension 3175.
Performance Test 1: Power Up
Connect the AC power cord to the library and the wall outlet. Turn on the library's
1.
power. Do not connect the library to the host computer (that comes later).
Turn on the library and observe the power up sequence.
2.
The power up screen sequence is:
3.
i. The Boot Code screen displaying the Spectra 10000 boot code version number
ii. The Spectra 10000 Configuration screen showing the date of manufacture, the
serial number, the SCSI configuration for the busses and drives, and the
library configuration switch
iii. The Main screen (Figure 17)
If the library does not display the Spectra 10000 configuration screen and the
4.
Main screen does not appear, there is a SCSI bus conflict. Turn off the library
and recheck the SCSI IDs and SCSI bus terminators.
Caution:
Exercise care when configuring SCSI IDs. A SCSI ID conflict on the
bus can cause a computer system to crash.
When the Main screen appears, proceed to Performance Test 2: Check the SCSI
5.
IDs on page 23.
22 Spectra 10000 Library AIT Tape Drive Installation Guide

Library Performance Tests

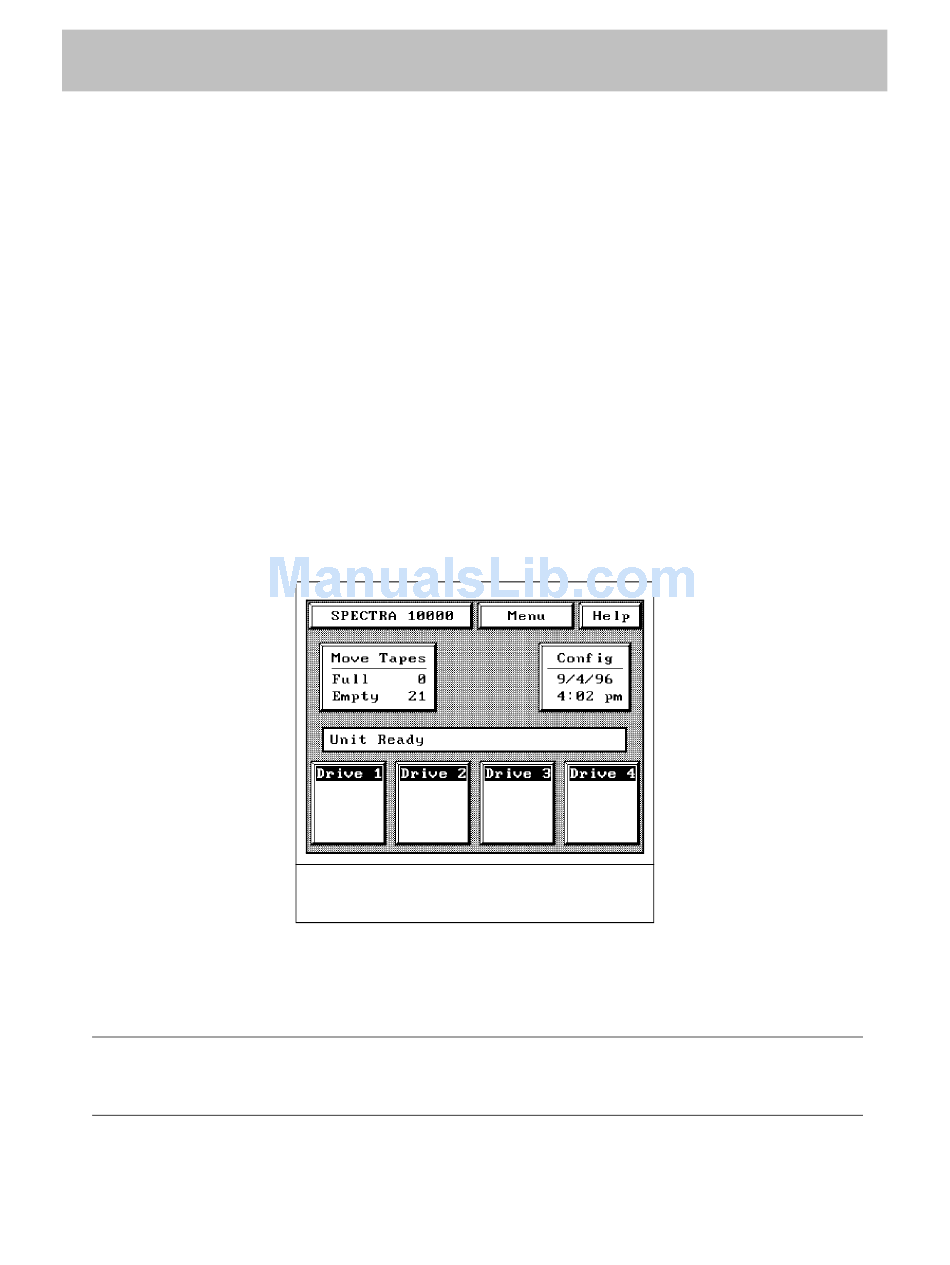

Figure 17 Spectra 10000 main screen (showing four
drives installed).
