In 4-stroke, the first time the button is pressed the gas flows
for the manual pre-gas time; when the button is released, the
arc is struck. If the button is pressed again and definitively
released, the current slope-down and post-gas time begin.
In BILEVEL the welder can weld with 2 different currents pre-
viously set via S5.
The first time the torch button is pressed, the pre-gas time is
run, the arc is struck and welding is performed with the initial
current.
The first time it is released, slope-up to current "I1" occurs. If
the welder presses and quickly releases the button, the
machine will go to "I2"; by pressing and quickly releasing the
button it returns to "I1" and so on.
If the button is pressed for longer, the current slope-down
begins which leads to the final current.
When the button is released the arc goes out while the gas
continues to flow for the post-gas time.
*
S4: Welding procedure selection key
Permits selection of the welding procedure.
Switch-on of the led at the side of the symbol confirms the
selection.
Procedures:
- MMA (electrode)
- TIG LIFT-ARC start
- TIG HIGH FREQUENCY start
*
S5: SET-UP/parameters key
Permits access to the SET-UP and welding parameter values.
When pressed at switch-on, it permits access to the set-up
parameters while the software version appears on D1.
If pressed after the end of the welder switch-on procedure, it
selects in sequence the welding parameters presented in the
graph G1 with value shown by D1 and variable with E1.
Tu Slope-up time
l Welding current
lb Basic current in pulsed and medium frequency welding
Tp Peak time in pulsed and medium frequency welding
Tb Basic time in pulsed and medium frequency welding
Td Slope-down time
lf Final current
Pg Post-gas time
l2 Second welding current in BILEVEL
When in MEDIUM FREQUENCY operation, the
leds Tp and Tb come on simultaneously and
the pulse frequency value appears on the dis-
play D1.
4.1.2 FP122 front control panel for Genesis 200 AC-DC
and Genesis 202 AC-DC (fig. 2)
*
L1: Power on: green led
See 4.1.1
*
L2: Protection device: yellow led
See 4.1.1
* Alarm codes
See 4.1.1
*
L3: Voltage output (work): red led
See 4.1.1
* Display D1
See 4.1.1
* E1: Encoder for entering the welding current, welding para-
meters and set-up values
See 4.1.1
*
S1: Current regulation system key
See 4.1.1
* J1: 7-pole military standard connector
See 4.1.1
* S2 : Key for selecting type of TIG welding current.
Key for selecting type of TIG welding current
- CONSTANT current with or without SLOPES.
- PULSED current with or without SLOPES.
- MEDIUM FREQUENCY current with or without SLOPES.
Switch-on of the led at the side of the symbol confirms the
selection.
The MEDIUM FREQUENCY function is not enabled in AC.
* S3: Key for selecting control mode in TIG
See 4.1.1
* S4: Welding procedure selection key.
Permits selection of the welding procedure.
Switch-on of the led at the side of the symbol confirms the
selection.
Procedures:
- MMA (electrode)
- TIG DC
- TIG AC
* S5: SET-UP/parameters key
Permits access to the SET-UP and welding parameter values.
When pressed at switch-on, it permits access to the set-up
parameters while the software version appears on D1.
If pressed after the end of the welder switch-on procedure, it
selects in sequence the welding parameters presented in the
graph G1 with value shown by D1 and variable with E1.

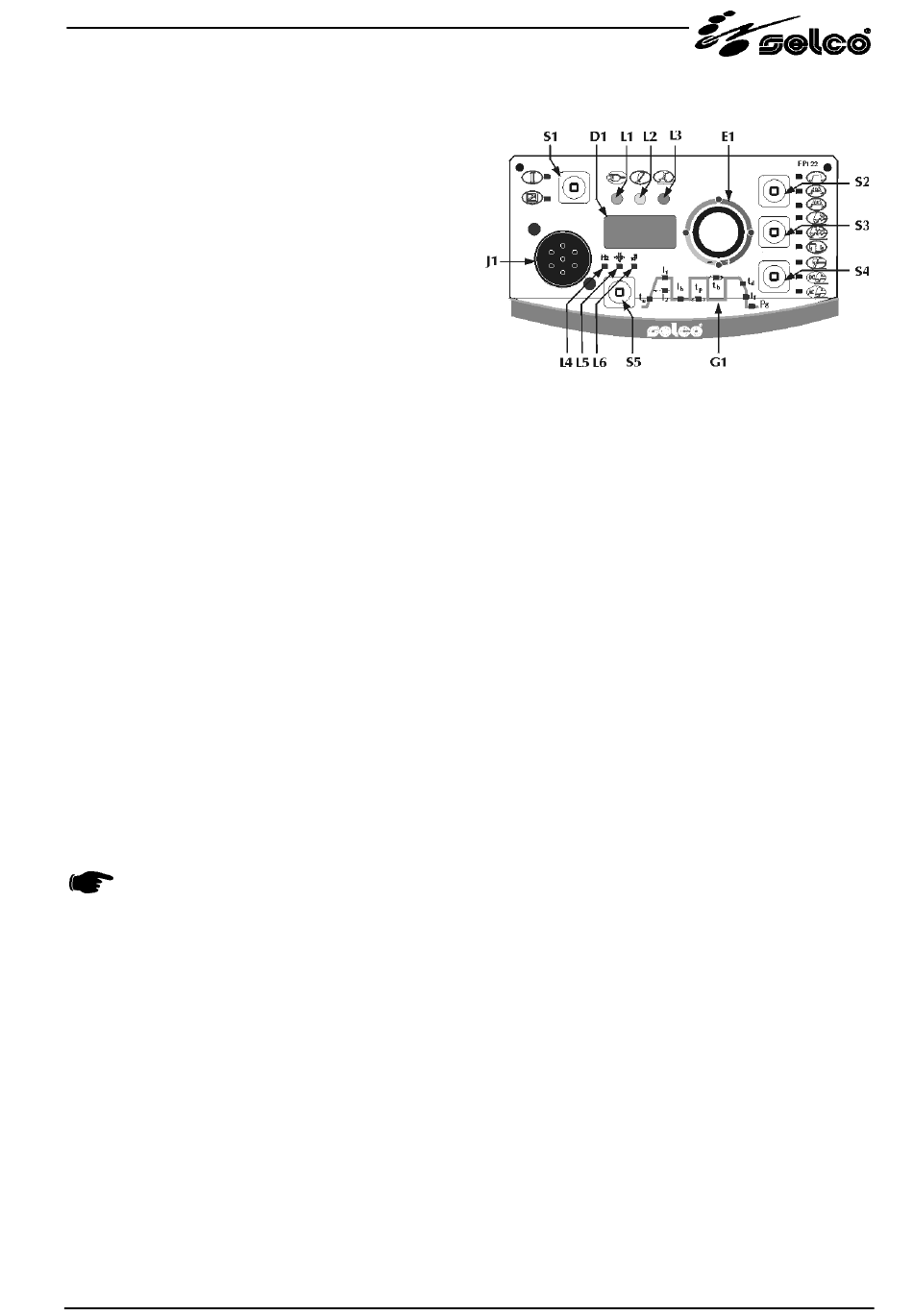

Fig.2
21
