Hardware Installation and Reference Guid
After installation, verify that the AP is securely fastened.

3.5

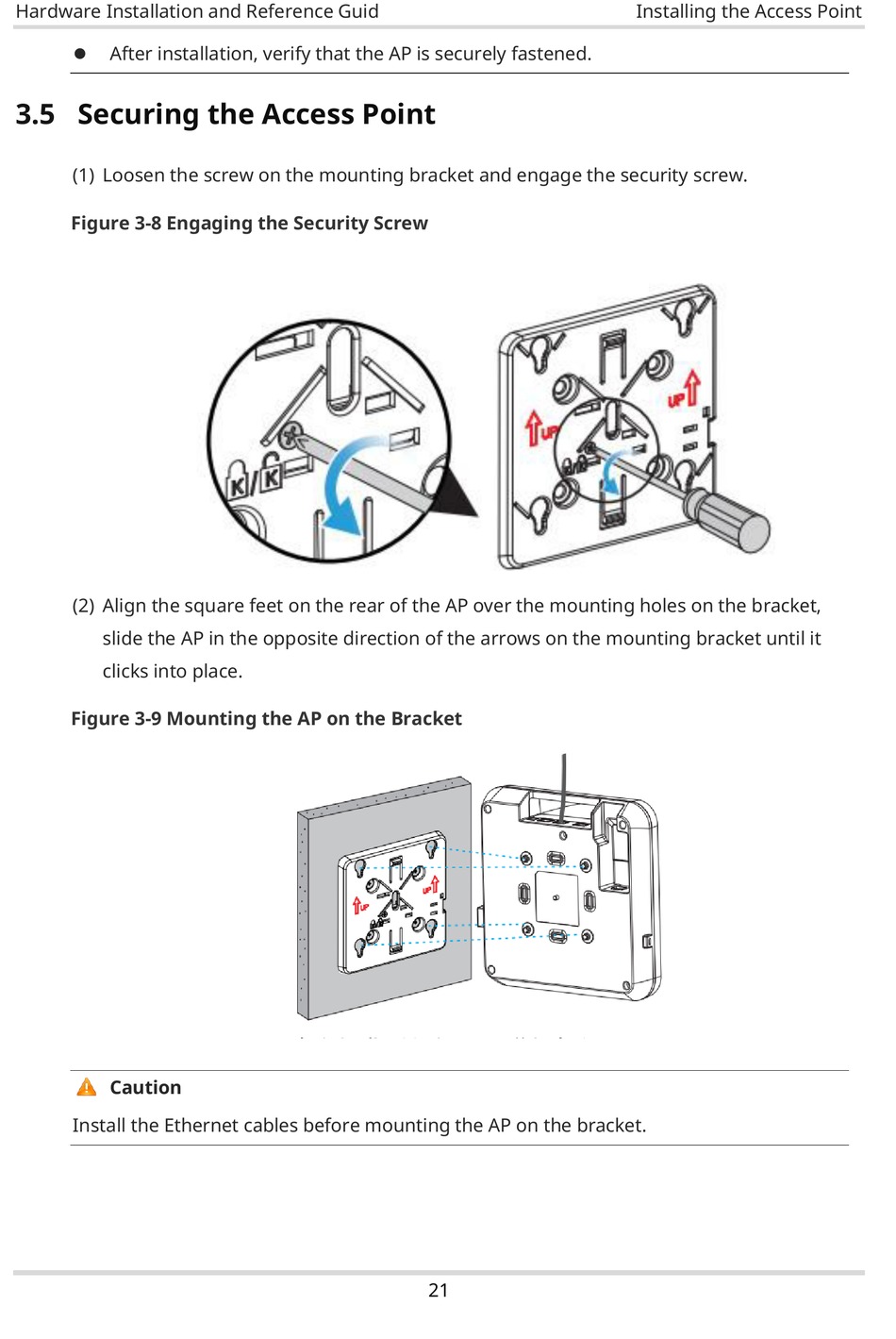

Securing the Access Point

(1) Loosen the screw on the mounting bracket and engage the security screw.
Figure 3-8 Engaging the Security Screw
(2) Align the square feet on the rear of the AP over the mounting holes on the bracket,
slide the AP in the opposite direction of the arrows on the mounting bracket until it
clicks into place.
Figure 3-9 Mounting the AP on the Bracket
Caution
Install the Ethernet cables before mounting the AP on the bracket.
21
Installing the Access Point
