Bearing Requirements; Ventilation Requirements; Space Requirement; Temperature/Humidity Requirements - Ruijie RG-AP810-I Hardware Installation And Reference Manual

Hardware Installation and Reference Guid

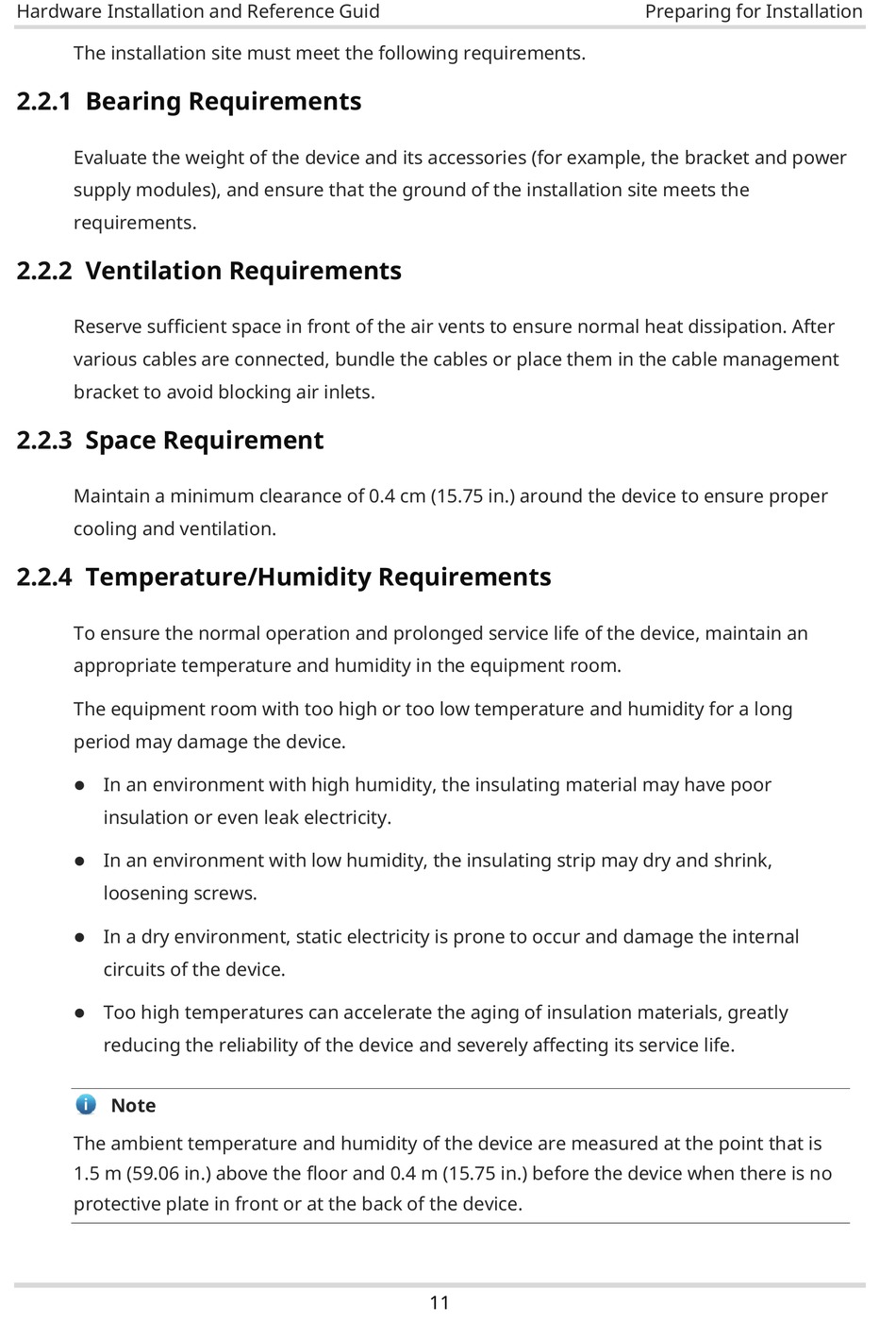

The installation site must meet the following requirements.
2.2.1

Bearing Requirements

Evaluate the weight of the device and its accessories (for example, the bracket and power
supply modules), and ensure that the ground of the installation site meets the
requirements.
2.2.2

Ventilation Requirements

Reserve sufficient space in front of the air vents to ensure normal heat dissipation. After
various cables are connected, bundle the cables or place them in the cable management
bracket to avoid blocking air inlets.
2.2.3

Space Requirement

Maintain a minimum clearance of 0.4 cm (15.75 in.) around the device to ensure proper
cooling and ventilation.
2.2.4

Temperature/Humidity Requirements

To ensure the normal operation and prolonged service life of the device, maintain an
appropriate temperature and humidity in the equipment room.
The equipment room with too high or too low temperature and humidity for a long
period may damage the device.
In an environment with high humidity, the insulating material may have poor

insulation or even leak electricity.
In an environment with low humidity, the insulating strip may dry and shrink,

loosening screws.
In a dry environment, static electricity is prone to occur and damage the internal

circuits of the device.
Too high temperatures can accelerate the aging of insulation materials, greatly

reducing the reliability of the device and severely affecting its service life.
Note
The ambient temperature and humidity of the device are measured at the point that is
1.5 m (59.06 in.) above the floor and 0.4 m (15.75 in.) before the device when there is no
protective plate in front or at the back of the device.
11
Preparing for Installation
