Hardware Installation and Reference Guide
distance between them must be greater than 30 mm.
All cable trays and their accessories shall be smooth and free from sharp edges.
○
Holes in metal, through which cables pass shall have smooth, well-rounded surfaces
○
or be protected with insulating bushings.
Use proper cable ties to bind cables together. Do not tie two or more cable ties to
○
bind cables.

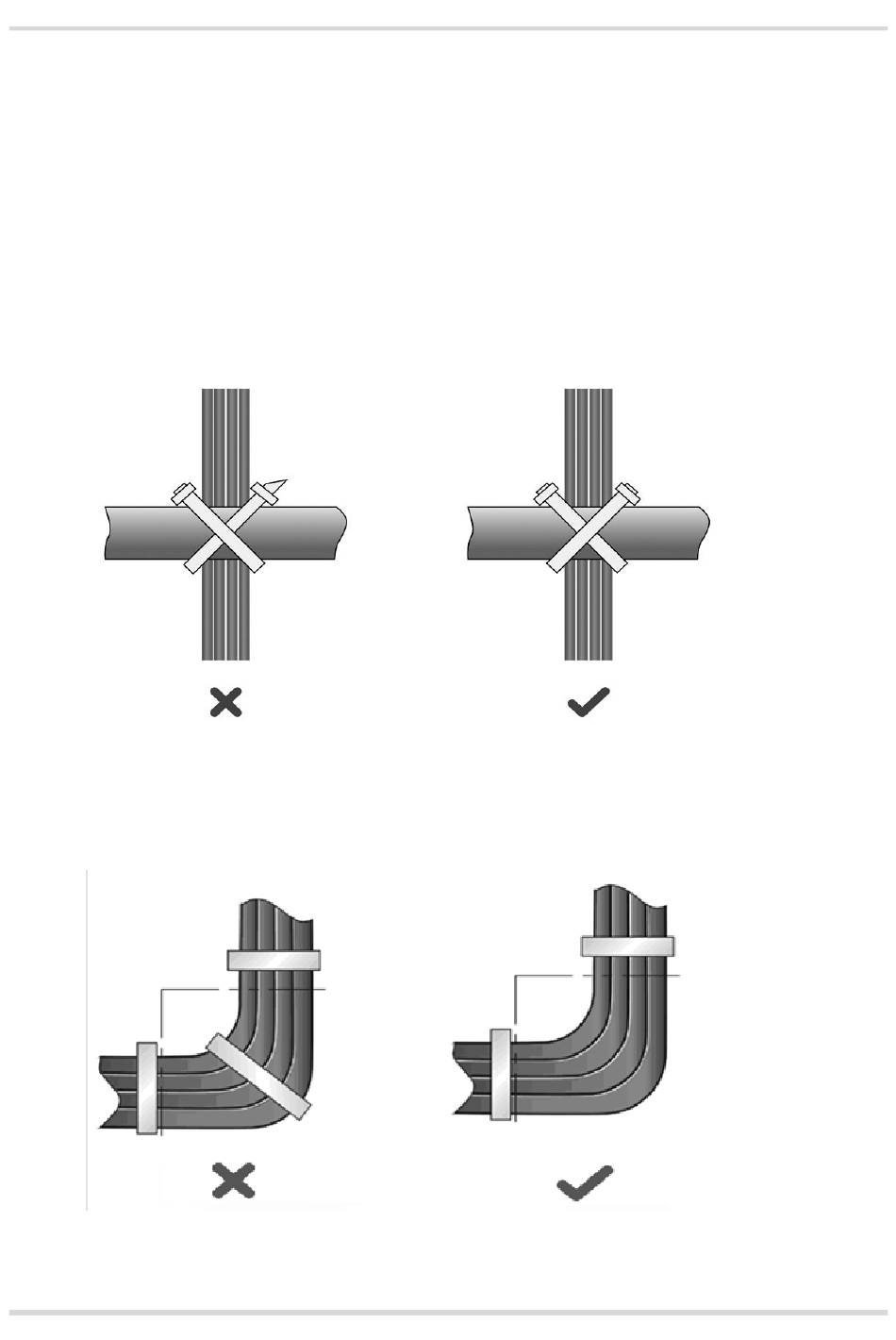

Cut off excess cable tie cleanly with no sharp edges after bundling cables, as shown
○
in Figure B-2.
Figure 7-5 Cutting off Excess Cable Tie
If cables are to be bent, bind them first but do not tie cable ties within the bend to
○
avoid stress on the cables, which may otherwise cause the wires inside to break, as
shown in
Figure 7-6 Do Not Tie Cable Ties within the Bend
Wrap up unnecessary or excess cables and bind them to the appropriate rack
○
position, where device operation is not affected and no damages occur to the device
.
Figure 7-6
