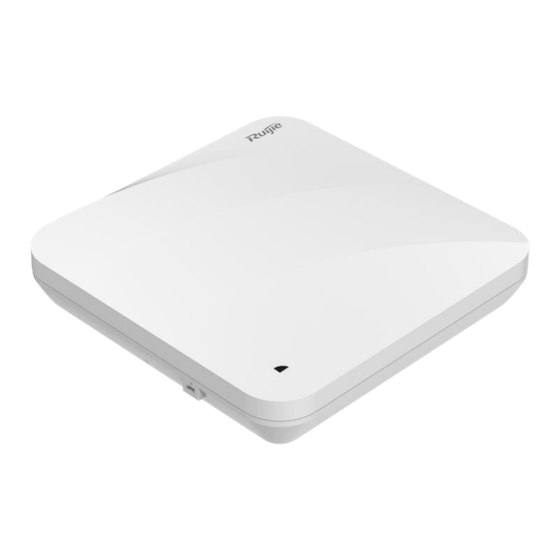

Ruijie RG-AP880-E Access Point
Hardware Installation and Reference Guide
Document Version: V1.2
Date: August 16, 2023
Copyright © 2023 Ruijie
Networks

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RG-AP880-E and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ruijie RG-AP880-E

Summary of Contents for Ruijie RG-AP880-E

  • Page 1 Ruijie RG-AP880-E Access Point Hardware Installation and Reference Guide Document Version: V1.2 Date: August 16, 2023 Copyright © 2023 Ruijie Networks...
  • Page 2 Due to product version upgrades or other reasons, the content of this document will be updated from time to time. Ruijie Networks reserves the right to modify the content of the document without any notice or prompt.

  • Page 3: Preface

    Preface Intended Audience This document is intended for: Network engineers  Technical support and servicing engineers  Network administrators  Technical Support Ruijie Networks Website: https://www.ruijienetworks.com/  Technical Support Website: https://ruijienetworks.com/support  Case Portal: https://caseportal.ruijienetworks.com  Community: https://community.ruijienetworks.com  Technical Support Email: service_rj@ruijienetworks.com ...
  • Page 4 The argument before the sign (&) can be input for &<1-n> consecutive 1- n times. Double slashes at the beginning of a line of code indicate a comment line. 2. Signs The signs used in this document are described as follows: Warning An alert that calls attention to important rules and information that if not understood or followed can result in data loss or equipment damage.

  • Page 5: Table Of Contents

    Contents Preface ..............................I 1 Product Introduction ........................1 1.1 Overview ........................... 1 1.2 Product Appearance ........................ 1 1.3 Package Contents ........................4 1.4 Technical Specifications ......................5 1.4.1 Dimensions and Weight....................5 1.4.2 Radio Specifications ..................... 6 1.4.3 Port Specifications ......................7 1.4.4 Power Supply and Consumption ................
  • Page 6 2.2.1 Bearing Requirements ....................16 2.2.2 Ventilation Requirements ..................16 2.2.3 Space Requirements ....................16 2.2.4 Temperature/Humidity Requirements ..............16 2.2.5 Cleanliness Requirements ..................17 2.2.6 Anti-interference Requirements ................18 2.2.7 Other Requirements ....................18 2.3 Tools ............................18 3 Installing the AP ..........................20 3.1 Installation Procedure ......................
  • Page 7 3.9.2 Bundling Steps ......................31 3.10 Checking After Installation ....................32 3.10.1 Checking the AP ....................... 32 3.10.2 Checking Cable Connections ................... 32 3.10.3 Checking the Power Supply ..................32 4 Verifying the Operating Status ..................... 33 4.1 Setting up the Configuration Environment ................. 33 4.2 Powering on the Device ......................
  • Page 8 6.2.3 LED Keeps Steady Red ....................36 6.2.4 LED Keeps Steady Green ................... 36 6.2.5 LED Keeps Blinking Blue at an Interval of 0.2s (in Fit Mode) ........36 6.2.6 LED Does Not Turn Steady Blue or Blinking Blue ............ 36 6.2.7 Radio Signal of the AP Cannot Be Found ..............

  • Page 9: Product Introduction

    Product Introduction Overview RG-AP880-E is a Wi-Fi 6E wireless access point (AP) released by Ruijie Networks for indoor scenarios in the higher education, government, general education, finance, and business sectors. It supports three radios, among which the 2.4 GHz band can provide a maximum data rate of 574 Mbps, the 5 GHz band can provide a maximum data rate of up to 2.402...
  • Page 10 Hardware Installation and Reference Guide Product Introduction Figure 1-1 Top View Figure 1-2 Front View...
  • Page 11 Hardware Installation and Reference Guide Product Introduction Table 1-1 Item Description System running status Figure 1-3 Side View Table 1-2 Button and Ports Item Description USB port Establishes a USB connection. DC power Connects to a 54 V DC power supply device to power an AP. connector Is an uplink service port for a wired Ethernet connection LAN1/PoE port...

  • Page 12: Package Contents

    Hardware Installation and Reference Guide Product Introduction Item Description settings. 5G SFP port Is an uplink service port for data transmission. Lock slot Connects to a security lock. Figure 1-4 Bottom View Package Contents Table 1-3 Package Contents Item Quantity Mounting bracket...

  • Page 13: Technical Specifications

    1.4.1 Dimensions and Weight Table 1-4 Dimensions and Weight Dimensions and RG-AP880-E Weight Physical Dimensions (W 230 mm × 230 mm × 51 mm (9.06 in. × 9.06 in. × 2.01 in.) x D x H) AP: 1.0 kg (2.20 lb.) Weight Mounting bracket: 0.1 kg (0.22 lb.)

  • Page 14: Radio Specifications

    Product Introduction 1.4.2 Radio Specifications Table 1-5 Radio Specifications Radio Specifications RG-AP880-E Tri-radio design Up to 8 spatial streams Radio design Radio 1: 2.4 GHz, 2 spatial streams: 2x2, MU-MIMO Radio 2: 5 GHz, 4 spatial streams: 2x2, MU-MIMO Radio 3: 6 GHz, 2 spatial streams: 4x4, MU-MIMO Radio 1: 802.11b/g/n/ax: 2.400 GHz to 2.4835 GHz...

  • Page 15: Port Specifications

    Hardware Installation and Reference Guide Product Introduction Radio Specifications RG-AP880-E IEEE 802.11b: BPSK, QPSK, and CCK IEEE 802.11a/g/n: BPSK, QPSK, 16-QAM, and 64-QAM Modulation IEEE 802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, and 256-QAM IEEE 802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, and 1024-QAM IEEE 802.11b: –96 dBm (1 Mbps), –93 dBm (5 Mbps), –89 dBm...

  • Page 16: Power Supply And Consumption

    One reset button 1.4.4 Power Supply and Consumption Table 1-7 Power Supply and Consumption Power Supply and RG-AP880-E Consumption Input power supply (1) DC power supply (DC input voltage and current: 54 V/1.1 A) (2) PoE/PoE+/PoE++ power supply (IEEE 802.3af/at/bt-compliant) External power Supported.

  • Page 17: Environment And Reliability

    1.4.5 Environment and Reliability Table 1-8 Standard Compliance Environment and RG-AP880-E Reliability Operating temperature: –10°C to +50°C (14°F to 122°F) Storage temperature: –40°C to +70°C (–40°F to +158°F) Temperature At a height between 3000 m (9842.52 ft.) and 5000 m (16404.20 ft.) above the sea level, every time the altitude increases by...
  • Page 18 Hardware Installation and Reference Guide Product Introduction Table 1-9 LED Status Frequenc Status Description The AP is not powered on. The AP is powered on, but the LED is manually turned off. Steady The software system of the AP is being initialized. green The system is running properly, but the uplink service port is in Steady red...

  • Page 19: Optical Module

    Hardware Installation and Reference Guide Product Introduction Table 1-10 Reset Button Button Operation Result Press the button for Reboot the device. less than 2s. Reset button Press and hold the Restore the device to default settings. button for more than 5s. Optical Module The peer device connected to the 2.5 Gbps optical port of the AP should provide an optical or copper port.
  • Page 20 Hardware Installation and Reference Guide Product Introduction Negotiated Rate Supported by the Port on the Peer Device Optical Optical Port Rate Module Rate 1 Gbps/2.5 Gbps/5 1 Gbps/10 of the AP 1 Gbps Gbps/10 Gbps/Auto Gbps/Auto 5 Gbps 6 Gbps Not supported 5 Gbps supported...
  • Page 21 Hardware Installation and Reference Guide Product Introduction Caution The 2.5 Gbps optical port of the AP does not support rate negotiation. If an O/E  conversion module is used, ensure the same access rate for the AP, O/E conversion module, and port on the peer device. The AP supports an uplink combo port.

  • Page 22: Preparing For Installation

    Hardware Installation and Reference Guide Preparing for Installation Preparing for Installation Safety Precautions Note To avoid personal injury and device damage, carefully read the safety precautions  before you install the device. The following safety precautions may not cover all possible dangers. ...

  • Page 23: Electric Safety

    Hardware Installation and Reference Guide Preparing for Installation 2.1.3 Electric Safety Warning Improper or incorrect electric operations may cause a fire, electric shock, and other  accidents, and lead to severe and fatal personal injury and device damage. Direct or indirect contact with high voltage or mains power supply via wet objects ...

  • Page 24: Bearing Requirements

    Hardware Installation and Reference Guide Preparing for Installation 2.2.1 Bearing Requirements Evaluate the weight of the device and its accessories (such as the bracket and power supply module), and ensure that the ground of the installation site meets the requirements. 2.2.2 Ventilation Requirements Reserve sufficient space in front of the air vents to ensure normal heat dissipation.

  • Page 25: Cleanliness Requirements

    Hardware Installation and Reference Guide Preparing for Installation 2.2.5 Cleanliness Requirements Dust poses a major threat to the running of the device. Indoor dust falling on the device may be adhered by static electricity, causing poor contact of metallic joints. Such electrostatic adherence may occur more easily when the relative humidity is low, not only affecting the service life of the device, but also causing communication faults.

  • Page 26: Anti-Interference Requirements

    Hardware Installation and Reference Guide Preparing for Installation Nitrogen dioxide (NO 0.04 0.15 Ammonia gas (NH 0.05 0.15 Chlorine gas (CI 0.01 Note Average refers to the average value of harmful gases measured in one week. Maximum refers to the upper limit of harmful gases measured in one week, and the maximum value cannot last for more than 30 minutes every day.
  • Page 27 Hardware Installation and Reference Guide Preparing for Installation Special Anti-static gloves, wire stripper, crimping pliers, RJ45 crimping pliers, and Tools wire cutter Meter Multimeter and bit error rate tester (BERT) Relevant PC, display, and keyboard Devices Note The device is delivered without a tool kit. The tool kit and cables are customer-supplied.

  • Page 28: Installing The Ap

    Hardware Installation and Reference Guide Installing the AP Installing the AP The RG-AP880-E must be installed and secured indoors. Caution Before installing the device, make sure that you have carefully read the requirements described in Chapter 2. Installation Procedure The installation steps are shown in the following figure.
  • Page 29 Hardware Installation and Reference Guide Installing the AP Confirm the following requirements before installation: The installation location provides sufficient space for heat dissipation.  The installation location meets the temperature and humidity requirements of the  device. The power supply and required current are available in the installation location. ...

  • Page 30: Precautions

    Hardware Installation and Reference Guide Installing the AP Precautions To ensure the normal operation and prolonged service life of the AP, observe the following safety precautions: Do not power on the device during installation.  Install the device in a well-ventilated location. ...
  • Page 31 Hardware Installation and Reference Guide Installing the AP Figure 3-3 Attaching the Mounting Bracket to the Ceiling (2) Align the square feet on the rear of the AP with the mounting holes on the bracket.
  • Page 32 Hardware Installation and Reference Guide Installing the AP Figure 3-4 Aligning the Square Feet with the Mounting Holes Install the Ethernet cable before mounting the AP on the bracket. DC power supply or PoE Caution Install the Ethernet cables before mounting the AP on the bracket. (3) Slide the AP onto the bracket in the opposite direction of the arrow on the mounting bracket until it clicks into place.

  • Page 33: Mounting On The Wall

    Hardware Installation and Reference Guide Installing the AP 3.4.2 Mounting on the Wall (1) Drill four 6.5 mm (0.26 in.) diameter holes in the wall and 53 mm (2.09 in.) apart, with the arrow on the mounting bracket facing up. Tap wall anchors into the holes, and drive screws through the mounting bracket into the anchors to secure the bracket.
  • Page 34 Hardware Installation and Reference Guide Installing the AP Figure 3-6 Attaching the Mounting Bracket to the Wall Diameter: 6.5 mm 53 mm (0.26 in.) (2.09 in.) 53 mm (2.09 in.) Wall anchor Screw (2) Align the square feet on the rear of the AP with the mounting holes on the bracket. Figure 3-7 Aligning the Square Feet with the Mounting Holes DC power supply...

  • Page 35: Installing A Security Lock

    Ruijie logo pointed upwards. Caution When mounting the AP on the wall, keep the Ruijie logo pointed upwards.  The square feet should fit easily into the mounting holes. Do not forcibly push the AP ...
  • Page 36 Hardware Installation and Reference Guide Installing the AP (2) Align the square feet on the rear of the AP over the mounting holes on the bracket, slide the AP in the opposite direction of the arrows on the mounting bracket until it clicks into place.

  • Page 37: Installing An Optical Module

    Hardware Installation and Reference Guide Installing the AP Figure 3-10 Mounting the AP on the Bracket Install the Ethernet cables before mounting the AP on the bracket. Align the square feet on the rear of the AP with the mounting holes on the bracket.

  • Page 38: Removing The Ap

    Hardware Installation and Reference Guide Installing the AP Figure 3-12 Inserting the Optical Fiber Removing the AP If the AP is installed on the ceiling, hold the AP in your hands and slide it sideways and away from the bracket in the LAN port direction. Figure 3-13 Removing a Ceiling-mounted AP Ceiling...

  • Page 39: Connecting Cables

    Hardware Installation and Reference Guide Installing the AP Figure 3-14 Removing a Wall-mounted AP Connecting Cables Connect twisted pairs with the LAN/PoE port on the AP. See 7.1 Connectors and Media for supported wiring of twisted pairs. Caution By default, the baud rate is set to 9600, data bit to 8, stop bit to 1, and parity check and flow control to none on the console port of the AP.

  • Page 40: Checking After Installation

    Hardware Installation and Reference Guide Installing the AP (3) Extend the twisted pairs under the AP and run in straight line. 3.10 Checking After Installation 3.10.1 Checking the AP Verify that the external power supply matches with the AP.  Verify that the AP is securely fastened.

  • Page 41: Verifying The Operating Status

    Hardware Installation and Reference Guide Verifying the Operating Status Verifying the Operating Status Setting up the Configuration Environment Use a DC or PoE to power the AP. When setting up the environment, pay attention to the following: Verify that the AP is properly connected to the power source. ...

  • Page 42: Monitoring And Maintenance

    If the AP works in fat mode, you can log in to the AP remotely for maintenance.  If the AP works in fit mode, you can use an AC to centrally manage and maintain the  Hardware Maintenance If the hardware is faulty, please contact Ruijie technical support.

  • Page 43: Troubleshooting

    Check whether the device is installed properly. Check whether the power supply is properly Check whether the LED is normal. Check whether cables are properly connected Contact Ruijie technical support to check whether hardware faults exist. Common Troubleshooting Procedures 6.2.1...

  • Page 44: Led Keeps Steady Red

    Hardware Installation and Reference Guide Troubleshooting 6.2.3 LED Keeps Steady Red The LED keeps steady red for a long time, indicating that the Ethernet port is not connected. Verify the Ethernet connection. 6.2.4 LED Keeps Steady Green The device performs initialization after power-on. During this period, the LED keeps steady green and does not turn normal blue until the initialization is completed.

  • Page 45: Appendix

    Hardware Installation and Reference Guide Appendix Appendix Connectors and Media 1000BASE-T/100BASE-TX/10BASE-T port  The 1000BASE-T/100BASE-TX/10BASE-T port is a 10/100/1000 Mbps auto-sensing port that supports auto MDI/MDIX Crossover. Compliant with IEEE 802.3ab, the 1000BASE-T port requires 100-ohm Category 5/5e UTP or STP with a maximum distance of 100 meters (328.08 ft.). The 1000BASE-T port requires all four pairs of wires be connected for data transmission.
  • Page 46 Hardware Installation and Reference Guide Appendix Table 7-2 100BASE-TX/10BASE-T Pin Assignments Socket Plug Input Receive Data+ Output Transmit Data+ Input Receive Data- Output Transmit Data- Output Transmit Data+ Input Receive Data+ Output Transmit Data- Input Receive Data- 4, 5, 7, 8 Not Used Not Used Table 7-3 shows wiring of straight-through and crossover cables for 100BASE-TX/10BASE-...

  • Page 47: Optical Modules And Specifications

    Hardware Installation and Reference Guide Appendix Optical Modules and Specifications We provide appropriate optical modules according to the port types. You can select the module to suit your specific needs. The optical module types and corresponding specifications are provided for reference. Table 7-4 SFP Modules and Specifications Transmit Power...

  • Page 48: Cabling Recommendations

    Hardware Installation and Reference Guide Appendix Cabling Recommendations During installation, route cable bundles upward or downward along the sides of the rack depending on the actual situation in the equipment room. All cable connectors should be placed at the bottom of the cabinet rather than be exposed outside of the cabinet. Power cords are routed beside the cabinet, and top cabling or bottom cabling is adopted according to the actual situation in the equipment room, such as the positions of the DC power distribution box, AC socket, or lightning protection box.
  • Page 49 Hardware Installation and Reference Guide Appendix Figure 7-1 Bundling Cables Twisting Bending Cables of different types (such as power cables, signal cables, and ground cables) ○ should be separated in cabling and bundling. Mixed bundling is not allowed. When they are close to each other, it is recommended to adopt crossover cabling. In the case of parallel cabling, maintain a minimum distance of 30 mm (1.18 in.) between power cords and signal cables.
  • Page 50 Hardware Installation and Reference Guide Appendix When cables need to be bent, bind them first but do not tie cable ties within the ○ bend. Otherwise, stress may be generated on the cables and cause the wires inside to break, as shown in Figure 7-3. Figure 7-3 Do Not Tie Cable Ties within the Bend Cables not to be assembled or remaining parts of cables should be folded and...
  • Page 51 Hardware Installation and Reference Guide Appendix Figure 7-4 Fastening Cable Lugs Note: ① Flat washer ③ Spring washer ② Nut ④ Flat washer Hard power cords should be fastened in the terminal connection area to prevent ○ stress on terminal connection and cable. Do not use self-tapping screws to fasten terminals.

  • Page 52: Dc Power Connector Specifications

    Hardware Installation and Reference Guide Appendix DC Power Connector Specifications Input voltage: 54 V DC  Rated current: 1.1 A  Table 7-6 Technical Specifications of the DC Power Connector Outer Inner Diameter Depth Polarity Diameter 2.1 mm (0.08 in.) 5.5 mm (0.22 in.) 9.5 mm (0.37 in.) Center positive Figure 7-5...
