Caution
The AP can be installed in any of four directions on the mounting bracket depending

on how you route the Ethernet cable.
The square feet should fit easily into the mounting slots. Do not forcibly push the AP

into the slots.
After installation, verify that the AP is securely fastened.

3.4.2

Wall Mounting

(1) Drill four 6.5 mm (0.26 in.) diameter holes in the wall and 53 mm (2.09 in.) apart, with
the arrow on the mounting bracket facing up. Tap wall anchors into the holes, and
drive screws through the mounting bracket into the anchors to secure the bracket.

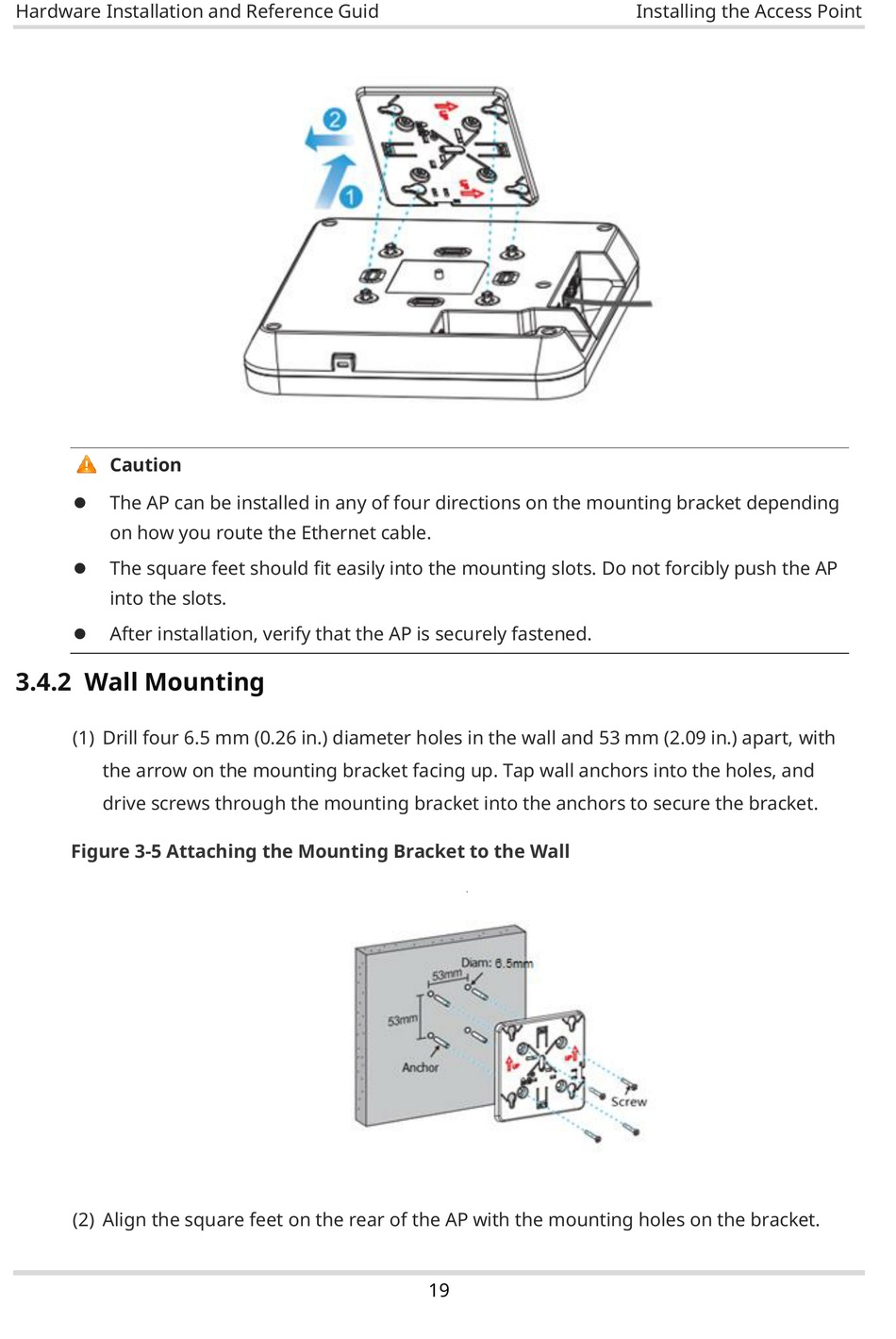

Figure 3-5 Attaching the Mounting Bracket to the Wall
(2) Align the square feet on the rear of the AP with the mounting holes on the bracket.
