Ruijie RG-AP810-I Hardware Installation And Reference Manual page 28

Hardware Installation and Reference Guid

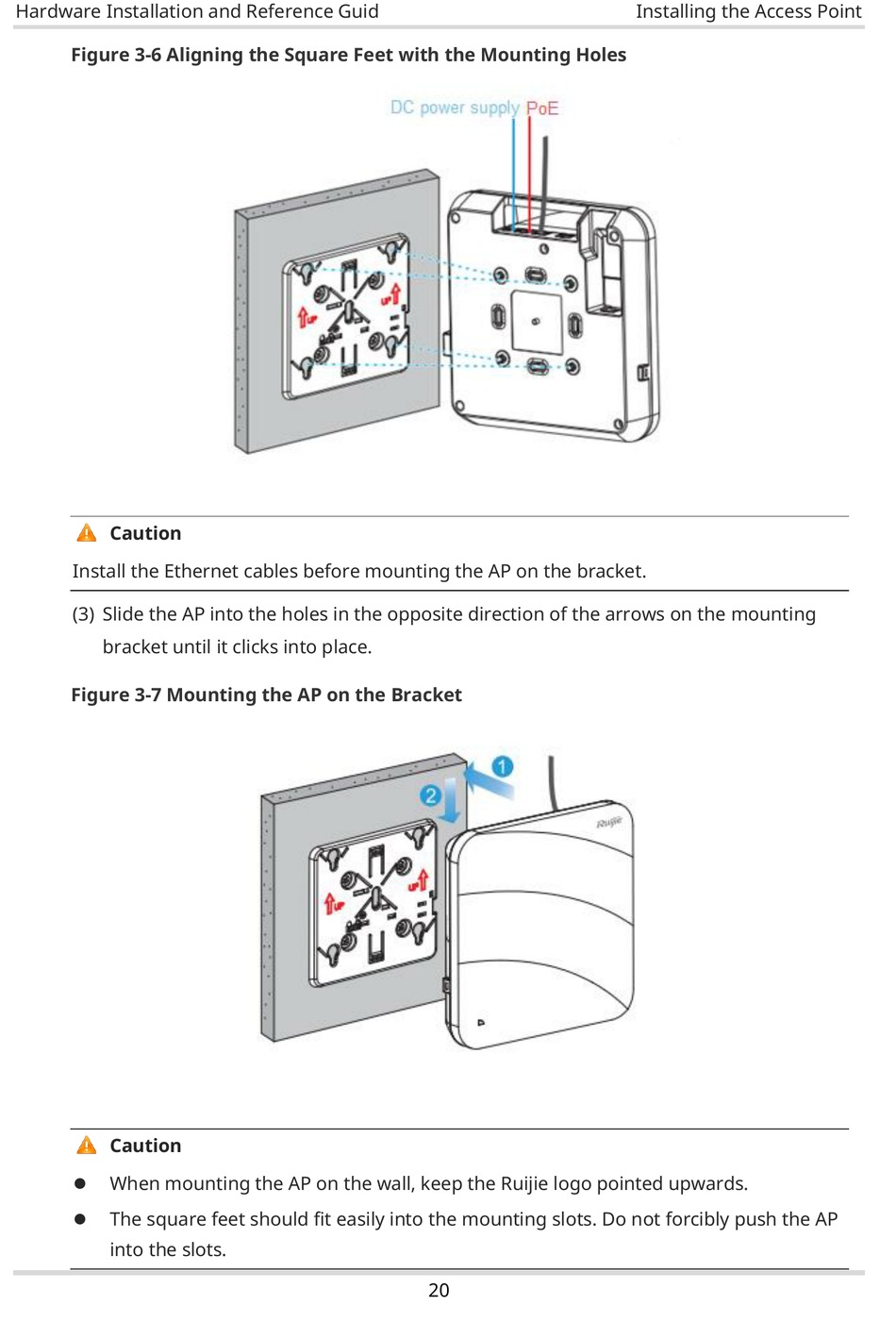

Figure 3-6 Aligning the Square Feet with the Mounting Holes
Caution
Install the Ethernet cables before mounting the AP on the bracket.
(3) Slide the AP into the holes in the opposite direction of the arrows on the mounting
bracket until it clicks into place.
Figure 3-7 Mounting the AP on the Bracket
Caution
When mounting the AP on the wall, keep the Ruijie logo pointed upwards.

The square feet should fit easily into the mounting slots. Do not forcibly push the AP

into the slots.
20
Installing the Access Point
