- Page 1 Ruijie RG-AP730-L Series Access Points Hardware Installation and Reference Guide V1.01...
- Page 2 Ruijie Networks reserves all copyrights of this document. Any reproduction, excerption, backup, modification, transmission, translation or commercial use of this document or any portion of this document, in any form or by any means, without the prior written consent of Ruijie Networks is prohibited. Exemption statement This document is provided “as is”.
- Page 3 It is intended for the users who have some experience in installing and maintaining network hardware. At the same time, it is assumed that the users are already familiar with the related terms and concepts. Obtaining Technical Assistance Ruijie Networks Website: https://www.ruijienetworks.com/ Technical Support Website: https://ruijienetworks.com/support...
-
Page 4: Product Overview
· 1 Product Overview Featuring leading 802.11ac Wave2, Ruijie RG-AP730-L supports 2.4G+5G+5G working mode and concurrently 802.11ac Wave 2, 802.11ac Wave 1 and 802.11n. It delivers up to 400Mbps@2.4G (802.11b/g/n) and 1.73Gbps@5G (802.11a/n/ac). The overall tri-radio, dual-band performance speeds up to 2.13Gbps per device, totally eliminating Gigabit wireless bottlenecks. -

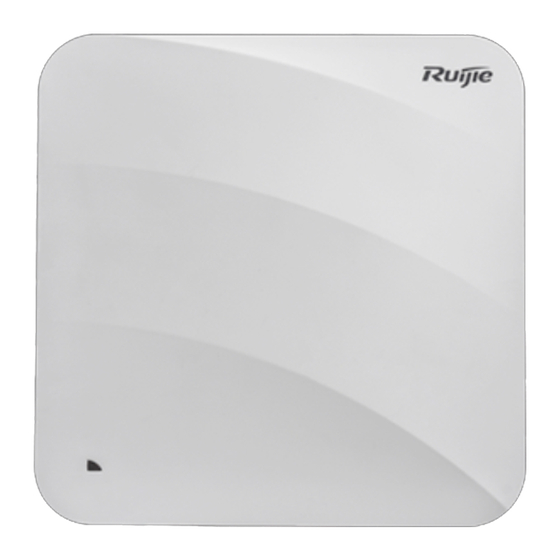

Page 5: Product Image
· (W x D x H) (9.06in x 9.06in x 1.85in) Weight 1.3 kg (Host and bracket) Service Ports One 10/100/1000BASE-T Ethernet port (PoE-capable) One Console port Management Ports Button One Reset button Anti-theft Locks Support 1 LED (red, green, blue, orange, and blinking modes, blinking mode for smart device access, and the indicator can be switched off to silent mode) Adapter: DC 48V/0.6A (optional) Power Supply... -
Page 6: Led Indicators
· Note 1. LED indicator 4. Console port 2. Laptop lock 5. LAN1/PoE port 3. Reset button 6. 48V DC power supply input port 1.3 LED Indicators Fit AP State Frequency Meaning The AP is NOT receiving power. Or the AP is in Do Not Disturb mode, which can be disabled by software. -
Page 7: Power Sources
The AP can be powered either with a DC power adapter or through Power over Ethernet (PoE+). The AP requires Ruijie power adapters (If needed, you can buy them from Ruijie). To use a PoE+ device, make sure it supports the IEEE 802.3at PoE standard. -
Page 8: Preparing For Installation
· 2 Preparing for Installation To prevent device damage and bodily injury, please read carefully the safety recommendations described in this chapter. The recommendations do not cover all possible hazardous situations. 2.1 Installation The AP must be installed indoors. To ensure its normal operation, the installation site must meet the following requirements. -
Page 9: Temperature And Humidity
· Be sure to make a careful check before you shut down the power supply. Do not place the device in a damp/wet location. Do not let any liquid enter the chassis Keep the AP far away from the grounding or lightning protection devices of power equipment. ... -
Page 10: Power Supply
The DC input power should be greater than the power actually consumed by the system. The input power for the RG-AP730-L should be greater than 25.5 W. Please use Ruijie recommended power adapters. Please use Ruijie certified PoE injectors. 2.8 Installation Tools... -
Page 11: Unpacking The Access Point
· 2.9 Unpacking the Access Point Package Contents Verify that all parts are installed and debugged. Screws Mounting brackets Items Product quick installation guide Packing list The above listed items are for general situations, which may vary in the actual shipment. The purchase order shall prevail in any case. -
Page 12: Installing The Access Point
· 3 Installing the Access Point The RG-AP730-L series must be fixed and installed indoors. Before installing the AP, make sure you have carefully read the requirements described in Chapter 2. 3.1 Installation Flowchart 3.2 Before You Begin Before you install the AP, verify that: ... - Page 13 · Disconnect the device before cleaning it. Do not wipe the device with a damp cloth. Do not wash the device with liquid. Do not open the enclosure when the AP is working. Fasten the device tightly. 3.4 Installing the Access Point ...
- Page 14 · Slide the AP onto the bracket in the reverse direction against the arrow on the mounting bracket until it clicks into place. See Figure 3-3. Figure 3-3 Mounting the AP on the Bracket The AP can be installed in any of four directions on the mounting bracket depending on how you route your Ethernet cable.
-
Page 15: Optional) Securing The Access Point
Figure 3-6 Mounting the AP on the Bracket For mounting on wall, make sure the “Ruijie” logo is in the upper right corner. The square feet should fit easily into the mounting slots. Do not forcibly push the AP into the slots. -
Page 16: Removing The Access Point
3.6 Removing the Access Point If the hidden lock is enabled, attach the front part of the key to the edge of the mounting bracket (keep the Ruijie logo of the key toward the top panel of the AP). Slide the key along with the four edges of the mounting bracket, and attempt to insert the key to the keyhole (only one marked keyhole can be inserted). - Page 17 · If the AP is installed on the wall, hold the AP in your hands and push it upward and away from the bracket in the LAN port direction. Figure 3-10 Removing the Wall-Mount AP If the AP is installed on the ceiling, hold the AP in your hands and push it sideward. And attempt to push it along the direction of the LAN port.
-
Page 18: Connecting Cables
By default, baud rate is set to 9600, data bit 8, parity none, stop bits 1 and flow control none on the console port of the AP. The console port is used only when you want to configure the AP manually. Ruijie recommends that you do not use Ethernet cables with protective sleeves as they could make installation of Ethernet cables difficult. -
Page 19: System Debugging
· 4 System Debugging 4.1 Setting up a Debugging Environment Use a power adapter or PoE to power the AP. Setting up the Environment Verify that the AP is properly connected to the power source. Connect the AP to an AC through a twisted pair cable. ... -
Page 20: Monitoring And Maintenance
· 5 Monitoring and Maintenance 5.1 Monitoring You can observe the LED to monitor the AP in operation. CLI Commands You can run related commands on the command line interface (CLI) on the AC to remotely monitor the configurations and status of the AP. -
Page 21: Troubleshooting Flowchart
· 6 Troubleshooting 6.1 Troubleshooting Flowchart 6.2 Troubleshooting LED does not light up after the AP is powered on If you use PoE power supply, verify that the power source is IEEE 802.11af compliant, and then verify that the cable is connected properly. - Page 22 · Follow the above-mentioned two steps. Verify that the AP is configured correctly. Adjust the angle of antennas. Move the client device to adjust the distance between the client and the AP. LED keeps blinking red The LED stays blinking red for a long time, indicating the Ethernet port is not connected. Verify the Ethernet connection. LED keeps blinking green The AP performs initialization after power on.
-
Page 23: Appendix A: Connectors And Media
· Appendix A: Connectors and Media 1000BASE-T/100BASE-TX/10BASE-T The 1000BASE-T/100BASE-TX/10BASE-T is a 10/100/1000 Mbps auto-negotiation port that supports auto MDI/MDIX. Compliant with IEEE 802.3ab, 1000BASE-T requires Category 5e 100-ohm UTP or STP (STP is recommended) with a maximum distance of 100 meters (328 feet). 1000BASE-T requires all four pairs of wires be connected for data transmission, as shown in Figure A-1. -
Page 24: Appendix B: Cabling Recommendations
· Appendix B: Cabling Recommendations During installation, route cable bundles upward or downward along the sides of the rack depending on the actual situation in the equipment room. All cable connectors should be placed at the bottom of the cabinet rather than be exposed outside of the cabinet. - Page 25 · If cables are to be bent, bind them first but do not tie cable ties within the bend to avoid stress on the cables, which may otherwise cause the wires inside to break, as shown in Figure B-3. Figure B-3 Do Not Tie Cable Ties within the Bend ...
- Page 26 · 3. Spring washer 1. Flat washer Note 4. Flat washer 2. Nut When using a stiff cable, fix it near the cable lug to avoid stress on the lug and cable. Do not use self-tapping screws to fasten terminals. ...
