Hardware Installation and Reference Guide
The 1000BASE-T/100BASE-TX/10BASE-T is a 10/100/1000 Mbps auto-negotiation port that
supports auto MDI/MDIX.
Compliant with IEEE 802.3ab, 1000BASE-T requires Category 5e 100-ohm UTP or STP (STP
is recommended) with a maximum distance of 100 meters (328 feet).

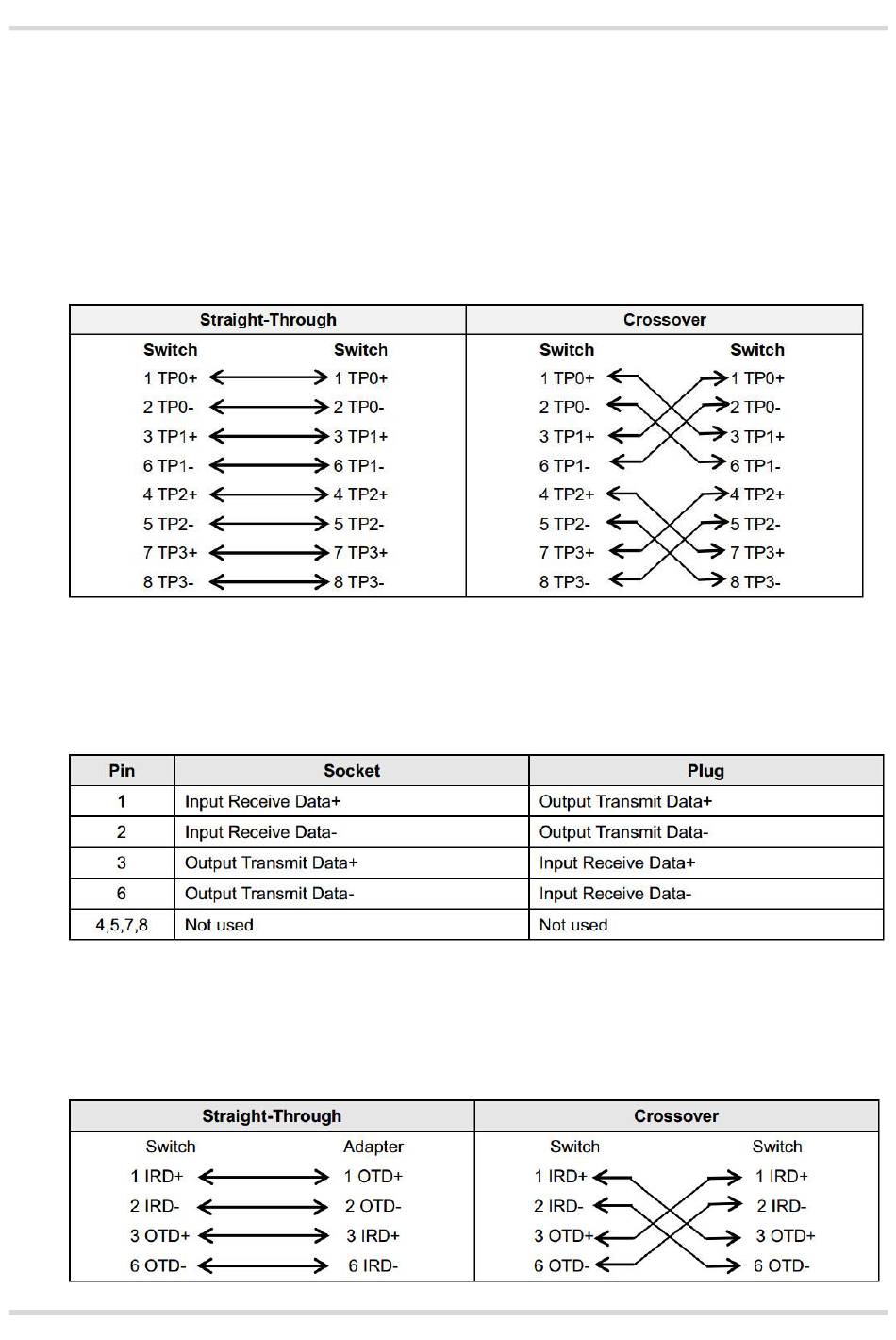

1000BASE-T requires all four pairs of wires be connected for data transmission, as shown
in .
Figure 7-1
Figure 7-1 1000BASE-T Connection
10BASE-T uses Category 3, 4, 5 100-ohm UTP/STP and 1000BASE-T uses Category 5 100-
ohm UTP/STP for connections. Both support a maximum length of 100 meters.
shows 100BASE-TX/10BASE-T pin assignments.
Figure 7-2 100BASE-TX/10BASE-T Pin Assignments
shows wiring of straight-through and crossover cables for 100BASE-TX/10BASE-
Figure 7-3
T.
Figure 7-3 100BASE-TX/10BASE-T Connection
29
Appendix
Figure 7-2
