Recovery System
Functional Overview
See Figure 10. Dirt and water are lifted off the floor into the recovery tank by airflow created by two three-stage 24V
vacuum motors. Note that in the scrub mode only one vacuum motor will run. In the Extract mode both vacuum motors
will run due to the increased airflow required to remove the wastewater from carpeting through the extraction/vacuum
shoes.

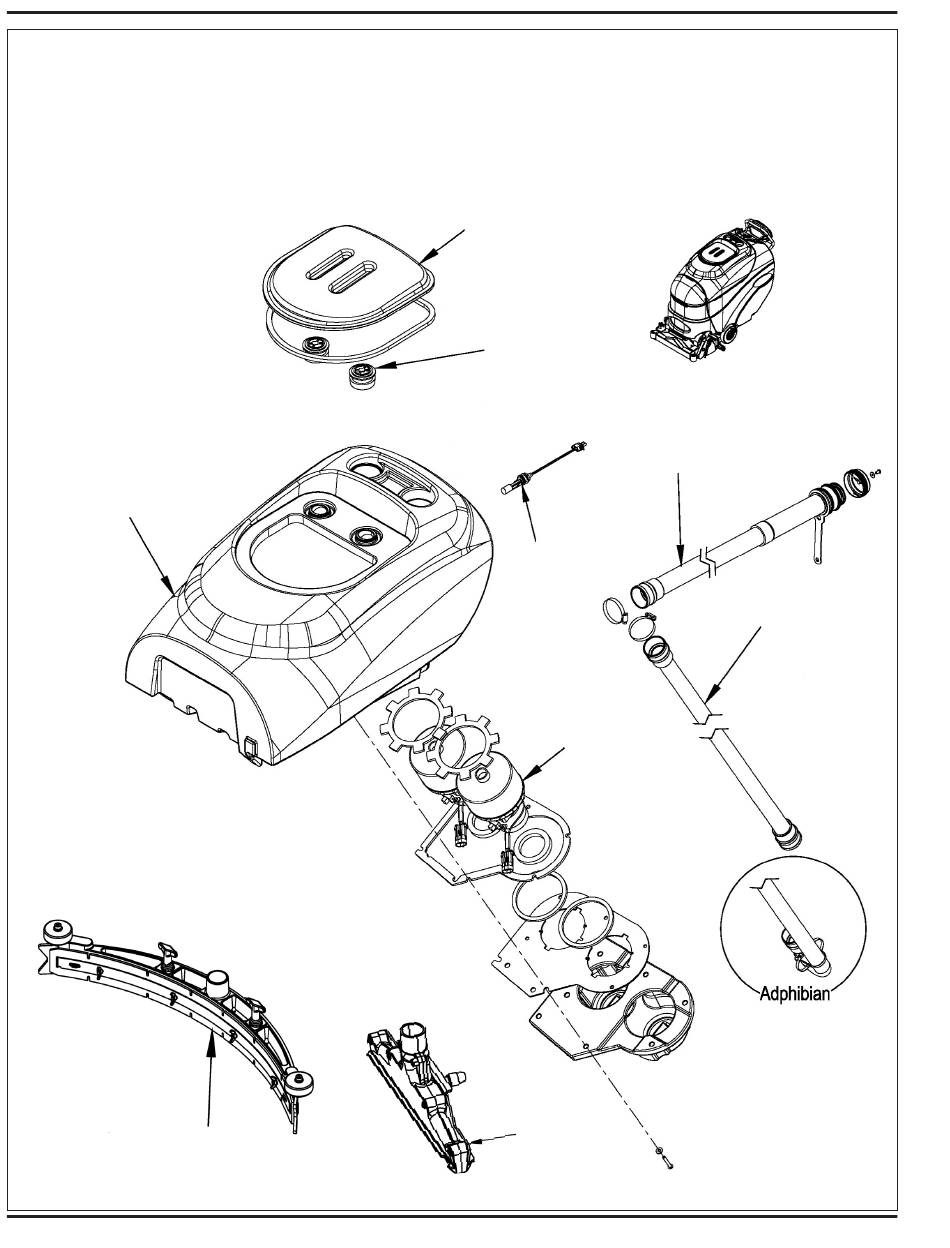

Figure 10
Recovery
Tank
Squeegee
(Adphibian/AX 651
Multi EDS only)
46 - Form No. 56043116 - Adphibian™/AX 651 Multi EDS/AquaPLUS™
Recovery
Tank Cover
Fan Inlet
Screen
Drainhose
Float
Switch
Vacuum
Motor
Extraction/
Vacuum
Shoe
Vacuum
Hose
Assembly
