Caster Wheel Removal

Warning!

1. Drain both the solution and recovery tanks.

2. Remove the squeegee assembly and have the scrub deck in the up (stored) position with the scrub brushes

installed.

3. See Figure 19. Place Wood Blocking (G) in front of the drive wheels to prevent the machine from rolling.

4. Jack the machine in the location shown until the caster wheel is approximately 1" off the ground.

5. Place Blocking (H) under the chassis tab as shown.

6. Remove the four Screws, Nuts and Washers (I) then remove the Caster Assembly (J).

7. Reinstall in reverse order.

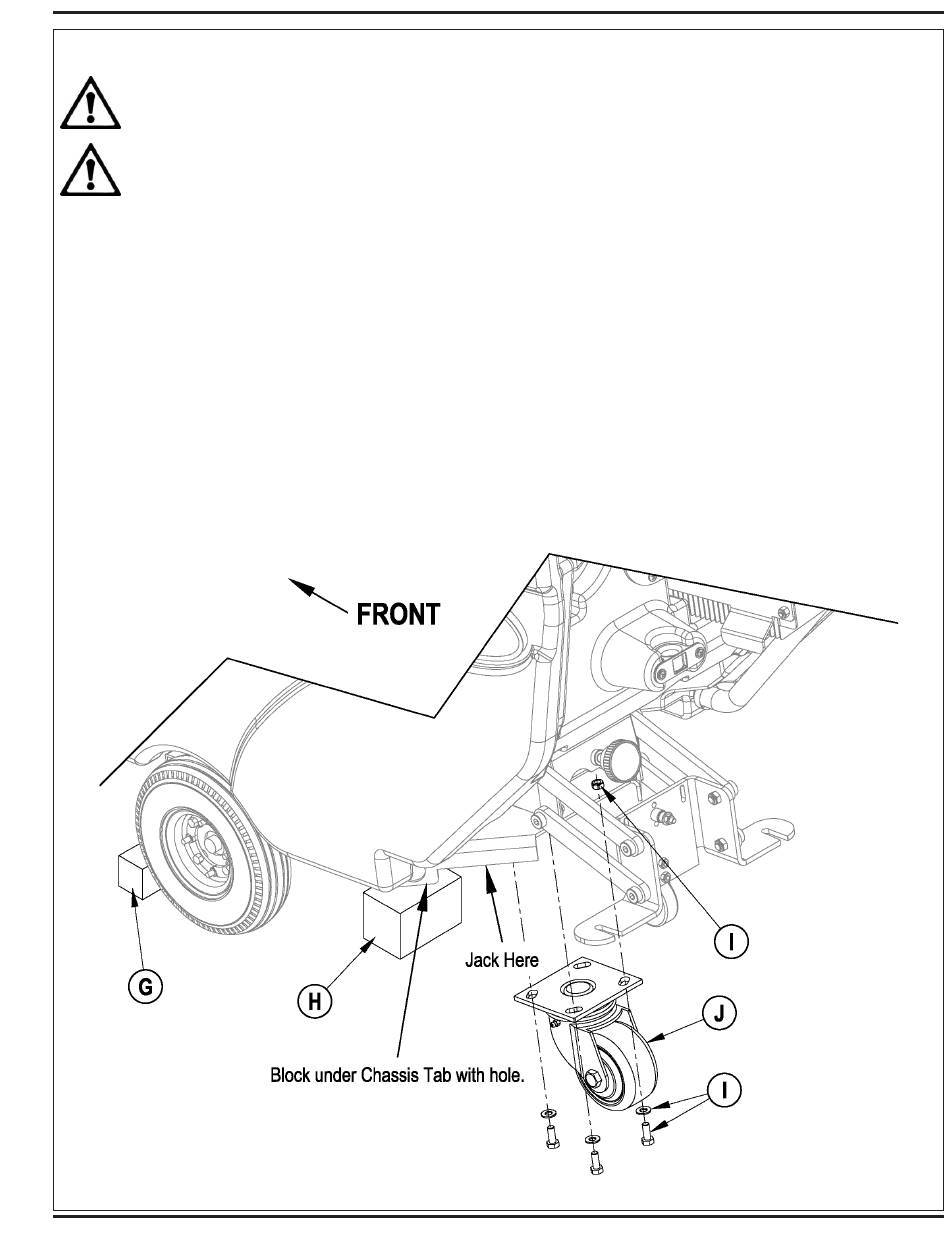

Figure 19

Disconnect the battery pack connector before servicing machine.

Never work under machine without safety stands or blocking to support the machine.

Form No. 56043116 - Adphibian™/AX 651 Multi EDS/AquaPLUS™ - 59
