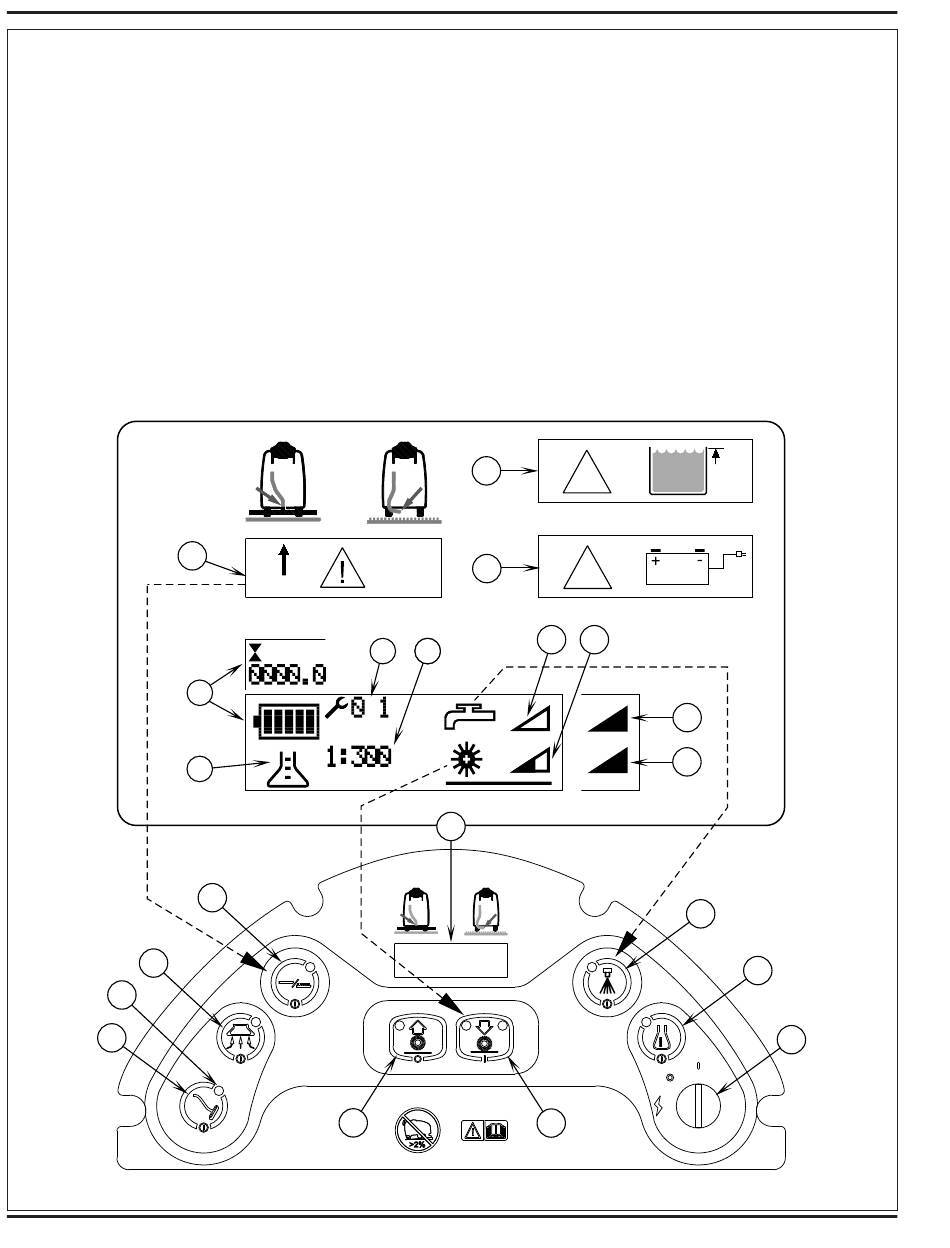

Control Panel - Adphibian/AX 651 Multi EDS - Scrub Mode

A Key Switch (Main Power)
B Detergent System
C Solution Pre-spray Switch
D Display Panel
D1 AXP Indicator
D2 Hour Meter/Battery Indicator
D3 Fault Indicator
D4 AXP Detergent Ratio Indicator
D9 Recovery Tank Full Indicator
D10 Battery Low Indicator
D12 Scrub Mode Indicator
D12
E
F
G
16 - Form No. 56043116 - Adphibian™/AX 651 Multi EDS/AquaPLUS™
SCRUB
D2
D1
K
H
D13 Solution OFF Indicator
D14 Light Scrub Pressure Indicator
D15 Solution Active Indicator
D16 Heavy Scrub Pressure Indicator
E Vacuum Switch
F Speed Control Fault Code Indicator
G Wand Switch
H Scrub OFF Switch (red)
J Scrub ON Switch (green)
K Floor Mode Switch (orange)
D9
D10
D13
D3 D4 D4
D
J
!
!
D14
D15
D16
C
B
A
