Know Your Machine

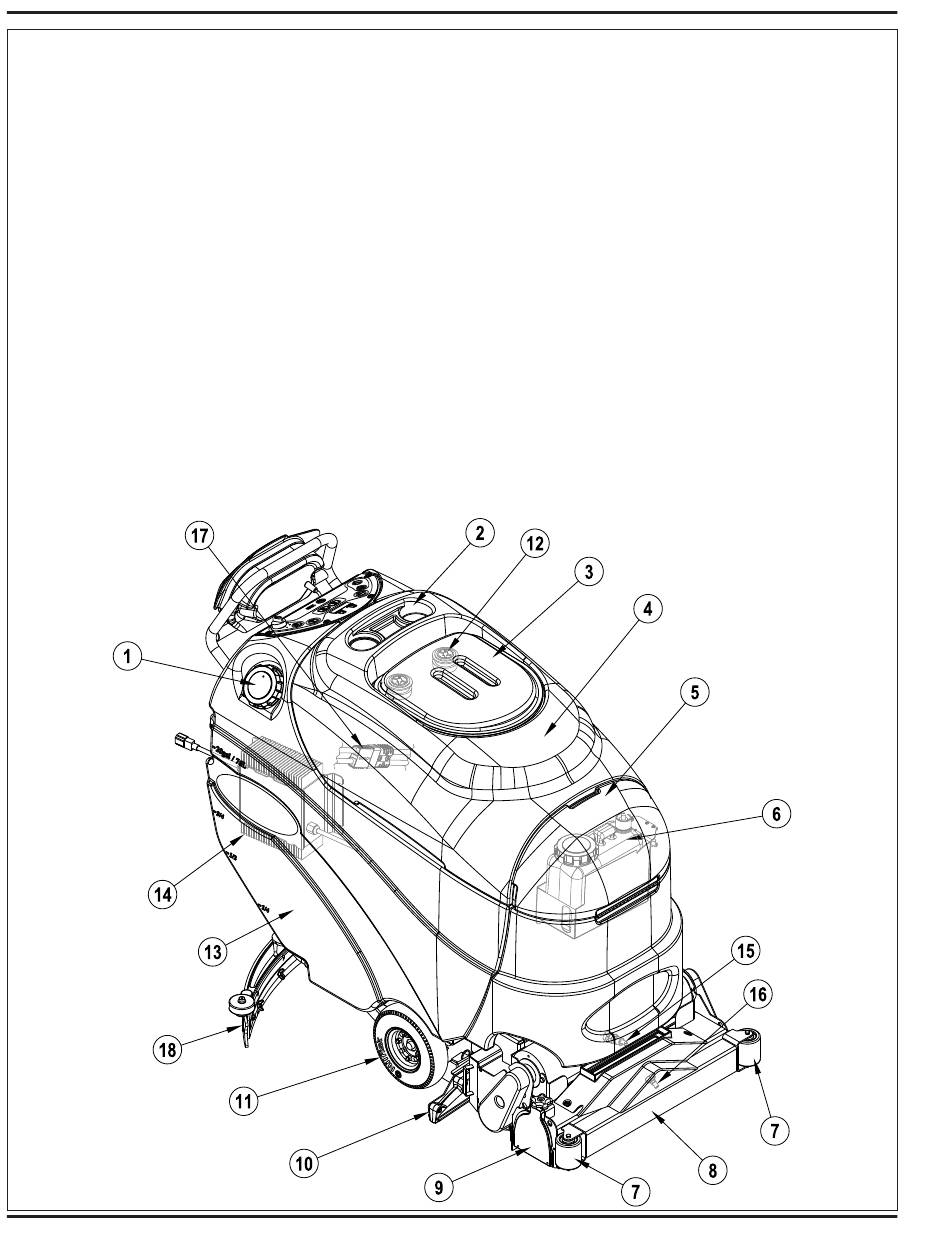

Major Components
As you read this manual, you will occasionally run across a bold number or letter in parentheses - example: (2). These
numbers refer to an item shown on this page unless otherwise noted. Refer back to this page whenever necessary to
pinpoint the location of an item mentioned in the text. Note: Detailed explanations of each item illustrated on the next
three pages are provided later in this section.
1
Solution Fill Cap
2
Bottle Holders
3
Recovery Tank Dome Lid
4
Recovery Tank
5
Detergent (AXP) Cartridge Access Cover
6
Detergent (AXP) Cartridge (AXP models only)
7
Scrub Deck Rollers
8
Scrub Deck
9
Idler Assembly
14 - Form No. 56043116 - Adphibian™/AX 651 Multi EDS/AquaPLUS™
10
Extraction/Vacuum Shoes
11
Drive Wheel
12
Vacuum Motor Inlet Screens
13
Solution Tank
14
Onboard Battery Charger
15
LIFT Low Moisture Spray Nozzle
16
Restoration Spray Nozzle
17
Battery Pack Connector
18
Squeegee Assembly (Adphibian/AX 651 only)
Figure 3
