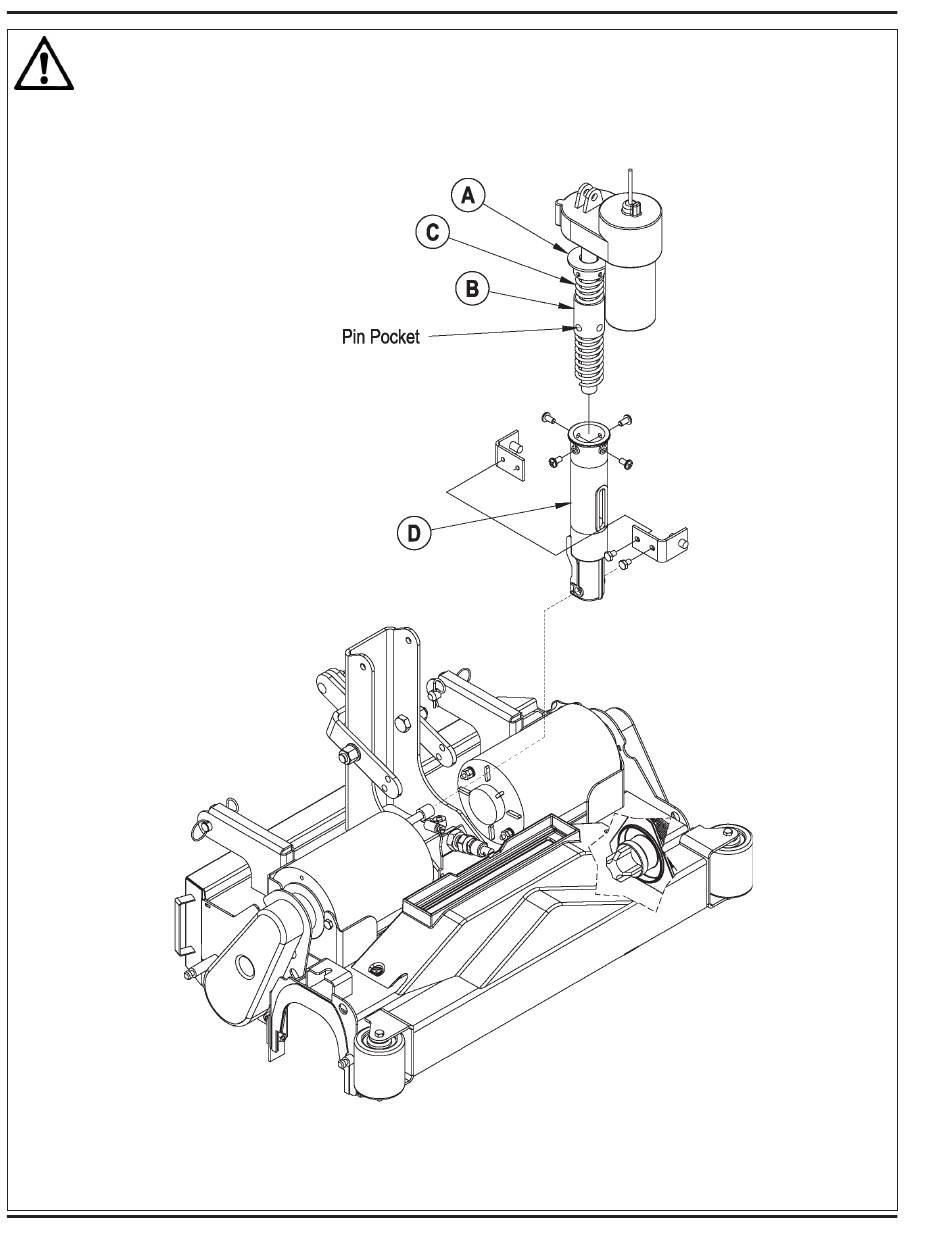

Service Tip: See Figure 33. Note the correct orientation of the Spring Housing (D) when installing the
complete motor assembly. Run the spring housing assembly to the IN (retracted) position for
before you install it in the machine.
Figure 33
78 - Form No. 56043116 - Adphibian™/AX 651 Multi EDS/AquaPLUS™
