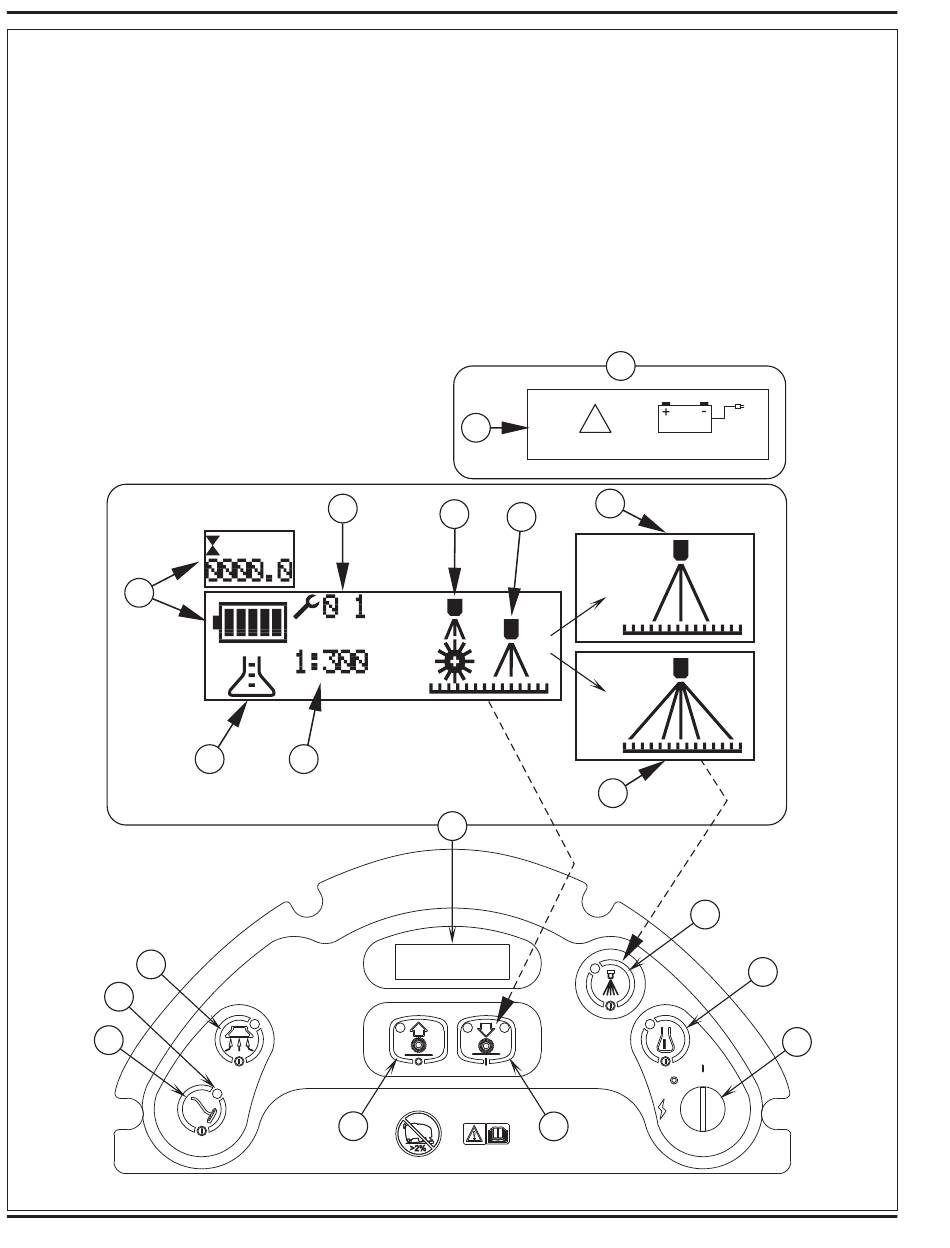

Control Panel - AquaPLUS

A Key Switch (Main Power)
B Detergent System
C Solution Pre-spray Switch
D Display Panel
D1 AXP Indicator
D2 Hour Meter/Battery Indicator
D3 Fault Indicator
D4 AXP Detergent Ratio Indicator
D5 Maintenance Extract Mode Indicator
D2
E
F
G
24 - Form No. 56043116 - Adphibian™/AX 651 Multi EDS/AquaPLUS™
D3
D1 D4
H
D6 Restoration Extract Mode Indicator
D7 Fast Pre-spray Mode
D8 Heavy Pre-spray Mode
D9 Battery Low Indicator
E Vacuum Switch
F Speed Control Fault Code Indicator
G Wand Switch
H Scrub OFF Switch (red)
J Scrub ON Switch (green)
D
!
D9
D7
D5
D6
D8
D
J
C
B
A
