Drive Motor Transaxle Removal (continued)

1. See Figure 24. Jack the front of the machine from this location until the drive wheels are approximately 1" off the

ground.

2. Remove the eight Locknuts (A) and then remove the two Drive Wheels (B) from the transaxle.

3. Disconnect the drive motor wiring connector.

4. Remove the four Motor Mount Bolts and Nuts (C) and carefully slide the Motor Transaxle (D) away from the

machine.

5. Reinstall the transaxle by following the above steps in reverse order.

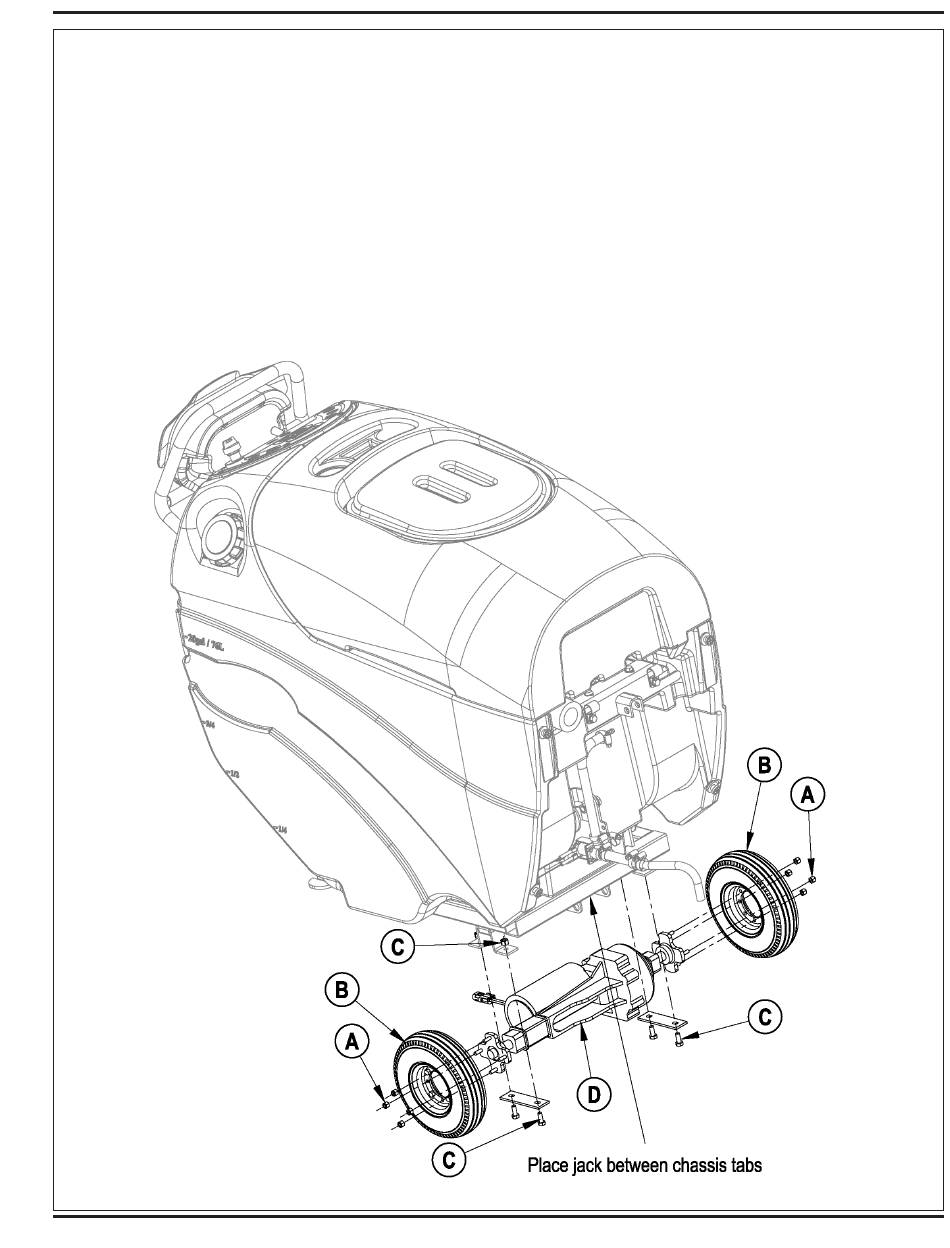

Figure 24
