Nilfisk-Advance BRX 700 Service Manual

Hide thumbs Also See for BRX 700:
Table of Contents

Advertisement

Quick Links

AquaRide
BRX 700

SERVICE MANUAL

Advance MODEL 56314009
Nilfi sk MODEL 56314019
SE
™
5/03 revised 11/05 Form Number 56043089

Advertisement

Table of Contents
loading

Related Manuals for Nilfisk-Advance BRX 700

Summary of Contents for Nilfisk-Advance BRX 700

  • Page 1: Service Manual

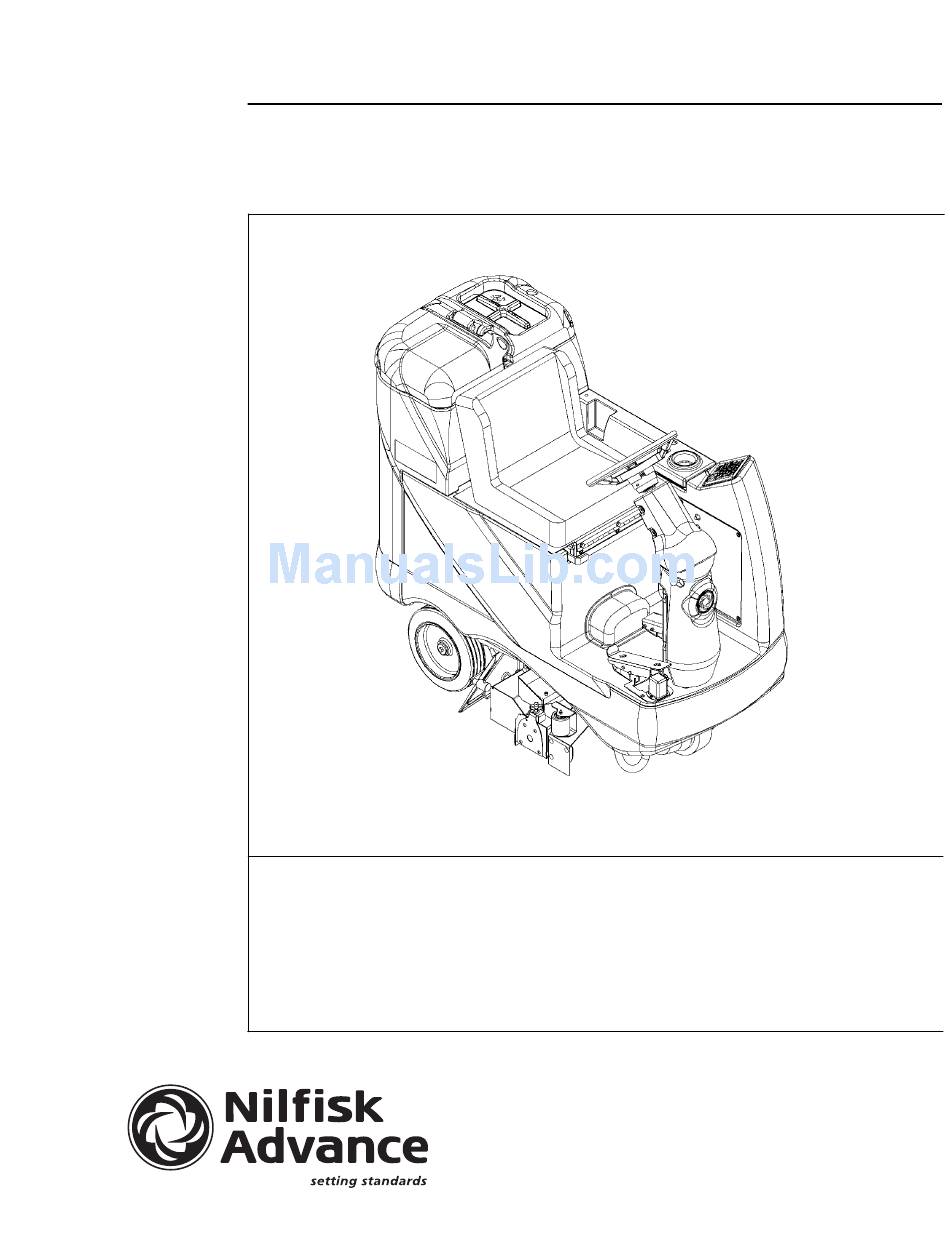

    AquaRide ™ BRX 700 SERVICE MANUAL Advance MODEL 56314009 Nilfi sk MODEL 56314019 5/03 revised 11/05 Form Number 56043089...

  • Page 2: Table Of Contents

    VACUUM MOTOR(S) REMOVAL ............................. 45 RECOVERY TANK REMOVAL ............................45 RECOVERY TANK BLADDER REMOVAL ........................46 RECOVERY TANK BLADDER INSTALLATION ........................ 46 VACUUM SHOES REMOVAL FOR MAINTENANCE ....................... 48 72 - FORM NO. 56043089 / AquaRide / BRX 700 ™...
  • Page 3 WIRING SCHEMATIC (after SN chart) ..........................75 ELECTRICAL COMPONENT LOCATION (after SN chart) ....................76 Note: All references to right, left, front, or rear in this manual are as seen from the operator’s stand-point. FORM NO. 56043089 / AquaRide / BRX 700 - 1 ™...

  • Page 4: General Information

    Repairs, when required, should be performed by your Authorized Nilfi sk-Advance Service Center, who employs factory trained service personnel, and maintains an inventory of Nilfi sk-Advance original replacement parts and accessories. Call the NILFISK-ADVANCE DEALER named below for repair parts or service. Please specify the Model and Serial Number when discussing your machine.

  • Page 5: Safety Instructions

    The batteries must be removed from the machine before the machine is scrapped. The disposal of the batteries should be safely done in accordance with your local environmental regulations. SAVE THESE INSTRUCTIONS FORM NO. 56043089 / AquaRide / BRX 700 - 3 ™...

  • Page 6: Specifications & Maintenance

    5.75 in. (14.6cm) Length 27 in. (68.6cm) Scrub Brush Motor (1) AquaRide .75 HP / 560 watts Scrub Brush Motors (2) AquaRide SE/BRX 700 .75 HP / 560 watts Scrub Brush Speed 900 RPM Minimum Aisle Turn Width 63 in. (160cm) Machine Net Weight* 625 lbs.
  • Page 7 SPECIFICATIONS FORM NO. 56043089 / AquaRide / BRX 700 - 5 ™...

  • Page 8: Maintenance Schedule

    Check the brush(s) daily. Remove any built-up string, hair or carpet fi bers. Check the bristle length. Have a service technician change the brush(s) when the brush bristles are worn to 1 inch (25mm). 6 - FORM NO. 56043089 / AquaRide / BRX 700 ™...

  • Page 9: Pm Checklist

    Vacuum Float Ball & Cage Assembly Clean Float Recovery Tank Cover Gasket Recovery Tank Drain Hose & Cap Flush Vacuum Pick-Up Tool & Hoses Back flush Page 1 of 2 Copyright 2003 Nilfisk-Advance. 2/21/2001 FORM NO. 56043089 / AquaRide / BRX 700 - 7 ™...
  • Page 10 W worn out leaks WORK COMPLETED BY: ACKNOWLEDGED BY: Service Technician Signature Date Customer Signature Date Page 2 of 2 Copyright 2003 Nilfisk-Advance. 2/21/2001 8 - FORM NO. 56043089 / AquaRide / BRX 700 ™...

  • Page 11: Know Your Machine

    11 Wheel Drive Circuit Breaker 24 Debris Hopper 12 Control Circuit Circuit Breaker 25 Solution Control Valve 13 Emergency Stop Switch / Battery Disconnect 26 Tie Down Locations (3) FORM NO. 56043089 / AquaRide / BRX 700 - 9 ™...

  • Page 12: Control Panel

    Hourmeter Display Vacuum Switch Accessory Vacuum Indicator Vacuum System Indicator Accessory Vacuum ON / OFF Switch Solution System Indicator Key Switch / Main Power Solution Switch Battery Condition Indicators 10 - FORM NO. 56043089 / AquaRide / BRX 700 ™...

  • Page 13: Know Your Machine Descriptions

    Debris Hopper (24) – Collects debris that has been swept up by the machine. Empty and clean daily. Solution Control Valve (25) – This valve should be fully open whenever extracting. Only close this valve before removing the solution fi lter to prevent loss of solution. FORM NO. 56043089 / AquaRide / BRX 700 - 11 ™...

  • Page 14: Functional Description Of Control Switches

    FUNCTIONAL DESCRIPTION OF CONTROL SWITCHES: The controls on the AquaRide / BRX 700 were designed with one touch operation in mind. For single pass extracting the user can simply depress ™ one switch and all systems on the machine will be ready to go.
  • Page 15 The solution fl ow will only turn on when the throttle is moved from the neutral position in the forward direction. The solution fl ow will turn off if the throttle returns to neutral or is moved to reverse. FORM NO. 56043089 / AquaRide / BRX 700 - 13 ™...

  • Page 16: Description Of Indicators On The Control Panel

    Power Saving Sleep Function The AquaRide / BRX 700 is equipped with a battery saving feature that will turn all of the machine systems and accessories off if the machine is left in an idle state for a preset period of time. This sleep mode will only occur if the operator is not on the seat and the wand function is not in use. The sleep mode is indicated by a short duration green fl...
  • Page 17 The battery condition indicator (K) consists of three lights; a green (K3), a yellow (K2) and a red (K1). A fully charged battery pack will measure above 37.6 volts with no load applied (2.09 volts per cell). The AquaRide / BRX 700 is equipped with a low voltage cutout feature that will turn the ™...

  • Page 18: Steering System

    Grip the shroud and pull up to completely release it from the steering column base and the foot brake assembly. FIGURE 1 Remove plug to access/grease universal joint View from back side of panel (I) FRONT 16 - FORM NO. 56043089 / AquaRide / BRX 700 ™...

  • Page 19: Steering Chain Removal And Tensioning

    Inspect the chain for looseness and binding, re-tension the chain to 3/16”-1/4” (4.7 – 6.4mm) defl ection by following the above adjustment instructions. Keep all of the steer chain links oiled to prevent excessive wear and binding. FIGURE 2 View from under the machine FRONT FORM NO. 56043089 / AquaRide / BRX 700 - 17 ™...

  • Page 20: Wheel Drive System

    The speed select indicator will be green if a scrub mode has been selected and the faster scrub speed has been selected. It will be off otherwise. 18 - FORM NO. 56043089 / AquaRide / BRX 700 ™...
  • Page 21 J 2 - 8 MOTOR CONTROL BOARD PIN 4 -- POT. WIPER WHEEL DRIVE J4-3 PIN 13 -- POT. LO POT. IN Amps = 23 POT. 5K OHM SPEED CONTROLLER FORM NO. 56043089 / AquaRide / BRX 700 - 19 ™...
  • Page 22 2.5 – 5V Forward This drawing shows additional controller input circuit detail. The R1 pot is shown in the neutral position. Resistance is measured between pot low and pot wiper. FIGURE 4 20 - FORM NO. 56043089 / AquaRide / BRX 700 ™...

  • Page 23: Wheel Drive Troubleshooting Guide

    • Speed controller has sensed an operation error code fault. 03 fault code. (see the Status LED Fault Codes (Table 2) in the Electrical System) * = See Curtis Speed Control Troubleshooting Section. FORM NO. 56043089 / AquaRide / BRX 700 - 21 ™...

  • Page 24: Steering Spindle & Wheel Drive Motor Assembly Removal

    242 to all the cap screws to prevent the fasteners from backing out. Re-assemble in reverse order following all the steps outlined in the steer spindle and drive motor removal section. 22 - FORM NO. 56043089 / AquaRide / BRX 700 ™...
  • Page 25 WHEEL DRIVE SYSTEM FIGURE 6 FRONT FORM NO. 56043089 / AquaRide / BRX 700 - 23 ™...

  • Page 26: Brake Adjustment

    Note: Also check the brake bands brake lining for wear when excessive pedal travel can not be eliminated through adjustments. Service by replacing worn brake band and readjust and test for proper brake operation. FIGURE 7 24 - FORM NO. 56043089 / AquaRide / BRX 700 ™...

  • Page 27: Drive Wheel Brake Strap Replacement

    • A new carbon brush measures 20mm (.780 inches) in length. Replace the brushes when worn to a length less than 9.5mm (.375 inches). FIGURE 8 FORM NO. 56043089 / AquaRide / BRX 700 - 25 ™...

  • Page 28: Potentiometer Removal And Testing

    Next, move one of the test leads to the middle connection and turn the stem in both directions. The range of the readings should be approximately 0-5000 Ohms or 5000-0 Ohms increasing and decreasing through its full range. If you do not get these readings replace the potentiometer. FIGURE 9 26 - FORM NO. 56043089 / AquaRide / BRX 700 ™...

  • Page 29: Potentiometer Installation & Adjustment

    10 Service Tip: Also confi rm the Hourmeter/Status Display (G) is free of the error code 03 (drive system fault). If error 03 is shown the throttle is not set properly for the potentiometer and or drive pedal neutral position. Check both again and readjust. FIGURE 10 Right Side View Front View FORM NO. 56043089 / AquaRide / BRX 700 - 27 ™...

  • Page 30: Scrub Brush System

    • Cylindrical Brush System Overview See Figure 6. The machines AquaRide SE and BRX 700 use two cylindrical brushes that counter rotate to sweep up light debris and scrub at the same time. Each scrub brush is powered on opposing ends by 3/4 HP permanent magnet motors attached to separate poly-V belt/pulley drives.

  • Page 31: Scrub Brush System Troubleshooting

    LED display (G) as they occur. Note: Reference the Main Control Board Troubleshooting Guide in the Electrical System of this manual for specifi c fault descriptions and service repair actions. FIGURE 1 FORM NO. 56043089 / AquaRide / BRX 700 - 29 ™...

  • Page 32: Scrub Deck Removal

    10 To install the scrub deck follow the above steps in reverse order. FIGURE 2 Set stop bolt so that brush housing is approximately .38" above the floor (cyl). FRONT 30 - FORM NO. 56043089 / AquaRide / BRX 700 ™...

  • Page 33: Brush Deck Actuator Removal

    Service Test Mode section for the special output control of the Maintenance Mode Switch (D) (See Electrical System for steps to enter the Service Test Mode). FIGURE 3 FRONT FORM NO. 56043089 / AquaRide / BRX 700 - 31 ™...

  • Page 34: Scrub Brush Motor(S) Removal

    Re-install the drive belt and tension the belt as shown in Figure 5. Then install the belt guard, reconnect the battery pack and test the scrub system for proper operation. CCW * FIGURE 4 CCW * Right side belt FRONT *Rotation of shaft from shaft end. 32 - FORM NO. 56043089 / AquaRide / BRX 700 ™...

  • Page 35: Scrub Brush System Maintenance

    To install the brush slide it into the housing, lift slightly, push and turn until it seats into the drive end assembly. Re-install the idler end plate assemblies. FIGURE 6 FORM NO. 56043089 / AquaRide / BRX 700 - 33 ™...

  • Page 36: Solution System

    (minimum fl ow). Nozzle (B) directs the solution in front of the scrub brush when in the restoration mode (maximum fl ow). FIGURE 1 34 - FORM NO. 56043089 / AquaRide / BRX 700 ™...

  • Page 37: Operational Overview Of The Solution Pump & Solenoid Functions

    PIN 13 -- POT. LO POT. 5K OHM Speed Controller Control Board WHT/BRN VIO/BLK Valve, Maint. Solenoid WHT/BRN WHT/ORN NOTE: PRESSURE SWITCH IS Valve, Restore Solenoid PART OF PUMP ASSEMBLY WHT/BRN Pump, Accessory FORM NO. 56043089 / AquaRide / BRX 700 - 35 ™...

  • Page 38: Troubleshooting Guide

    CLOSED position (located next to fi lter). This prevents loss of solution when servicing the fi lter strainer with a partial or full tank. 36 - FORM NO. 56043089 / AquaRide / BRX 700 ™...

  • Page 39: Major Components Specifications

    See Figure 3. Thread the Nozzle Fixtures (H) into each brass barb. Position nozzle fi xture as shown (nozzle fi xture fl at must be 90º to bracket arm). FIGURE 3 FORM NO. 56043089 / AquaRide / BRX 700 - 37 ™...

  • Page 40: Solution Pump Removal

    Loosen the necessary hose clamps from the solenoid valve that needs service then pry the hoses off their fi ttings. Remove the two screws that fasten the valve body to the mount bracket to complete its removal. FIGURE 4 38 - FORM NO. 56043089 / AquaRide / BRX 700 ™...

  • Page 41: Solution System

    (P), Coil (Q) and Washers (R). Use the screwdriver again and turn out (remove) the valve spool and Piston (S) (be careful not to lose any internal parts). Thoroughly wash out all debris from the Valve Body Seat (T) then reassemble and test the solenoid for proper operation. FIGURE 5 FORM NO. 56043089 / AquaRide / BRX 700 - 39 ™...

  • Page 42: Recovery System

    “FULL” on the hourmeter/status display telling the operator that the recovery tank has become full. FIGURE 1 FRONT Float Cage Recovery & Ball Tank Cover Vacuum M otors Cover Gasket Vacuum Hose Drain Hose Recovery Bladder Pickup Shoes 40 - FORM NO. 56043089 / AquaRide / BRX 700 ™...

  • Page 43: Vacuum Motor Circuit Overview

    BRN/YEL Sw , Spst Sw , Seat Thermistor Interface Control Board Speed Controller J2-8 W HT/BRN W HT/BRN GRA/BLK Vacuum Solenoid Coil W HT Contact N.o. M otor, Vac FORM NO. 56043089 / AquaRide / BRX 700 - 41 ™...

  • Page 44: Vacuum System Electrical Circuit Overview

    The vacuum motors will run continuously without the (normal) machine auto mode interruptions. Examples: No foot pedal throttle inputs, no 10 sec. time delay shut-off, no auto full indicator display and system shut down, no operator in seat input. 42 - FORM NO. 56043089 / AquaRide / BRX 700 ™...

  • Page 45: Troubleshooting Guide

    fl ush with water. The cage is a two piece design and can be snapped apart to separate. Note: Another method of accessing the cage fl oat for servicing is to remove the (6) (B) Screws and remove the vacuum duct housing (C) from the recovery tank top opening. FORM NO. 56043089 / AquaRide / BRX 700 - 43 ™...
  • Page 46 RECOVERY SYSTEM FIGURE 3 44 - FORM NO. 56043089 / AquaRide / BRX 700 ™...

  • Page 47: Vacuum Motor(S) Removal

    Next guide the tank off the rear of the machine supporting the tank on its left corner to prevent crushing of the vacuum hose, then lay it down onto the fl oor. Note: There is some weight to the tank assembly. Be careful when lifting it off ask for an extra helper to assist. FORM NO. 56043089 / AquaRide / BRX 700 - 45 ™...

  • Page 48: Recovery Tank Bladder Removal

    Bushing (U) onto the aluminum drain tube drop the bushing into a small cup of warm water to soften. 10 Fill the solution tank and check for leaks. 46 - FORM NO. 56043089 / AquaRide / BRX 700 ™...
  • Page 49 RECOVERY SYSTEM FIGURE 5 FIGURE 6 FORM NO. 56043089 / AquaRide / BRX 700 - 47 ™...

  • Page 50: Vacuum Shoes Removal For Maintenance

    Rinse the shoe housings with warm water to remove any build up of string, hair or carpet fi bers. Then reinstall shoes in reverse order of removal. FIGURE 7 48 - FORM NO. 56043089 / AquaRide / BRX 700 ™...

  • Page 51: Electrical System

    Put one of the black rubber boots over each of the terminals and retain with supplied tie straps. Connect the battery pack connector to the Machine Battery Connector (22) and close the operator’s seat platform. *Note: Removal of the recovery tank can make battery installation easier. FORM NO. 56043089 / AquaRide / BRX 700 - 49 ™...

  • Page 52: Description Of The Battery Low Voltage Cutout Feature

    Check the fl uid level in all battery cells after charging the batteries. Add distilled water, if necessary, to bring the fl uid level up to the bottom of the fi ller tubes. WARNING! Do not fi ll the batteries before charging. Only charge batteries in a well-ventilated area. Do not smoke while servicing the batteries. 50 - FORM NO. 56043089 / AquaRide / BRX 700 ™...

  • Page 53: Battery Maintenance

    The chart below shows the approximate “percent charged” of an electric vehicle battery at various specifi c gravity values, corrected to 80°F (26.7°C). APPROXIMATE STATE OF CHARGE 1.265 Initial Charged Full Charge 100% 1.265 1.225 1.190 1.155 Discharged 1.120 FORM NO. 56043089 / AquaRide / BRX 700 - 51 ™...

  • Page 54: Actuator Drive Nut Adjustment

    Service Tip: See Figure 4. Note the correct orientation of the Spring Housing (C) when installing the complete motor assembly and also run the spring housing assembly to the IN (retracted) position for machine installation. 52 - FORM NO. 56043089 / AquaRide / BRX 700 ™...
  • Page 55 ELECTRICAL SYSTEM FIGURE 3 FIGURE 4 FORM NO. 56043089 / AquaRide / BRX 700 - 53 ™...

  • Page 56: Curtis Speed Control

    “Clear Diagnostic History” is the top line in the display, and then press MORE INFO again. The programmer will prompt you to acknowledge or cancel. See the PROGRAMMER OPERATION section of this chapter for more detail on programmer operation. 54 - FORM NO. 56043089 / AquaRide / BRX 700 ™...
  • Page 57 Fwd/Rev drive pedal before turning on the main key switch or activating the throttle before sitting on the seat. This can be cleared by returning the operator’s drive pedal to neutral and cycling the key switch OFF and ON. FORM NO. 56043089 / AquaRide / BRX 700 - 55 ™...

  • Page 58: Installation Checkout For The Curtis Speed Controller

    Cycle each switch in turn, observing the programmer. Each input should show the correct state on the programmer. Take the vehicle off the blocks and drive it in an open area. It should have smooth acceleration and good top speed. 56 - FORM NO. 56043089 / AquaRide / BRX 700 ™...

  • Page 59: Programming Vehicle Speed Changes

    HANDHELD PROGRAMMER USE Optional Curtis handheld programmer allows you to program, test and diagnose Curtis controllers. Use of a handheld programmer is described more fully in the CURTIS PROGRAMMER MANUAL 56043101. FORM NO. 56043089 / AquaRide / BRX 700 - 57 ™...

  • Page 60: Main Control Board Functional Overview

    5. Check excessive belt tension and idler bearing. *** See the Main Control Board Special Program Options section to activate the “Scrub Deck Motor Type” Selection function. 58 - FORM NO. 56043089 / AquaRide / BRX 700 ™...
  • Page 61 • A short circuit is a parallel path of very low resistance, often caused accidentally. • With low resistance there is an excessive amount of current. • The excessive current will either melt the wires or open a fusible link. FORM NO. 56043089 / AquaRide / BRX 700 - 59 ™...

  • Page 62: Main Controller Service Test Mode

    Vacuum Switch Accessory Vacuum Indicator Vacuum System Indicator Accessory Vacuum ON / OFF Switch Solution System Indicator Key Switch / Main Power Solution Switch Battery Condition Indicators FIGURE 9 60 - FORM NO. 56043089 / AquaRide / BRX 700 ™...

  • Page 63: Output Controls

    Brief On Green Flash – Brush motor output is off and brush motor current is being sensed (abnormal condition). Brief Off Green Flash – Brush motor output is on and brush motor current is not being sensed (abnormal condition). Flashing Red – Brush motor overload has occurred. FORM NO. 56043089 / AquaRide / BRX 700 - 61 ™...
  • Page 64 Brief On Green Flash - Vacuum motor output is off and vacuum motor current is being sensed (abnormal condition). Brief Off Green Flash - Vacuum motor output is on and vacuum motor current is not being sensed (abnormal condition). Flashing Red – Vacuum motor overload has occurred. 62 - FORM NO. 56043089 / AquaRide / BRX 700 ™...
  • Page 65 Brief Off Green Flash – Speed control mode 2 is selected (scrub speed). Wand Switch (I): This switch does not control any output functions. Pressing this switch will illuminate the wand indicator. FORM NO. 56043089 / AquaRide / BRX 700 - 63 ™...

  • Page 66: Main Control Board Special Program Options

    11 The status display will now show “d” to indicate that the procedure is done. 12 The new setting will be saved and will remain in effect until it is changed again. 64 - FORM NO. 56043089 / AquaRide / BRX 700 ™...
  • Page 67 To save the new setting, turn the main power key switch to the off position. The new setting will be saved and will remain in effect until it is changed again. FORM NO. 56043089 / AquaRide / BRX 700 - 65 ™...
  • Page 68 10 If it is desired to save the codes, go to step 11. 11 To exit the error code recall mode, turn the main power key switch to the off position. 66 - FORM NO. 56043089 / AquaRide / BRX 700 ™...
  • Page 69 Once the proper setting is displayed, press the scrub system off switch to save this setting. 10 The status display will now display “d” to indicate that the operation is done. 11 Turn the main power key switch to the off position. FORM NO. 56043089 / AquaRide / BRX 700 - 67 ™...
  • Page 70 To save the new setting, turn the main power key switch to the off position. The new setting will be saved and will remain in effect until it is changed again. 68 - FORM NO. 56043089 / AquaRide / BRX 700 ™...
  • Page 71 To save the new setting, turn the main power key switch to the off position. The new setting will be saved and will remain in effect until it is changed again. FORM NO. 56043089 / AquaRide / BRX 700 - 69 ™...
  • Page 72 ELECTRICAL SYSTEM Drive Motor Breakdown 70 - FORM NO. 56043089 / AquaRide / BRX 700 ™...

  • Page 73: Electrical Component Location (Before Sn Chart)

    Contactor, Vacuum Motor Solenoid Valve (Maintenance) Solenoid Valve (Restoration) Lift Actuator, Brush Motor, Drive Wheel Motor, Pump Motor, Vacuum Motor, Vacuum Motor, Brush Motor, Brush Potentiometer, 5K Switch, Key revised 9/05 FORM NO. 56043089 / AquaRide / BRX 700 - 71 ™...

  • Page 74: Wiring Schematic (Before Sn Chart)

    LAMP, FLASHING Amps = .3 8 AWG Wiring diagram for Machines built before this Serial Number Chart CONTACT N.O. AquaRide - 1837636 MOTOR, VAC BRX 700 - 1839732 Amps = 18 MOTOR, VAC Amps = 18 MOTOR, BRUSH Amps = 22 8 AWG CONTACT N.O.

  • Page 75: Wiring Diagram (Before Sn Chart)

    SCHEMATIC FOR AquaRide / BRX 700 (before Serial Number Chart) ™ ELECTRICAL SYSTEM ORN/RED 20-1 ORN/RED 20-1 BRN/W HT 20-1 BRN/W HT 20-1 BRN 18-1 VIO 20-2 VIO 20-2 BRN 16-1 BLU/BLK 20-1 BLU/BLK 20-1 SW, SPST KEY ORN/BLU 20-1...

  • Page 76: Wiring Diagram (After Sn Chart)

    SWITCH, PUMP (part of M11) WHT/BRN Wiring diagram for Machines built before this Serial Number Chart MOTOR, FAN & all AXP/ECO+Solution machines AquaRide - 1837636 MOTOR, VAC BRX 700 - 1839732 CONTACT N.O. MOTOR, VAC CONTACT N.O. MOTOR, BRUSH MOTOR, BRUSH SW, SIDE BROOM FUSE, 5 A.

  • Page 77: Wiring Schematic (After Sn Chart)

    SCHEMATIC FOR AquaRide / BRX 700 (after Serial Number Chart) ™ ELECTRICAL SYSTEM FORM NO. 56043089 / AquaRide / BRX 700 - 75 revised 11/05 ™...

  • Page 78: Electrical Component Location (After Sn Chart)

    For Machines after Serial Number Chart COMPONENT LOCATION SERIAL NUMBER CHART AquaRide - 1837636 Item Description BRX 700 - 1839732 Controller, Speed Control Panel Assembly Control Assembly (AXP/ECO+Solution only) Fuse 150 Amp Circuit Breaker, 45 Amp (Wheel Drive) Circuit Breaker, 10 Amp (Control Circuit)
  • Page 80 Austria (Sales Sub) Holland (Sales Sub) Nilfi sk-Advance GmbH Phone: +43 Nilfi sk-Advance B.V. Phone: +31 Voralberger Allee 46 1616 58 30 22 Camerastraat 9 (2e verdieping) 36 546 07 00 A-1230 Wien Fax: +43 1322 BB Almere Fax: +31 info@nilfi...
  • Page 81 Sweden (Prod.) Hong Kong (Sales Sub) Nilfi sk-Advance A/S Phone: +46 Nilfi sk-Advance Ltd. Phone: +852 Åmål Branch 5321 7500 2001 HK Worsted Mills Ind’l Bldg., 2427 5951 Strömsbergsgatan Fax: +46 31-39 Wo Tong Tsui St. Fax: +852 Box 127 5321 7595 Kwai Chung, Hong Kong 2487 5828...
  • Page 82 www.nilfi sk-advance.com © 2005...

This manual is also suitable for:

5631400956314019Aquaride se
