Performance test upgrades

Testing and measuring equipment
ENDO CUT I and Q Test setup

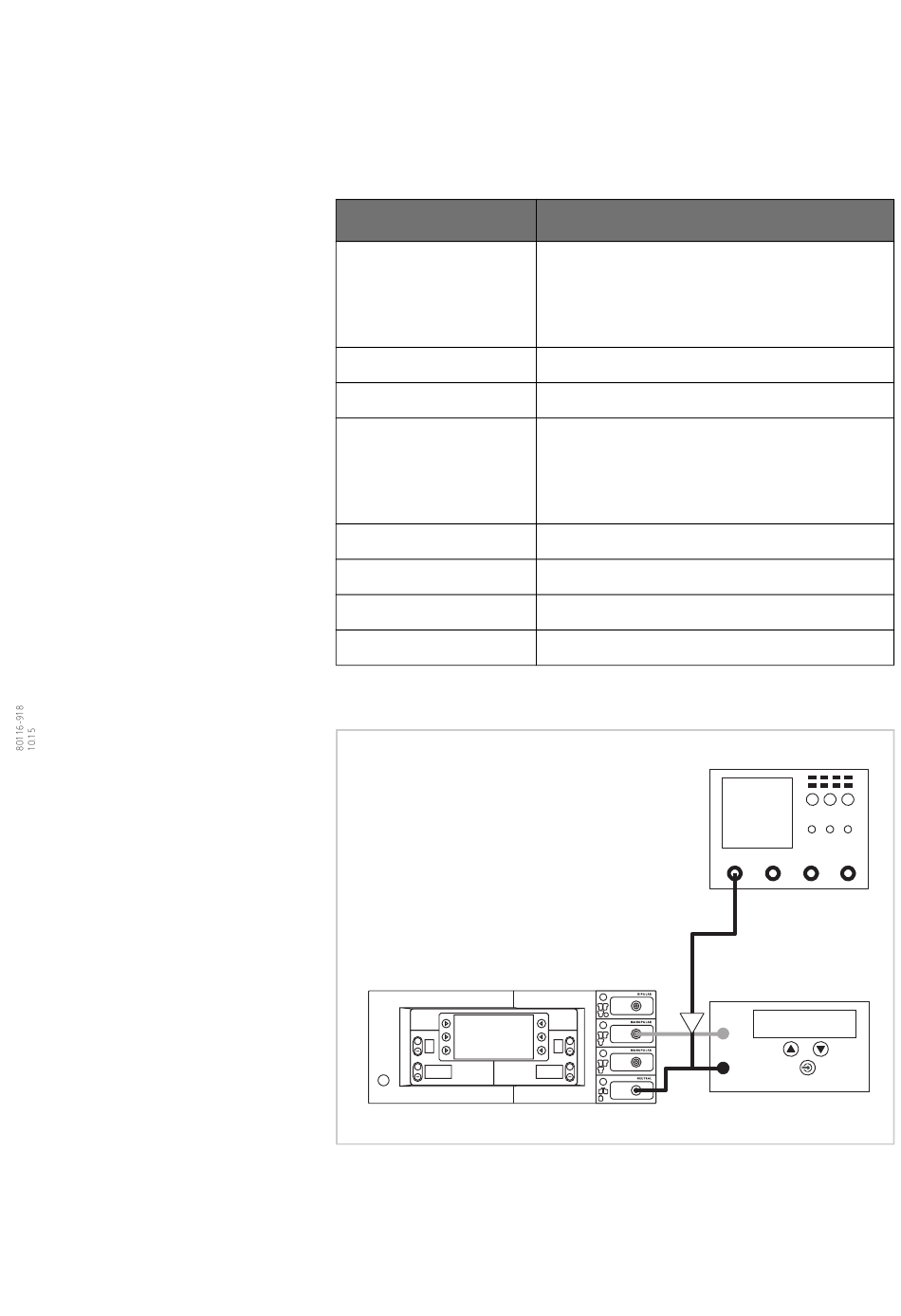

Fig. 6-9
Erbe Art. No. Description
20192-127 Patient cable AE
or
Patient cable AE, international
20192-110
20190-045 Electrode handle ICC/ACC
– Laboratory measuring cable
20194-070 Patient cable NE
or
Patient cable NE, international
20194-075
20100-033 Adapter cable NE
– HF power meter
– Oscilloscope
– Probe 100:1
+
+
6 • Maintenance and servicing
High Voltage
Differential probe
AE
+
NE
+
HF power meter
Oscilloscope
