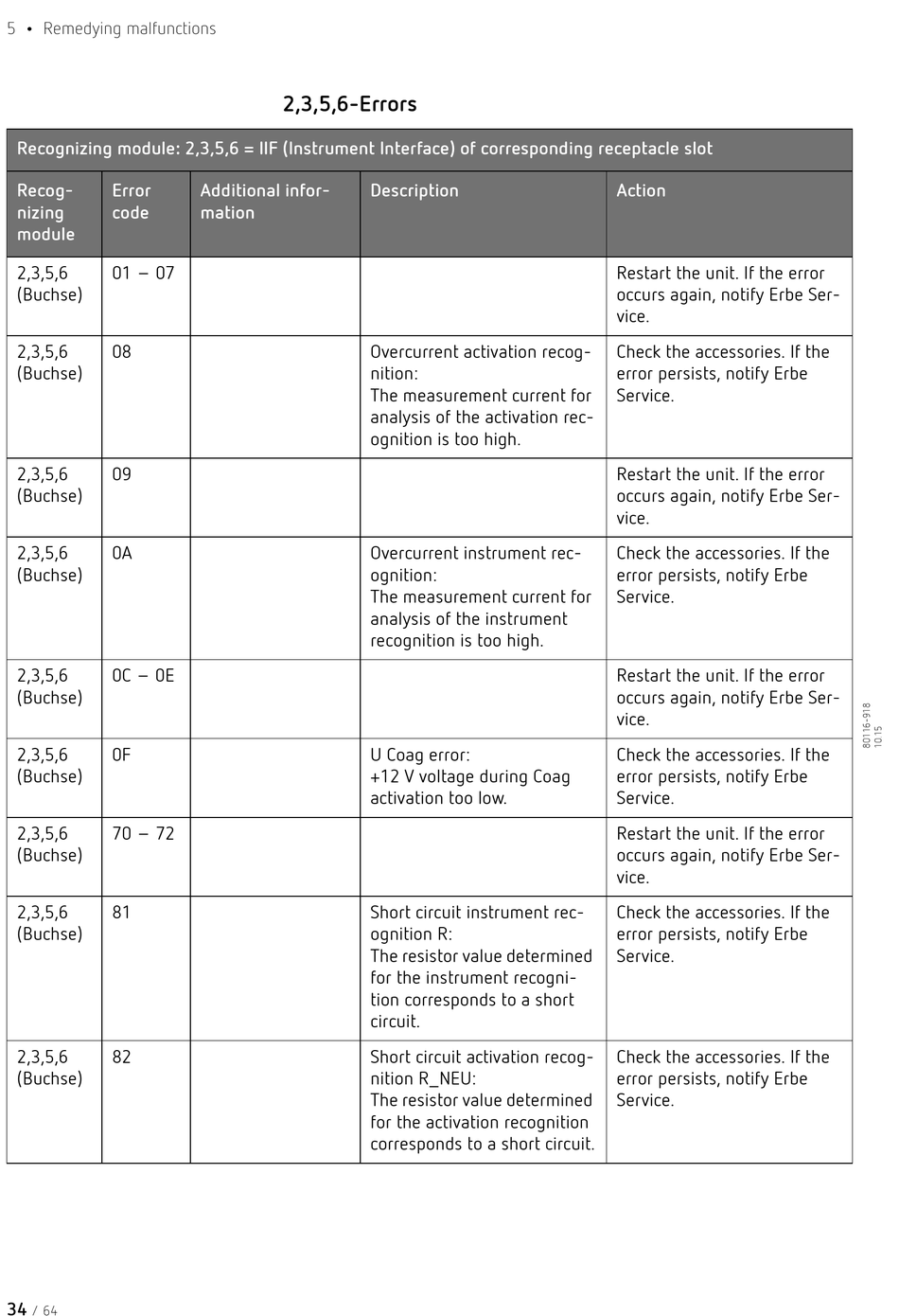

2,3,5,6-Errors - Erbe VIO 300 S Service Manual

5 • Remedying malfunctions
Recognizing module: 2,3,5,6 = IIF (Instrument Interface) of corresponding receptacle slot
Recog- Error
nizing code
module
2,3,5,6 01 – 07
(Buchse)
2,3,5,6 08
(Buchse)
2,3,5,6 09
(Buchse)
2,3,5,6 0A
(Buchse)
2,3,5,6 0C – 0E
(Buchse)
2,3,5,6 0F
(Buchse)
2,3,5,6 70 – 72
(Buchse)
2,3,5,6 81
(Buchse)
2,3,5,6 82
(Buchse)
34
/ 64

2,3,5,6-Errors

Additional infor-
mation
Description
Overcurrent activation recog-
nition: 
The measurement current for
analysis of the activation rec-
ognition is too high.
Overcurrent instrument rec-
ognition: 
The measurement current for
analysis of the instrument
recognition is too high.
U Coag error: 
+12 V voltage during Coag
activation too low.
Short circuit instrument rec-
ognition R: 
The resistor value determined
for the instrument recogni-
tion corresponds to a short
circuit.
Short circuit activation recog-
nition R_NEU: 
The resistor value determined
for the activation recognition
corresponds to a short circuit.
Action
Restart the unit. If the error
occurs again, notify Erbe Ser-
vice.
Check the accessories. If the
error persists, notify Erbe
Service.
Restart the unit. If the error
occurs again, notify Erbe Ser-
vice.
Check the accessories. If the
error persists, notify Erbe
Service.
Restart the unit. If the error
occurs again, notify Erbe Ser-
vice.
Check the accessories. If the
error persists, notify Erbe
Service.
Restart the unit. If the error
occurs again, notify Erbe Ser-
vice.
Check the accessories. If the
error persists, notify Erbe
Service.
Check the accessories. If the
error persists, notify Erbe
Service.
