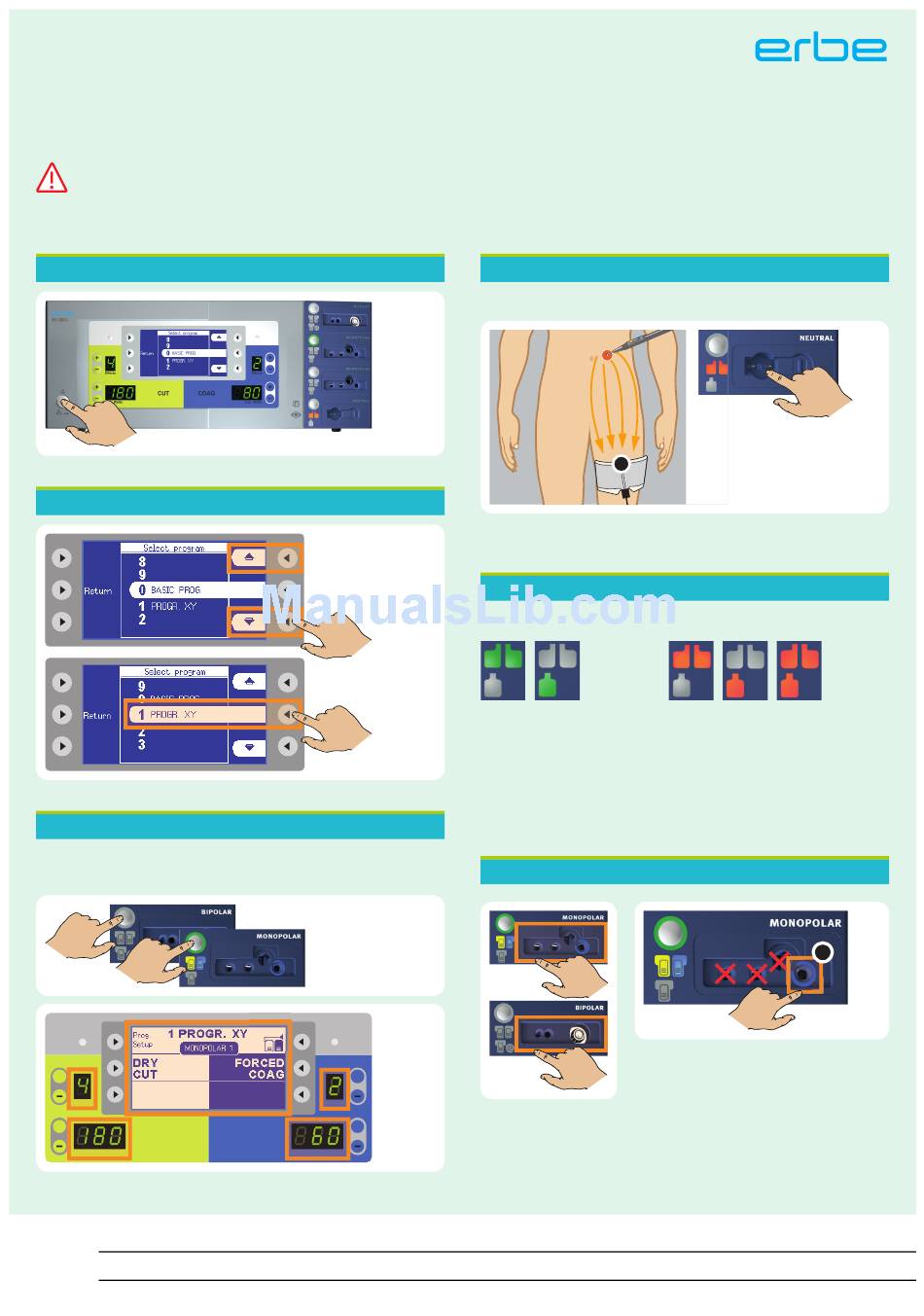

Erbe VIO 300 S Quick Manual

This quick guide is no substitute for briefing and user manual. This quick guide does not include any safety notes. Make yourself familiar
with the safety notes in the user manuals.
Necessary operating steps
1
Switch on the device
2
Select and adopt program
3
Check settings
Check the settings of the instrument receptacles used by pressing their
focus buttons one by one.
2
Prog/
Setup
MONOPOLAR
HIGH CUT
+
Effect Effect
+
CUT
max. Watts max. Watts
ELECTROSURGERY
QUICK GUIDE
VIO
FORCED
COAG
+
Effect Effect
+
COAG
max. Watts max. Watts
300 S
®
4
Apply and connect return electrode
Only if you are using a monopolar instrument.
The long edge of the return electrode (1) must point to the operating
field.
5
Monitor return electrode
Following application and during surgery.
Correct
If the red return electrode symbol lights up, check the following:
• Is the return electrode correctly connected to the device?
• Does the long edge of the return electrode point to the operating
field?
• Does the return electrode have sufficient contact to the skin?
6
Connect instruments
1
ATTENTION: You may only plug monopo-
lar 4 mm Ø connectors into the receptacle
with the blue ring (1). Otherwise you
damage the device.
