Erbe VIO 300 S Service Manual page 63

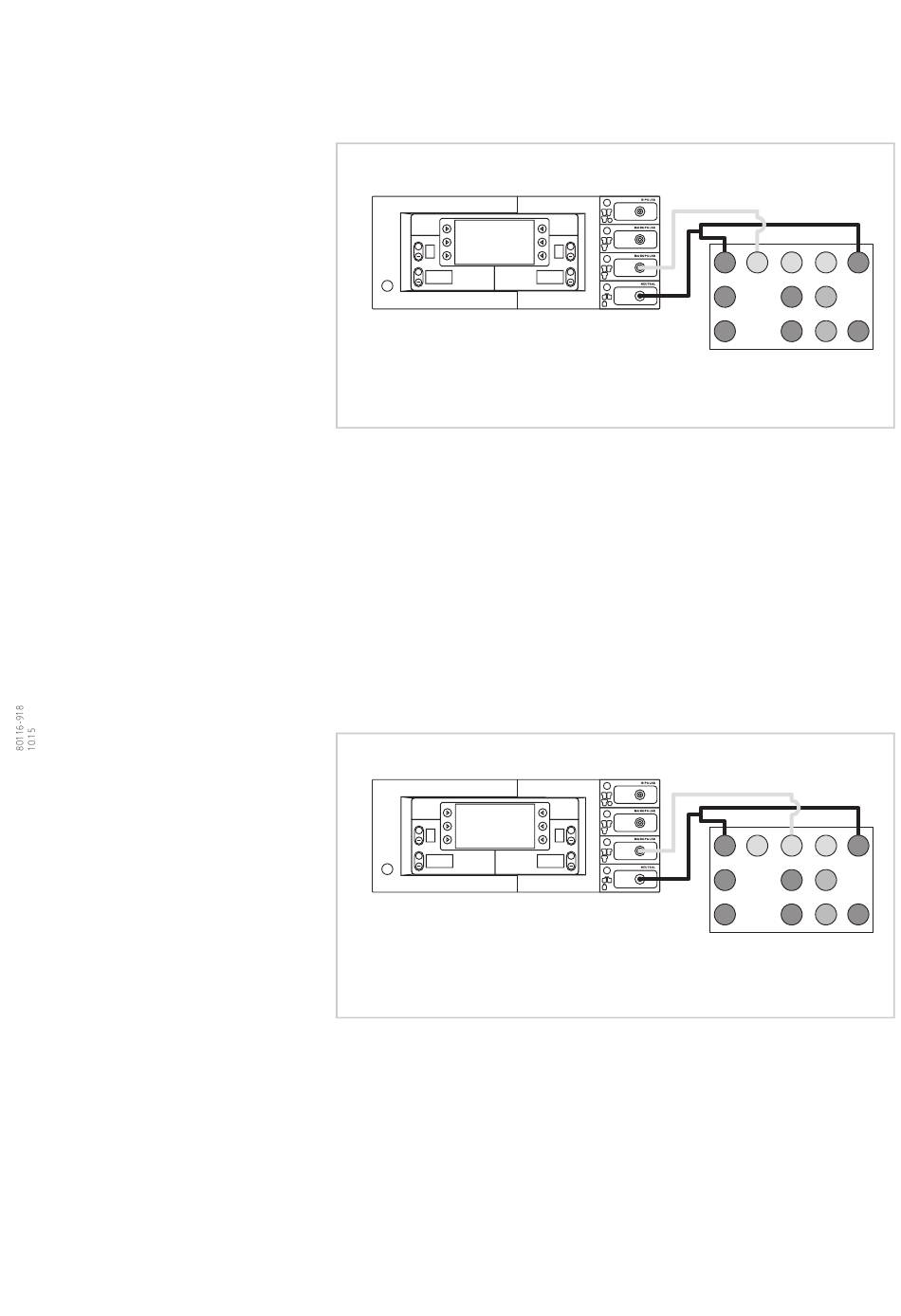

Test set-up and test procedure
1st test step
Fig. 6-15
• The test specimen is connected to the power supply via the power
cord.
• The NE receptacle of the test specimen is connected to the VIO Testbox
via the patient cable NE with the adapter cable.
• The AE receptacle of the test specimen is connected to the VIO test box
via the patient cable AE and the electrode handle with the laboratory
measuring cable.
1. Activate test specimen via CUT button on the electrode handle for
approx. 10 seconds. During the entire activation time there must be
no warning signal.
2nd test step
Fig. 6-16
• The test specimen is connected to the power supply via the power
cord.
• The NE receptacle of the test specimen is connected to the VIO Testbox
via the patient cable NE with the adapter cable.
• The AE receptacle of the test specimen is connected to the VIO test box
via the patient cable AE and the electrode handle with the laboratory
measuring cable.
+ +
+ +
+ +
+ +
6 • Maintenance and servicing
AE
NE
2 4
1 3
8
6 7
10
9 11
Testbox 20100-101
AE
NE
2 4
1 3
6 7 8
10
9 11
Testbox 20100-101
5
12
5
12
63
/ 64
