Spark Monitor - Erbe VIO 300 S Service Manual

6 • Maintenance and servicing
50
/ 64

Spark monitor

Testing and measuring equipment
Erbe Art. No.
20192-127
20192-110
20190-045
–
20194-070
20194-075
20100-033
20100-019

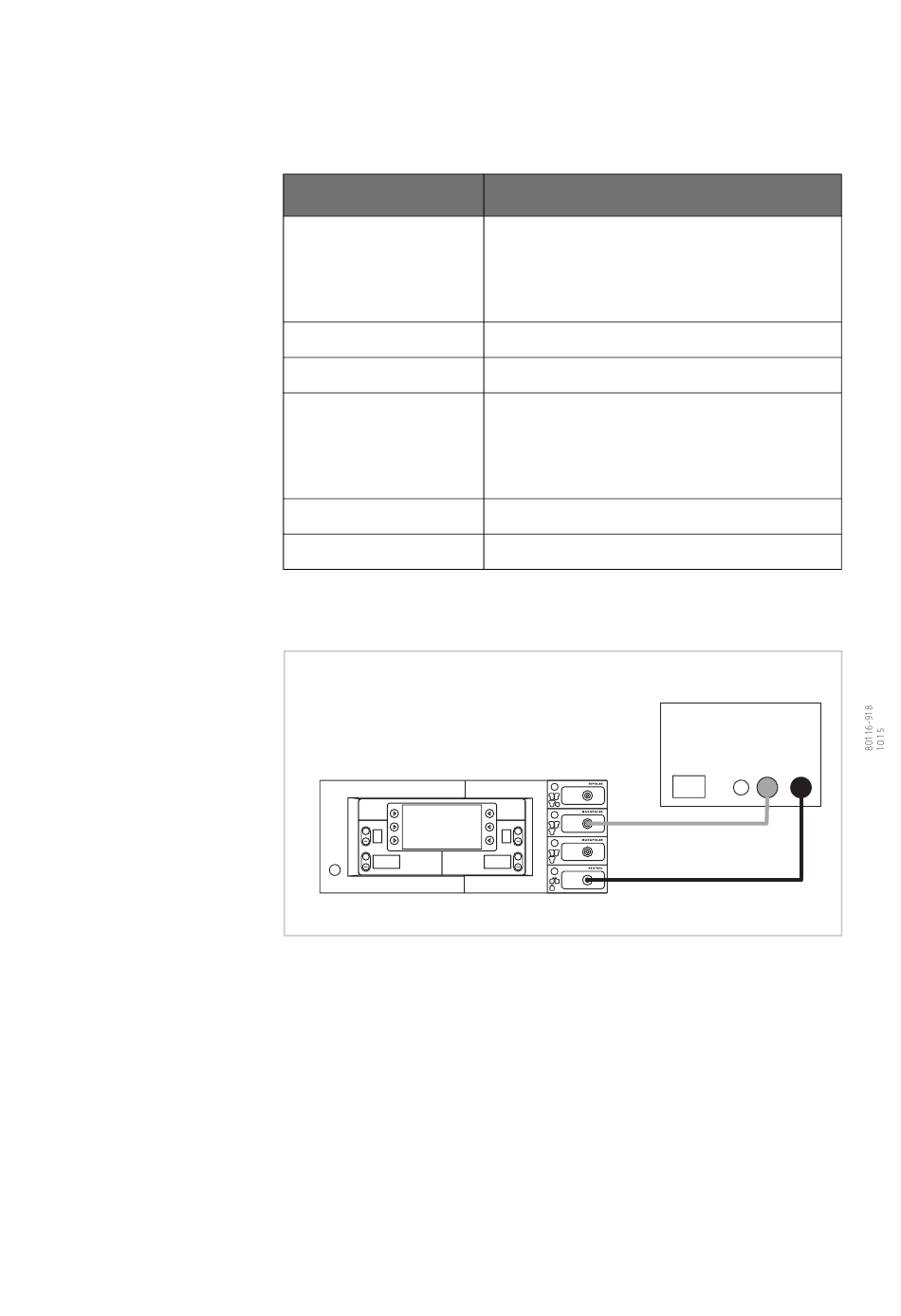

Test setup
+
+
Fig. 6-4
• The test specimen is connected to the power supply via the power
cord.
• The test specimen is connected to the testbox.
Description
Patient cable AE
or
Patient cable AE, international
Electrode handle ICC/ACC
Laboratory measuring cable
Patient cable NE
or
Patient cable NE, international
Adapter cable NE
Testbox spark monitor, 230 V
AE
+
+
NE
Testbox 20100-019
Power S1 DC 70 V
-
+
