6 • Maintenance and servicing
1st test step
2nd test step
48
/ 64

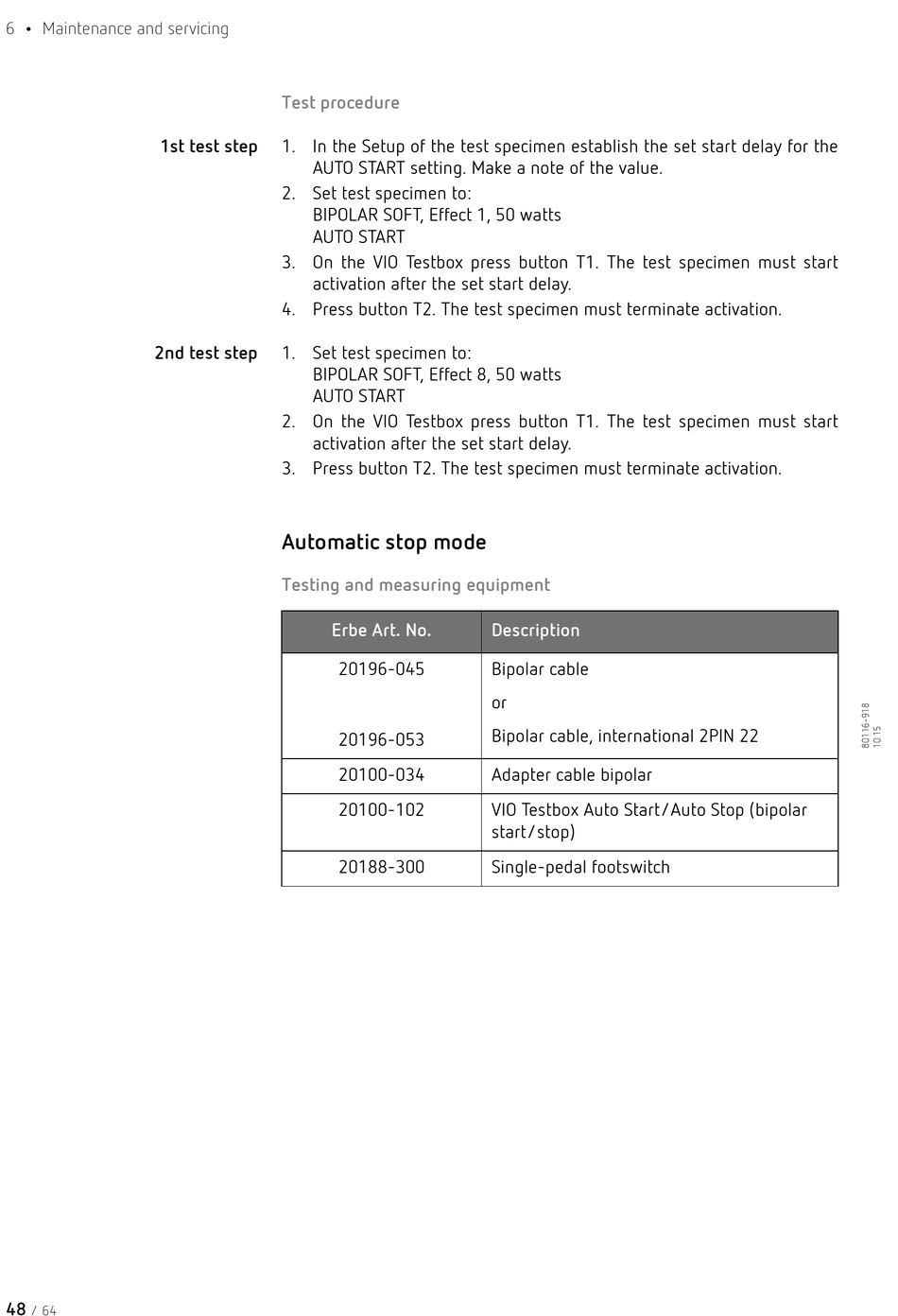

Test procedure
1. In the Setup of the test specimen establish the set start delay for the
AUTO START setting. Make a note of the value.
2. Set test specimen to: 
BIPOLAR SOFT, Effect 1, 50 watts 
AUTO START
3. On the VIO Testbox press button T1. The test specimen must start
activation after the set start delay.
4. Press button T2. The test specimen must terminate activation.
1. Set test specimen to: 
BIPOLAR SOFT, Effect 8, 50 watts
AUTO START
2. On the VIO Testbox press button T1. The test specimen must start
activation after the set start delay.
3. Press button T2. The test specimen must terminate activation.

Automatic stop mode

Testing and measuring equipment
Erbe Art. No.
20196-045
20196-053
20100-034
20100-102
20188-300
Description
Bipolar cable
or
Bipolar cable, international 2PIN 22
Adapter cable bipolar
VIO Testbox Auto Start/Auto Stop (bipolar
start/stop)
Single-pedal footswitch
