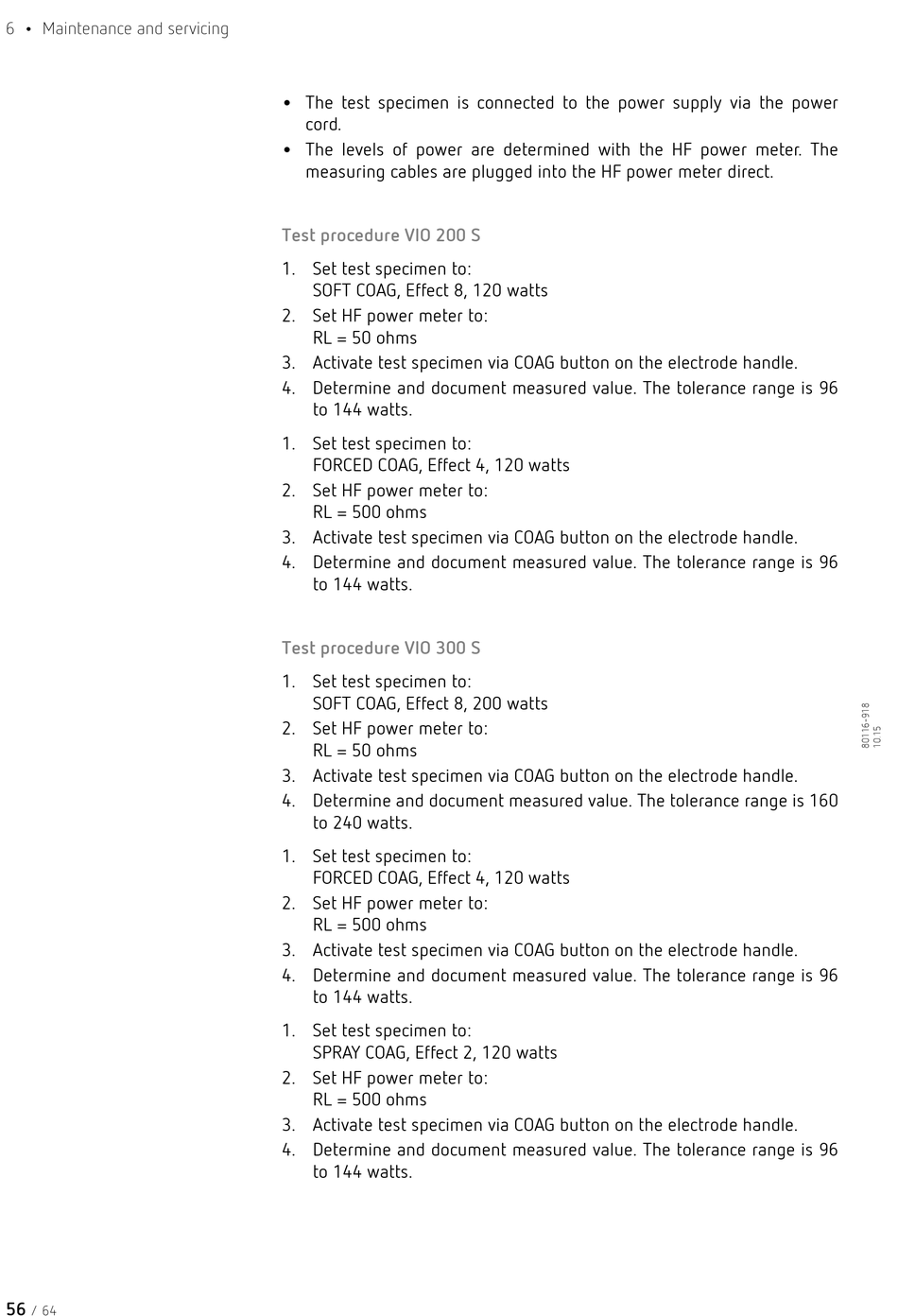

6 • Maintenance and servicing
56
/ 64
• The test specimen is connected to the power supply via the power
cord.
• The levels of power are determined with the HF power meter. The
measuring cables are plugged into the HF power meter direct.
Test procedure VIO 200 S
1. Set test specimen to:
SOFT COAG, Effect 8, 120 watts
2. Set HF power meter to:
RL = 50 ohms
3. Activate test specimen via COAG button on the electrode handle.
4. Determine and document measured value. The tolerance range is 96
to 144 watts.
1. Set test specimen to:
FORCED COAG, Effect 4, 120 watts
2. Set HF power meter to:
RL = 500 ohms
3. Activate test specimen via COAG button on the electrode handle.
4. Determine and document measured value. The tolerance range is 96
to 144 watts.
Test procedure VIO 300 S
1. Set test specimen to:
SOFT COAG, Effect 8, 200 watts
2. Set HF power meter to:
RL = 50 ohms
3. Activate test specimen via COAG button on the electrode handle.
4. Determine and document measured value. The tolerance range is 160
to 240 watts.
1. Set test specimen to:
FORCED COAG, Effect 4, 120 watts
2. Set HF power meter to:
RL = 500 ohms
3. Activate test specimen via COAG button on the electrode handle.
4. Determine and document measured value. The tolerance range is 96
to 144 watts.
1. Set test specimen to:
SPRAY COAG, Effect 2, 120 watts
2. Set HF power meter to:
RL = 500 ohms
3. Activate test specimen via COAG button on the electrode handle.
4. Determine and document measured value. The tolerance range is 96
to 144 watts.
