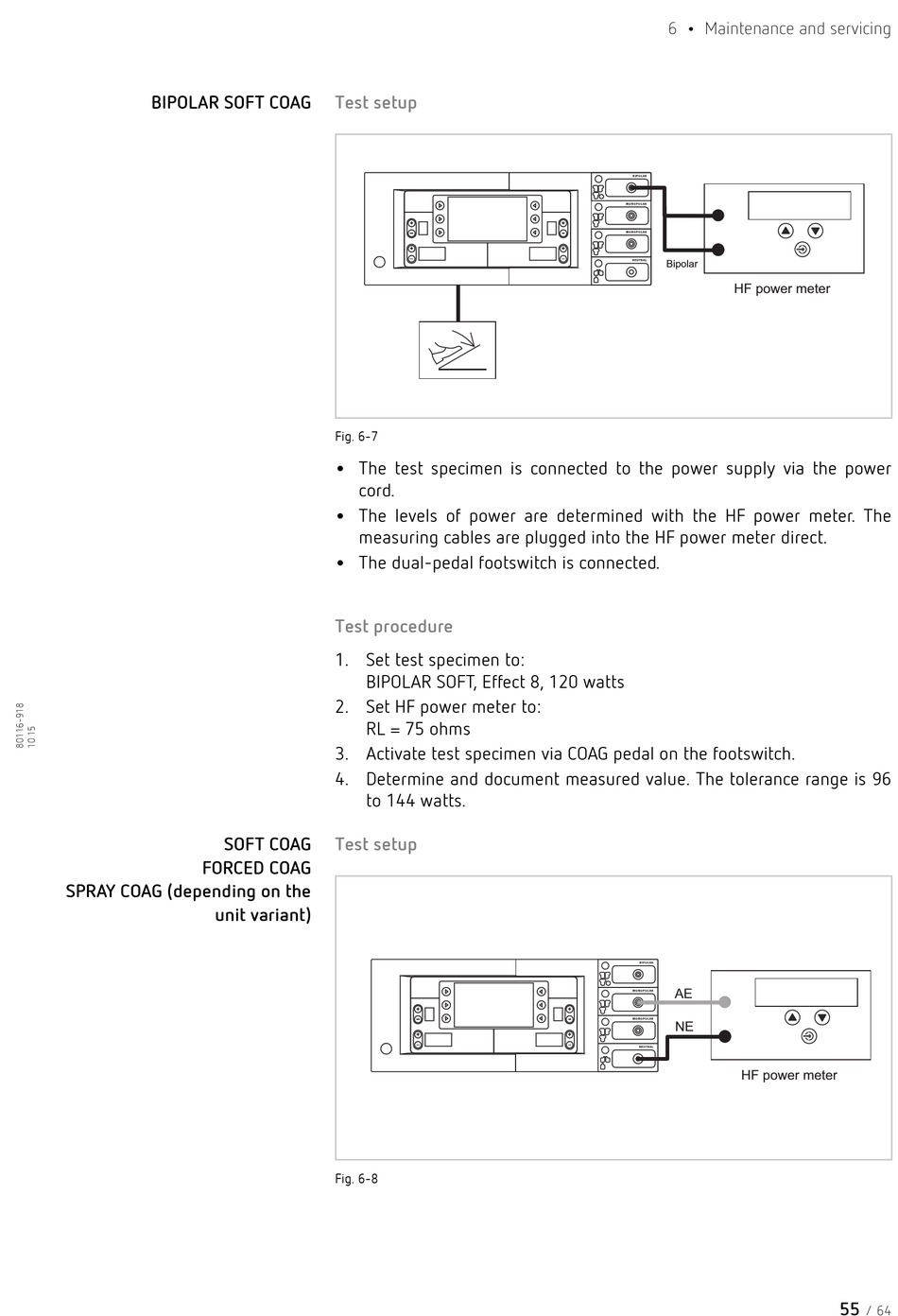

Erbe VIO 300 S Service Manual page 55

BIPOLAR SOFT COAG
SOFT COAG
FORCED COAG
SPRAY COAG (depending on the
unit variant)
Test setup
+
+
Fig. 6-7
• The test specimen is connected to the power supply via the power
cord.
• The levels of power are determined with the HF power meter. The
measuring cables are plugged into the HF power meter direct.
• The dual-pedal footswitch is connected.
Test procedure
1. Set test specimen to:
BIPOLAR SOFT, Effect 8, 120 watts
2. Set HF power meter to:
RL = 75 ohms
3. Activate test specimen via COAG pedal on the footswitch.
4. Determine and document measured value. The tolerance range is 96
to 144 watts.
Test setup
+
+
Fig. 6-8
6 • Maintenance and servicing
+
+
Bipolar
AE
+
NE
+
HF power meter
HF power meter
