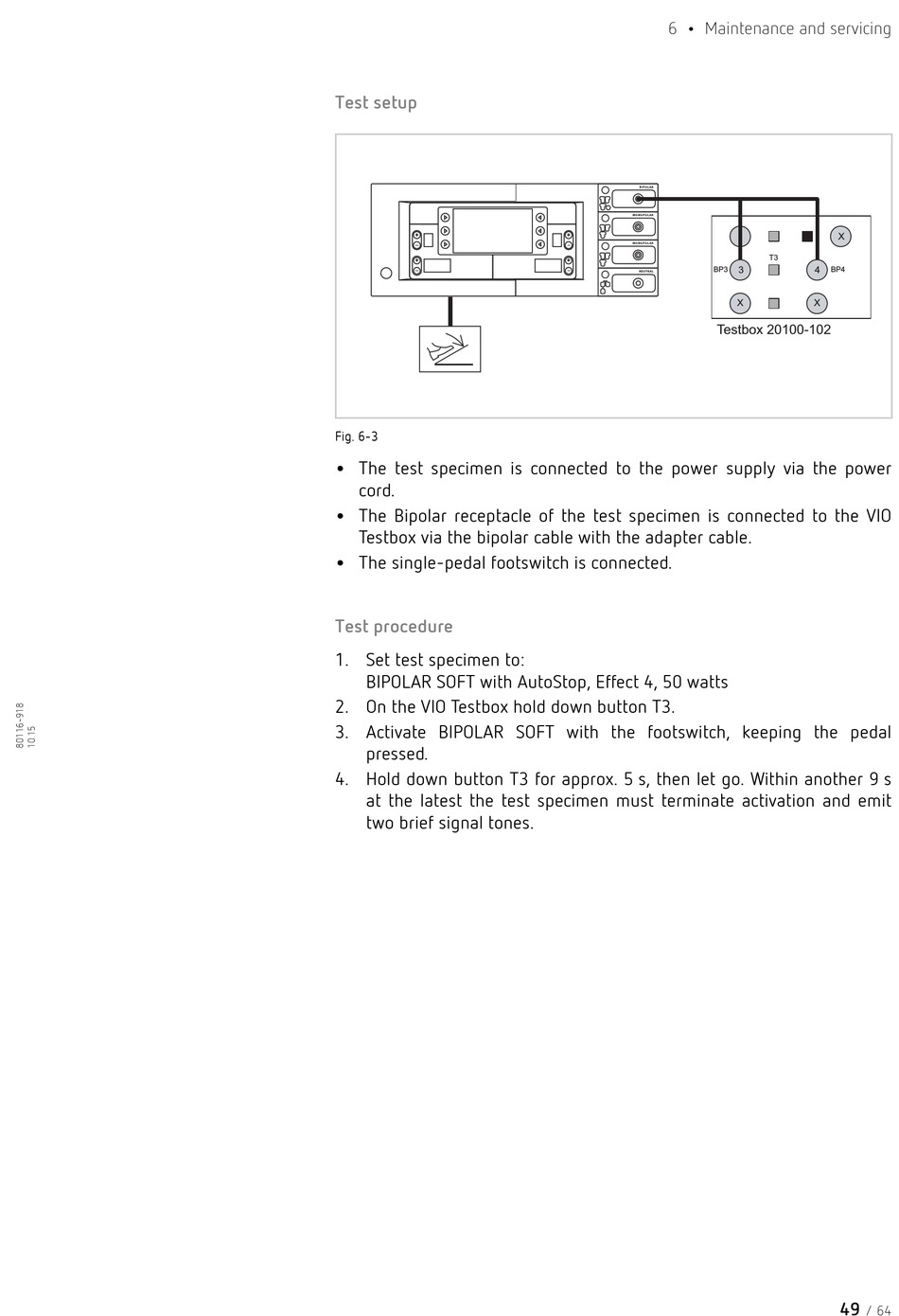

Test setup
+
+
Fig. 6-3
• The test specimen is connected to the power supply via the power
cord.
• The Bipolar receptacle of the test specimen is connected to the VIO
Testbox via the bipolar cable with the adapter cable.
• The single-pedal footswitch is connected.
Test procedure
1. Set test specimen to:
BIPOLAR SOFT with AutoStop, Effect 4, 50 watts
2. On the VIO Testbox hold down button T3.
3. Activate BIPOLAR SOFT with the footswitch, keeping the pedal
pressed.
4. Hold down button T3 for approx. 5 s, then let go. Within another 9 s
at the latest the test specimen must terminate activation and emit
two brief signal tones.
6 • Maintenance and servicing
+
+
BP3
Testbox 20100-102
1
X
T3
3 4
BP4
X X
