6 • Maintenance and servicing
3rd test step
NE monitoring of asymmetry
62
/ 64
+
+

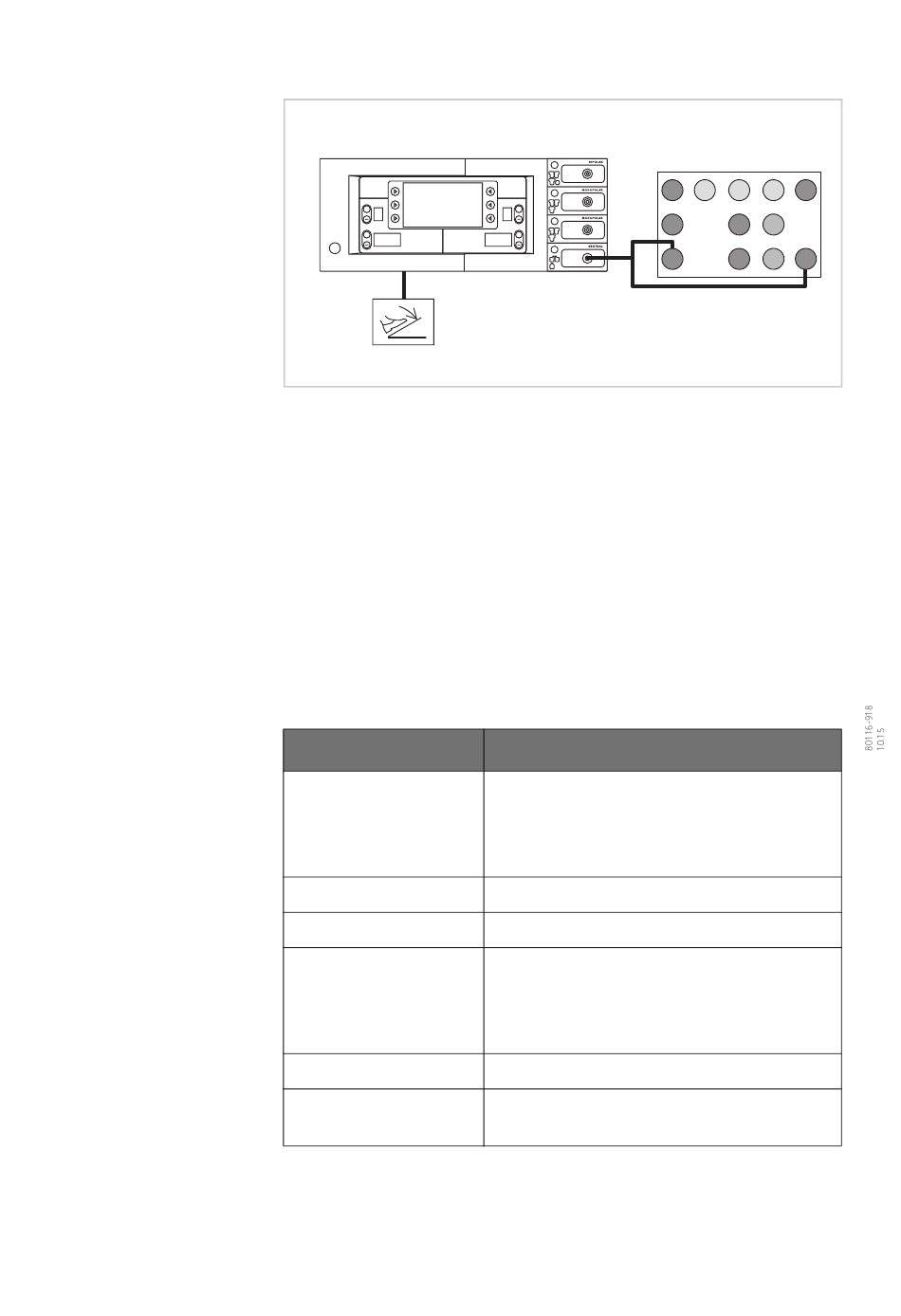

Fig. 6-14
• The test specimen is connected to the power supply via the power
cord.
• The test is performed without a load.
• The NE receptacle of the test specimen is connected to the VIO Testbox
via the patient cable NE with the adapter cable.
• The dual-pedal footswitch is connected.
1. On the test specimen the (dual surfaced) neutral electrode lamp must
light up red.
2. Activate AUTO CUT via the footswitch. The test specimen must inhibit
activation and emit or display an optical and acoustic warning.
Testing and measuring equipment
Erbe Art. No.
20192-127
20192-110
20190-045
–
20194-070
20194-075
20100-033
20100-101
Presets on the test specimen
• AUTO CUT, Effect 1, 10 watts.
• Neutral electrode "dual surface".
Testbox 20100-101
+
+
Description
Patient cable AE
or
Patient cable AE, international
Electrode handle ICC/ACC
Laboratory measuring cable
Patient cable NE
or
Patient cable NE, international
Adapter cable NE
VIO Testbox Symmetry/Resistance (NE
asymmetry/critical resistance)
