A.2 Dimensions
14 - SPKR OUT (-)
13 - SPKR OUT (+)
12 - AUX SPKR OUT (-)
11 - AUX SPKR OUT (+)
10 - RELAY - NO
9 - RELAY - COM
8 - LINE - IN (+)
7 - LINE - IN (-)
6 - LINE - OUT (-)
5 - LINE - OUT (+)
4 - SENSE - (+)
3 - SENSE - COM
2 - LED COM
1 - LED (+)
4.2 [107]
Operations Guide

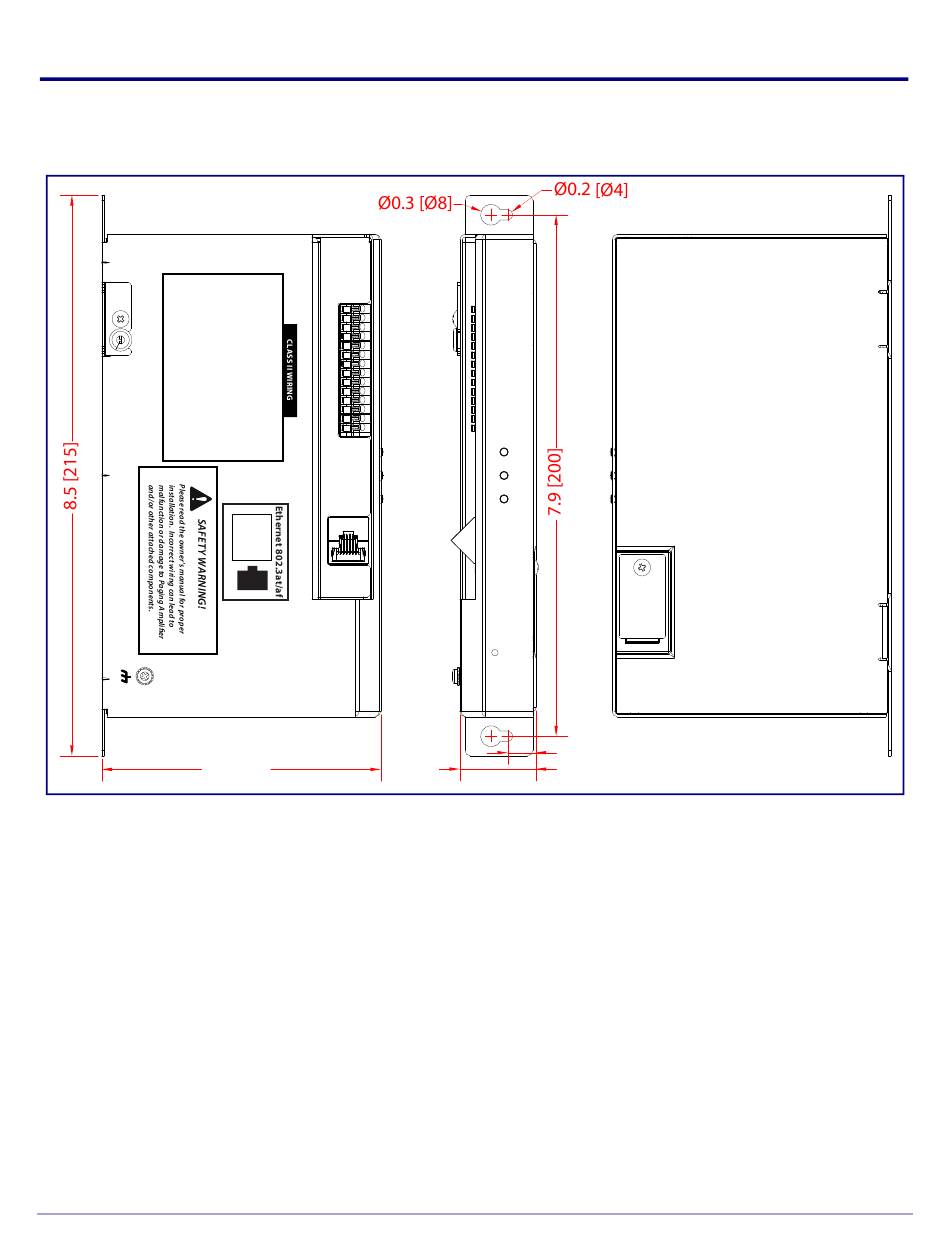

Figure A-1. Dimensions
0.4 [11]
1.1 [29]
931976A
Dimensions are in Inches [Millimeters]
CyberData Corporation
94
Dimensions
