2.2.2 Connecting the InformaCast Enabled Paging Amplifier

2.2.2.1 Using the Amplified Outputs
Low Power Mode The following figure illustrates how to connect the InformaCast Enabled Paging Amplifier and use the
(One Speaker)
amplified outputs in low power mode to one speaker or horn.
Note: You can use an
802.3af compliance
switch or an 802.3af
power injector and hub.
802.3af Compliant
PoE Ethernet Switch
(sold separately)
or
802.3af PoE Injector (low power mode) (sold separately)
*Note: 16 gauge (AWG) wiring is recommended. 
If the speaker will be routed outside, then CyberData
suggests using CL2 or CL3 certified wiring.
Note: The IP66 Analog Horn (011471) comes with a
3.28 foot cable, which can be connected directly to the
amplifier. If the wiring is greater than 3.28 feet, then it
is suggested to use solder and heat shrink tubing to
fasten the additional wires. Twist wire nuts can be
used as an alternative if it is protected sufficiently.
Operations Guide

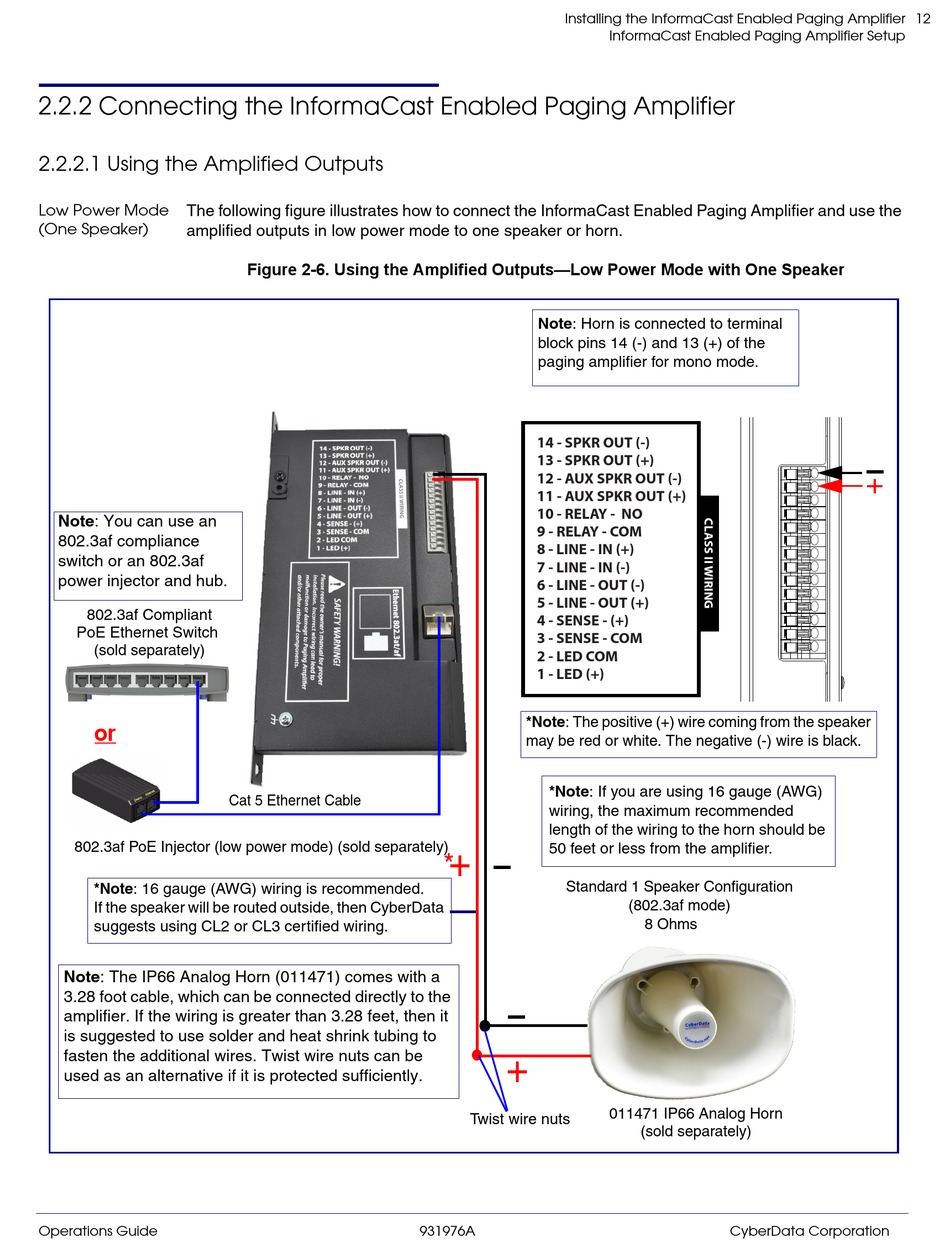

Figure 2-6. Using the Amplified Outputs—Low Power Mode with One Speaker
Cat 5 Ethernet Cable
Installing the InformaCast Enabled Paging Amplifier
Note: Horn is connected to terminal
block pins 14 (-) and 13 (+) of the
paging amplifier for mono mode.
14 - SPKR OUT (-)
13 - SPKR OUT (+)
12 - AUX SPKR OUT (-)
11 - AUX SPKR OUT (+)
10 - RELAY - NO
9 - RELAY - COM
8 - LINE - IN (+)
7 - LINE - IN (-)
6 - LINE - OUT (-)
5 - LINE - OUT (+)
4 - SENSE - (+)
3 - SENSE - COM
2 - LED COM
1 - LED (+)
*Note: The positive (+) wire coming from the speaker
may be red or white. The negative (-) wire is black.
*Note: If you are using 16 gauge (AWG)
wiring, the maximum recommended
length of the wiring to the horn should be
50 feet or less from the amplifier.
+
*
Standard 1 Speaker Configuration
+
Twist wire nuts
931976A
InformaCast Enabled Paging Amplifier Setup
(802.3af mode)
8 Ohms
011471 IP66 Analog Horn
(sold separately)
