Dimensions
A.2 Dimensions
Figure A-3

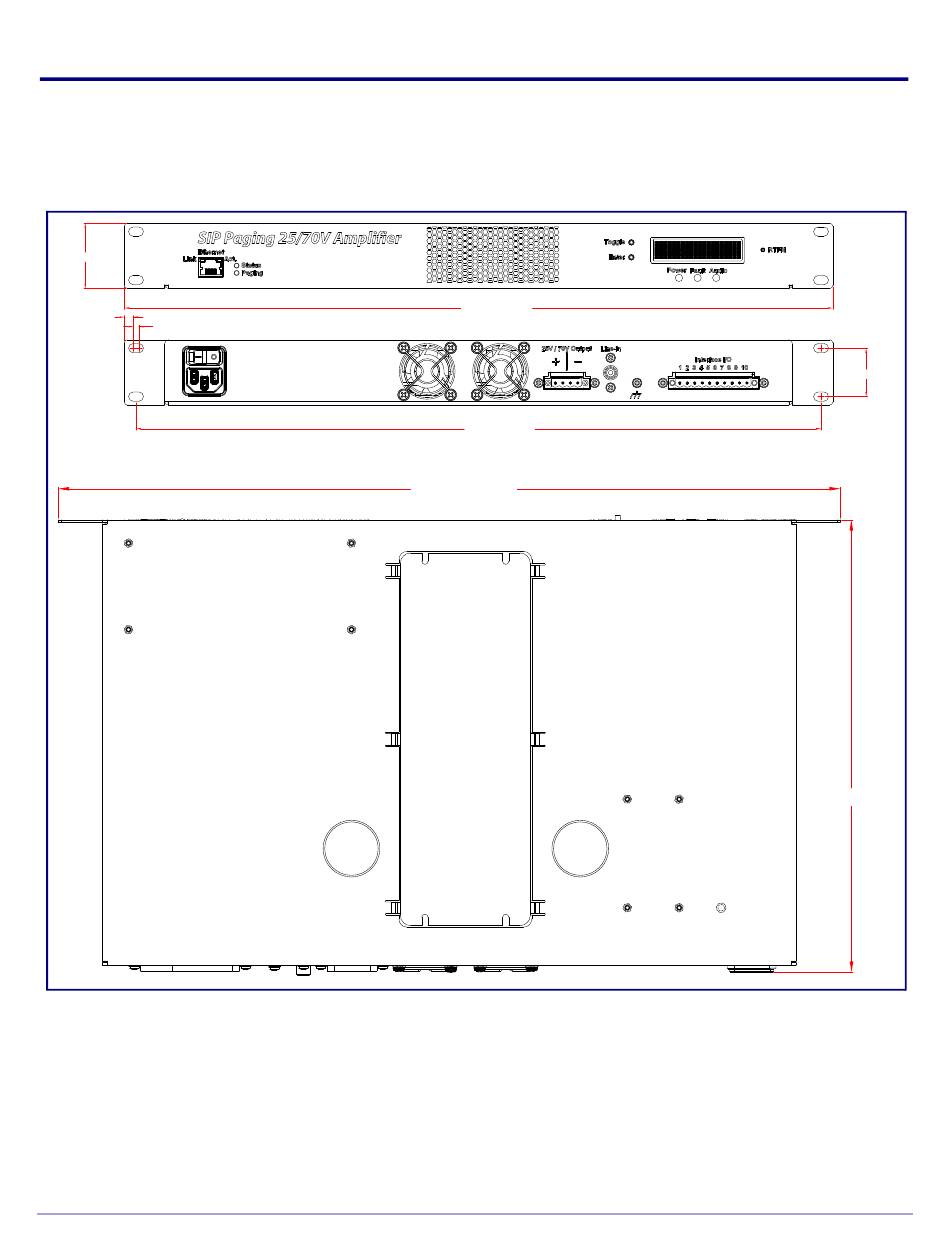

shows the dimensions for the SIP Paging 25V/70V Amplifier.
Figure A-3. Dimensions
1.750 [44.45]
Front View
19.000 [482.60]
0.238 [6.03]
0.150 [3.81]
1.300 [33.02]
Rear View
18.375 [466.72]
Dimensions are in Inches [Millimeters]
19.000 [482.60]
Bottom View
10.992 [279.20]
Operations Guide
931996A
CyberData Corporation
