2.2.1 InformaCast Enabled Paging Amplifier Components

Figure 2-5
Power (PWR) LED ( GREEN
The Power (PWR) LED is:
GREEN
in low power mode (
BLUE during high power mode (
Link/Network Activity (Link/Act.) LED (
GREEN
The Link/Network Activity (Link/Act.)
LED blinks to indicate network traffic.
RTFM
RTFM Switch
To broadcast the device's current IP address, press and hold the RTFM switch for a couple of seconds and then
release it.
To restore the factory defaults, complete the following steps:
1. Press and hold the RTFM switch for several seconds.
2. Release the RTFM switch. The device will be restored to the factory default settings, and will announce "restoring
defaults" and "rebooting."
Operations Guide
shows the components of the InformaCast Enabled Paging Amplifier.

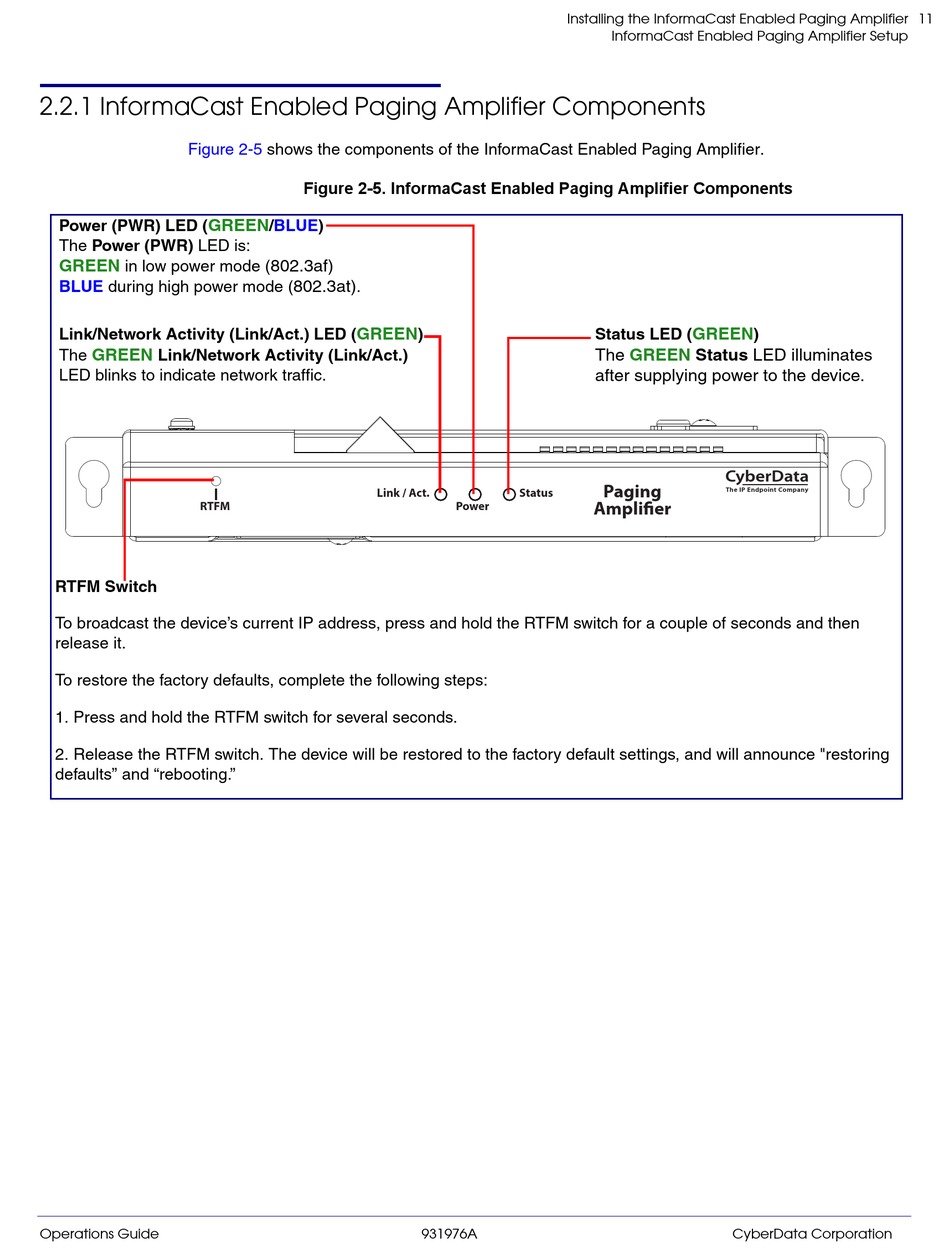

Figure 2-5. InformaCast Enabled Paging Amplifier Components
/BLUE)
802.3af) 
802.3at) .
) 
GREEN
Link / Act.
931976A
Installing the InformaCast Enabled Paging Amplifier
InformaCast Enabled Paging Amplifier Setup
Status LED (
The GREEN
after supplying power to the device.
Paging
Status
Amplifier
Power
GREEN )
Status LED illuminates
