External device
such as an
electric door strike
or an LED strobe
light
AC or DC
Power
Source
Operations Guide

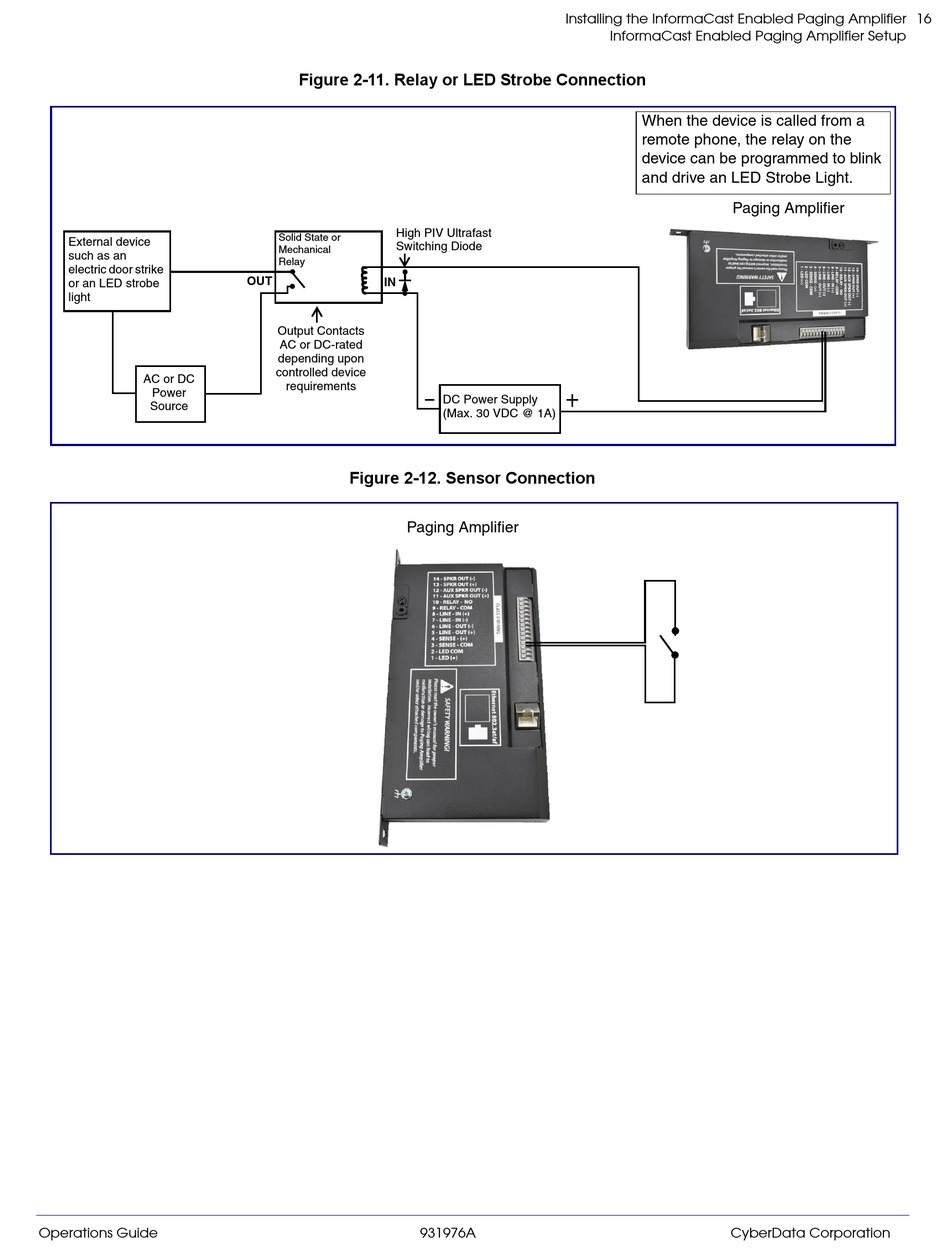

Figure 2-11. Relay or LED Strobe Connection
High PIV Ultrafast
Solid State or
Switching Diode
Mechanical
Relay
OUT
IN
Output Contacts
AC or DC-rated
depending upon
controlled device
requirements
Figure 2-12. Sensor Connection
Paging Amplifier
931976A
Installing the InformaCast Enabled Paging Amplifier
InformaCast Enabled Paging Amplifier Setup
DC Power Supply
(Max. 30 VDC @ 1A)
When the device is called from a
remote phone, the relay on the
device can be programmed to blink
and drive an LED Strobe Light.
