Web Page Item
Power Settings
802.3AT Mode
Force 802.3AT Mode (NOT recommended)
Misc Settings
Device Name
Auto-Answer Incoming Calls
Beep on Init
Beep on Page
Two Speakers Connected
RGB Strobe
DTMF Settings
Require Security Code
Security Code
Play Stored Message
InformaCast Settings
InformaCast Server
InformaCast Strobe Settings
Operations Guide

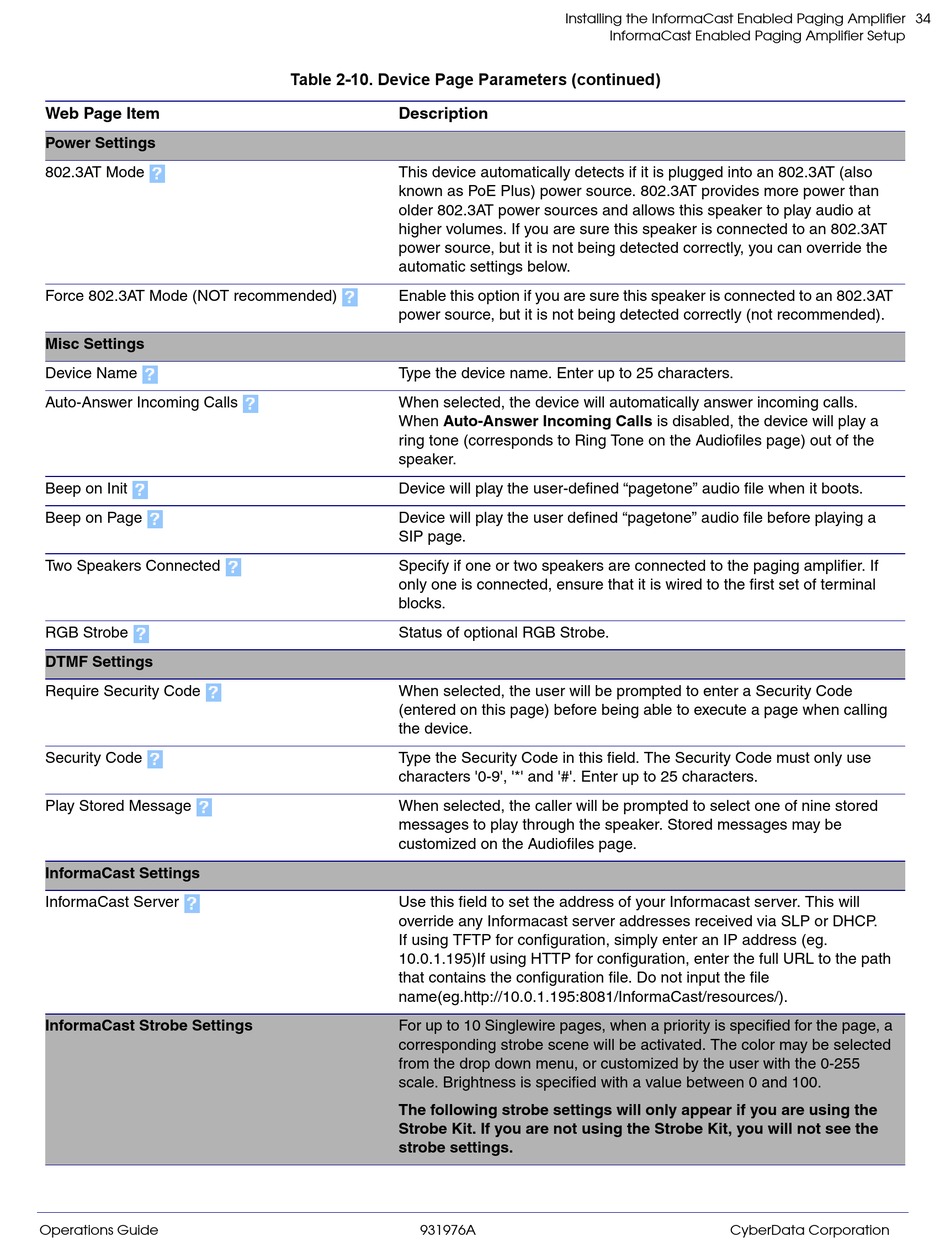

Table 2-10. Device Page Parameters (continued)
Description
This device automatically detects if it is plugged into an 802.3AT (also
known as PoE Plus) power source. 802.3AT provides more power than
older 802.3AT power sources and allows this speaker to play audio at
higher volumes. If you are sure this speaker is connected to an 802.3AT
power source, but it is not being detected correctly, you can override the
automatic settings below.
Enable this option if you are sure this speaker is connected to an 802.3AT
power source, but it is not being detected correctly (not recommended).
Type the device name. Enter up to 25 characters.
When selected, the device will automatically answer incoming calls.
When Auto-Answer Incoming Calls is disabled, the device will play a
ring tone (corresponds to Ring Tone on the Audiofiles page) out of the
speaker.
Device will play the user-defined "pagetone" audio file when it boots.
Device will play the user defined "pagetone" audio file before playing a
SIP page.
Specify if one or two speakers are connected to the paging amplifier. If
only one is connected, ensure that it is wired to the first set of terminal
blocks.
Status of optional RGB Strobe.
When selected, the user will be prompted to enter a Security Code
(entered on this page) before being able to execute a page when calling
the device.
Type the Security Code in this field. The Security Code must only use
characters '0-9', '*' and '#'. Enter up to 25 characters.
When selected, the caller will be prompted to select one of nine stored
messages to play through the speaker. Stored messages may be
customized on the Audiofiles page.
Use this field to set the address of your Informacast server. This will
override any Informacast server addresses received via SLP or DHCP. 
If using TFTP for configuration, simply enter an IP address (eg.
10.0.1.195)If using HTTP for configuration, enter the full URL to the path
that contains the configuration file. Do not input the file
name(eg.http://10.0.1.195:8081/InformaCast/resources/).
For up to 10 Singlewire pages, when a priority is specified for the page, a
corresponding strobe scene will be activated. The color may be selected
from the drop down menu, or customized by the user with the 0-255
scale. Brightness is specified with a value between 0 and 100.
The following strobe settings will only appear if you are using the
Strobe Kit. If you are not using the Strobe Kit, you will not see the
strobe settings.
