Chapter 2: Jumpers and Connectors

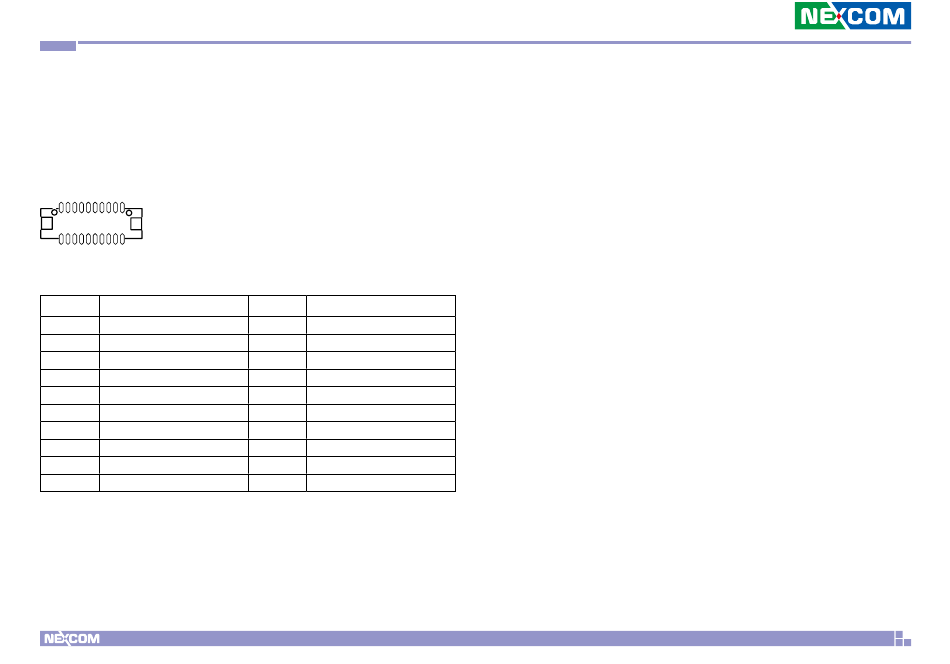

DisplayPort Connector
Connector type: DisplayPort connector
Connector location: DP1
1
19
2
20
Pin
Definition
1
DP0
3
DN0
5
GND
7
DP2
9
DN2
11
GND
13
CONFIG1
15
AUXP
17
AUXN
19
GND
Copyright © 2023 NEXCOM International Co., Ltd. All Rights Reserved.
Pin
Definition
2
GND
4
DP1
6
DN1
8
GND
10
DP3
12
DN3
14
CONFIG2
16
GND
18
HPD
20
+3V
