Chapter 2: Jumpers and Connectors

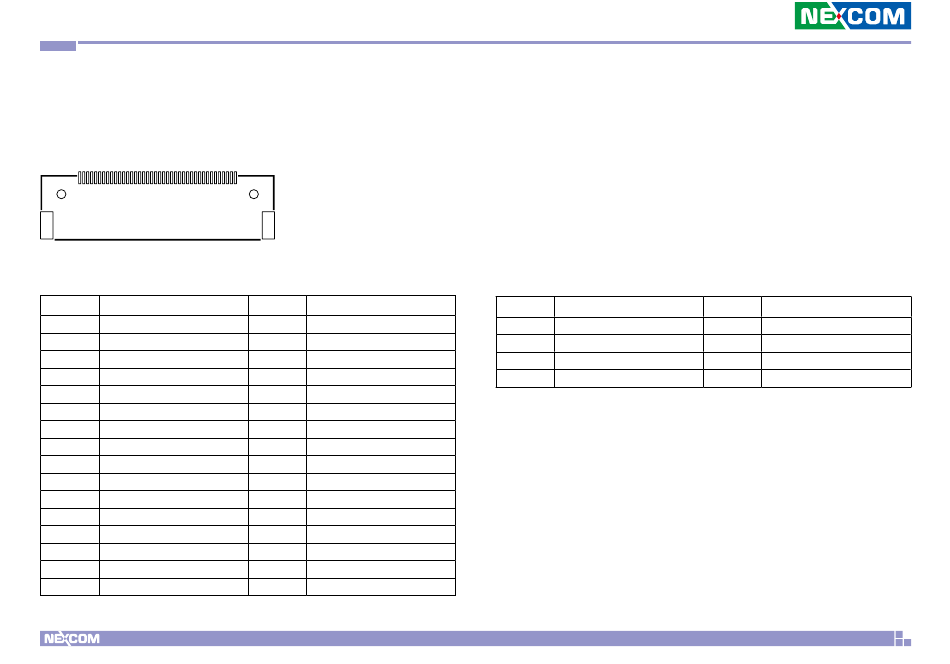

eDP Connector

Connector location: EDP1
1
Pin Definition
1 EDP_D3-
3 GND
5 EDP_D2+
7 EDP_D1-
9 GND
11 EDP_D0+
13 NC
15 NC
17 GND
19 +V_PANEL (3.3V or 5V)
21 GND
23 GND
25 GND
27 EDP_AUXN
29 GND
31 HPD
Copyright © 2023 NEXCOM International Co., Ltd. All Rights Reserved.
40
Pin Definition
2 EDP_D3+
4 EDP_D2-
6 GND
8 EDP_D1+
10 EDP_D0-
12 GND
14 NC
16 NC
18 +V_PANEL (3.3V or 5V)
20 +V_PANEL (3.3V or 5V)
22 NC
24 GND
26 EDP_AUXP
28 GND
30 GND
32 EDP_BKLT_EN
Pin Definition
33 EDP_BKLT_CTRL
35 NC
37 +12V
39 +12V
22
Pin Definition
34 NC
36 +12V
38 +12V
40 NC
