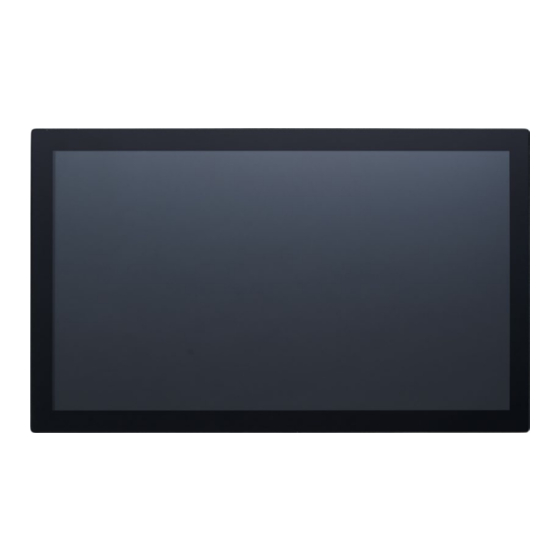

- Page 1 NEXCOM International Co., Ltd. Intelligent Platform & Services Business Unit Wide Screen Touch Computer XPPC 22-100 User Manual NEXCOM International Co., Ltd. www.nexcom.com Published November 2021...
-
Page 2: Table Of Contents
Disclaimer ....................iv Precautions ....................6 Acknowledgements ................iv Jumper Settings ..................7 Regulatory Compliance Statements ............iv Locations of the Jumpers and Connectors for XPPC 22-100 ....8 Declaration of Conformity ..............iv Top View .....................8 RoHS Compliance ................... v Bottom View ..................9 Warranty and RMA ................ - Page 3 Default Configuration ................30 Entering Setup ..................30 Legends ....................30 BIOS Setup Utility ..................32 Main ....................32 Advanced ..................33 Chipset ....................40 Security .....................43 Boot ....................44 Save & Exit ..................45 Copyright © 2021 NEXCOM International Co., Ltd. All Rights Reserved. XPPC 22-100 User Manual...
-
Page 4: Preface
No describes how to keep the system CE compliant. part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written consent from NEXCOM Declaration of Conformity International Co., Ltd. -
Page 5: Rohs Compliance
(Cr6+) < 0.1% or 1,000ppm, Polybrominated biphenyls (PBB) < 0.1% or 1,000ppm, and Polybrominated diphenyl Ethers (PBDE) < 0.1% or 1,000ppm. In order to meet the RoHS compliant directives, NEXCOM has established an engineering and manufacturing task force to implement the introduction of green products. -
Page 6: Warranty And Rma
“NEXCOM RMA Service Form” for the RMA number apply process. ▪ If RMA goods can not be repaired, NEXCOM will return it to the customer without any charge. ▪ Customers can send back the faulty products with or without accessories (manuals, cable, etc.) and any components from the card, such as CPU... - Page 7 ESD workstation. If no such station is available, you can provide some ESD protection by wearing an antistatic wrist strap and attaching it to a metal part of the computer chassis. Copyright © 2021 NEXCOM International Co., Ltd. All Rights Reserved. XPPC 22-100 User Manual...
-
Page 8: Safety Information
There is a danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Discard used batteries according to the manufacturer’s instructions. viii Copyright © 2021 NEXCOM International Co., Ltd. All Rights Reserved. XPPC 22-100 User Manual... -
Page 9: Safety Precautions
CAUTION: Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the instructions. 10. All cautions and warnings on the equipment should be noted. Copyright © 2021 NEXCOM International Co., Ltd. All Rights Reserved. XPPC 22-100 User Manual... -
Page 10: Technical Support And Assistance
Preface Technical Support and Assistance Conventions Used in this Manual 1. For the most updated information of NEXCOM products, visit NEXCOM’s Warning: website at www.nexcom.com. Information about certain situations, which if not observed, can cause personal injury. This will prevent injury to yourself 2. -
Page 11: Global Service Contact Information
16F, No.250, Sec. 2, Chongde Rd., Beijing, 100094, China Beitun Dist., Tel: +86-10-5704-2680 Taichung City 406, R.O.C. Fax: +86-10-5704-2681 Tel: +886-4-2249-1179 Email: sales@nexcom.cn Fax: +886-4-2249-1172 www.nexcom.cn Email: sales@nexcom.com.tw www.nexcom.com.tw Copyright © 2021 NEXCOM International Co., Ltd. All Rights Reserved. XPPC 22-100 User Manual... - Page 12 Tokyo, 108-0014, Japan No. 609, Yunlin East Rd., Tel: +81-3-5419-7830 Shanghai, 200062, China Fax: +81-3-5419-7832 Tel: +86-21-5278-5868 Email: sales@nexcom-jp.com Fax: +86-21-3251-6358 www.nexcom-jp.com Email: renwang@nexcom.com.tw www.nexcom.cn Copyright © 2021 NEXCOM International Co., Ltd. All Rights Reserved. XPPC 22-100 User Manual...
-
Page 13: Package Contents
Preface Package Contents Before continuing, verify that the XPPC 22-100 package that you received is complete. Your package should have all the items listed in the following table. Item Part Number Name 10W30XPPC10X0 XPPC22-100 System 7400090003X00 90W Power Adapter Optional Accessories 1... -
Page 14: Ordering Information
Preface Ordering Information The following below provides ordering information for XPPC 22-100. XPPC22-100 (P/N: 10W30XPPC10X0) 21.5” FHD LED multi-touch computer, Intel Celeron J3455 ® ® Panel Mount Kit (P/N: 88W30XPPC07X0) Open Frame Kit (P/N: 88W30XPPC08X0) Thermal Kit (P/N: 88W30XPPC09X0) Copyright © 2021 NEXCOM International Co., Ltd. All Rights Reserved. -
Page 15: Chapter 1: Product Introduction
J3455, Quad Core, 1.50 GHz ® ® ▪ 1 x DDR3L up to 8GB, M.2 2242 Key M for storage device ▪ Support power input 19 VDC Copyright © 2021 NEXCOM International Co., Ltd. All Rights Reserved. XPPC 22-100 User Manual... -
Page 16: Hardware Specifications
– IEC 68 2-27 ▪ 1 x mini-PCIe full-size connector with SIM slot (full-size) onboard, – 50g peak acceleration (11 msec. duration) support Wi-Fi/LTE module ▪ Temperature Copyright © 2021 NEXCOM International Co., Ltd. All Rights Reserved. XPPC 22-100 User Manual... - Page 17 ▪ Input: 100VAC to 240VAC ▪ Output: DC+19VD Certification ▪ CE (EN55035 + EN55032) ▪ FCC Class A (EMI part 15B) ▪ LVD (EN62368-1) Copyright © 2021 NEXCOM International Co., Ltd. All Rights Reserved. XPPC 22-100 User Manual...
-
Page 18: Knowing Your Xppc 22-100
Used to connect a headphone or a speaker. Line-out HDMI DC Input USB 3.0 Used to connect an HDMI interface monitor. Power Power LAN1 & LAN2 HDMI Switch Copyright © 2021 NEXCOM International Co., Ltd. All Rights Reserved. XPPC 22-100 User Manual... -
Page 19: Mechanical Dimensions
Mechanical Dimensions 237.85 141.37 134.07 54.00 50.80 520.60 OUTLINE 21.67 3.20 506.40 (MOUNTING LINE) 7.10 477.26 (V/A) 20.45 100.00 210.30 508.40±1.00 9.50 CUT OUT SIZE T=9.50mm (MAX) Copyright © 2021 NEXCOM International Co., Ltd. All Rights Reserved. XPPC 22-100 User Manual... -
Page 20: Chapter 2: Jumpers And Connectors
Static electricity can damage many of the electronic ▪ Use correct screws and do not over tighten screws. components. Humid environments tend to have less static electricity than Copyright © 2021 NEXCOM International Co., Ltd. All Rights Reserved. XPPC 22-100 User Manual... -
Page 21: Jumper Settings
(on) and open (off). Two-Pin Jumpers: Open (Left) and Short (Right) Three-Pin Jumpers: Pins 1 and 2 are Short Copyright © 2021 NEXCOM International Co., Ltd. All Rights Reserved. XPPC 22-100 User Manual... -
Page 22: Locations Of The Jumpers And Connectors For Xppc 22-100
Chapter 2: Jumpers and Connectors Locations of the Jumpers and Connectors for XPPC 22-100 The figure below is the top and bottom view of the mainboard used in XPPC 22-100. It shows the locations of the jumpers and connectors. CLRCT W_USB... -
Page 23: Bottom View
Chapter 2: Jumpers and Connectors Bottom View Copyright © 2021 NEXCOM International Co., Ltd. All Rights Reserved. XPPC 22-100 User Manual... -
Page 24: Jumpers & Dip Switches
Connector location: CLRTC Settings Settings 1-2 On ATX Mode 1-2 On Normal 2-3 On AT Mode 2-3 On Clear CMOS 1-2 On: default 1-2 On: default Copyright © 2021 NEXCOM International Co., Ltd. All Rights Reserved. XPPC 22-100 User Manual... -
Page 25: Lvds Panel Voltage Select
Connector type: 1x3 3-pin header, 2.0mm pitch Connector location: LVDS_PWR Connector location: BLT_PWM Settings Settings 1-2 On 3.3V 1-2 On 3.3V 2-3 On 2-3 On 1-2 On: default 2-3 On: default Copyright © 2021 NEXCOM International Co., Ltd. All Rights Reserved. XPPC 22-100 User Manual... -
Page 26: Lvds Resolution Select
1680 x 1050 8-bit Dual Port 1101 1600 x 1200 8-bit Dual Port 1110 1920 x 1080 8-bit Dual Port 1111 1920 x 1200 8-bit Dual Port Copyright © 2021 NEXCOM International Co., Ltd. All Rights Reserved. XPPC 22-100 User Manual... -
Page 27: Connector Pin Definitions
Chapter 2: Jumpers and Connectors Connector Pin Definitions External Connector COM1 DB9 Male Connector Connector type: DB-9 port, 9-pin D-Sub Connector location: COM1 RS232 RS422 RS485 Definition Definition Definition Copyright © 2021 NEXCOM International Co., Ltd. All Rights Reserved. XPPC 22-100 User Manual... -
Page 28: Internal Connectors
Connector type: 1x7 7-pin header JST, 2.5mm pitch Connector type: 1x2 2-pin header, 2.54mm pitch Connector location: INV Connector location: RESET Definition Definition Definition RESET# Backlight Control Backlight Enable Copyright © 2021 NEXCOM International Co., Ltd. All Rights Reserved. XPPC 22-100 User Manual... -
Page 29: Led Connector
Connector type: 1x5 5-pin header JST, 2.0mm pitch Connector type: 1x2 2-pin header, 2.54mm pitch Connector location: LED_CON Connector location: JP1 Definition Definition Definition HDD_LED- HDD_LED+ HDD_LED+ Standby LED HDD_LED- PWR LED Copyright © 2021 NEXCOM International Co., Ltd. All Rights Reserved. XPPC 22-100 User Manual... -
Page 30: Line-Out Connector
Connector type: 1x4 4-pin header, 2.0mm pitch Connector type: 2x5 10-pin header Connector location: LINE_OUT Connector location: J2 Definition Definition Definition Definition LOUT_L +5V_USB2_P45 LOUT_JD LOUT_R S_USB2DN4 S_USB2DP4 S_USB2DP5 S_USB2DN5 +5V_USB2_P45 Copyright © 2021 NEXCOM International Co., Ltd. All Rights Reserved. XPPC 22-100 User Manual... -
Page 31: Usb Touch
Connector type: 1x6 6-pin header JST, 2.5mm pitch Connector type: 1x2 2-pin header JST, 2.0mm pitch Connector location: W_USB Connector location: J1 Definition Definition Definition +5V_USB2_P2 S_USB2DN2 S_USB2DP2 S_USB2DN6 PWRBTN# S_USB2DP6 Copyright © 2021 NEXCOM International Co., Ltd. All Rights Reserved. XPPC 22-100 User Manual... -
Page 32: Dc Power Input
Connector type: 1x2 2-pin header, 3.96mm pitch Connector type: 1x4 4-pin header, 2.54mm pitch Connector location: CON1 Connector location: FAN1 Definition Definition Definition +12V +DC_IN FAN SPEED DETECT FAN SPEED CONTROL Copyright © 2021 NEXCOM International Co., Ltd. All Rights Reserved. XPPC 22-100 User Manual... -
Page 33: Debug Port/Lpc Bus Connector
Connector type: 1x10 10-pin header, 1.0mm pitch Connector type: 1x9 9-pin header, 1.0mm pitch Connector location: NXM_DEBUG Connector location: COM2 Definition Definition Definition Definition SERIRQ LAD0 LAD1 LAD2 LAD3 LFRAME# 25MHZ PLTRST# Copyright © 2021 NEXCOM International Co., Ltd. All Rights Reserved. XPPC 22-100 User Manual... -
Page 34: Battery Connector
+V_PANEL (3.3V or 5V) +V_PANEL (3.3V or 5V) +V_PANEL (3.3V or 5V) 3.3V LVDS0_CLK+ LVDS0_CLK- SMBUS_CLK Backlight Enable Backlight Control LVDS1_CLK+ LVDS1_CLK- +12V +12V +12V SMBUS_DAT Copyright © 2021 NEXCOM International Co., Ltd. All Rights Reserved. XPPC 22-100 User Manual... -
Page 35: Mini-Pcie Connector
WAKE# +3VSB +1.5V SMB_CLK +1.5V PETn0 SMB_DATA SIM_PWR PETp0 SIM_DATA USB_D- REFCLK- SIM_CLK USB_D+ REFCLK+ SIM_RESET +3VSB SIM_VPP +3VSB WLAN_DISABLE# RESET# +1.5V PERn0 +3VSB PERp0 +3VSB Copyright © 2021 NEXCOM International Co., Ltd. All Rights Reserved. XPPC 22-100 User Manual... -
Page 36: Connector (M-Key)
M.2 Connector (M-Key) Connector location: M2M Definition Definition Definition Definition +3VSB +3VSB SATA_RXP SATA_RXN M2M_LED# SATA_TXN +3VSB SATA_TXP RESET# +3VSB +3VSB +3VSB +3VSB +3VSB +3VSB DEVSLP Copyright © 2021 NEXCOM International Co., Ltd. All Rights Reserved. XPPC 22-100 User Manual... -
Page 37: Chapter 3: System Setup
Prior to removing the top cover, make sure the unit’s power CAUTION! CAUTION! CAUTION! is off and disconnected from the power sources to prevent electric shock or system damage. Copyright © 2021 NEXCOM International Co., Ltd. All Rights Reserved. XPPC 22-100 User Manual... -
Page 38: Installing A Wifi Or Lte Module
Installing a WiFi or LTE Module 1. Remove the 6 screws on the board and IO bracket. Next, remove the 2. Locate the WiFi or LTE module. board from the chassis. Copyright © 2021 NEXCOM International Co., Ltd. All Rights Reserved. XPPC 22-100 User Manual... -
Page 39: Installing Vesa Mount Kit
Recommended screws for the VESA mount kit: 4 * M4x8 screws. 6 * Screws (F3x5 Nylok NI+Heat) Copyright © 2021 NEXCOM International Co., Ltd. All Rights Reserved. XPPC 22-100 User Manual... -
Page 40: System Dimensions With Open Frame Kit
Chapter 3: System Setup System Dimensions with Open Frame Kit 562.60 7.10 506.40 (MOUNTING LINE) 562.60 (OUTLINE) 477.26 (V/A) 21.67 4 - R2.25 4.20 543.60 100.00 210.30 Copyright © 2021 NEXCOM International Co., Ltd. All Rights Reserved. XPPC 22-100 User Manual... -
Page 41: Panel Mounting
CUT OUT SIZE T=9.50mm (MAX) 3. Slide the panel PC through the hole until it is properly fitted against the panel. 14 * Screws (F3x5 Nylok NI+Heat) Copyright © 2021 NEXCOM International Co., Ltd. All Rights Reserved. XPPC 22-100 User Manual... - Page 42 5. Tighten the clamp’s screw until it touches the panel. Panel Clamp Do not overtighten the screws to prevent damaging the CAUTION! CAUTION! CAUTION! Panel PC. Copyright © 2021 NEXCOM International Co., Ltd. All Rights Reserved. XPPC 22-100 User Manual...
-
Page 43: Chapter 4: Bios Setup
This chapter describes how to use the BIOS setup program for XPPC 22-100. The settings made in the setup program affect how the computer performs. The BIOS screens provided in this chapter are for reference only and may It is important, therefore, first to try to understand all the setup options, and change if the BIOS is updated in the future. -
Page 44: Default Configuration
Powering on the computer and immediately pressing <Del> allows you to enter Setup. Load optimized default values. Press the key to enter Setup: Saves and exits the Setup program. Press <Enter> to enter the highlighted sub-menu Copyright © 2021 NEXCOM International Co., Ltd. All Rights Reserved. XPPC 22-100 User Manual... - Page 45 When “” appears on the left of a particular field, it indicates that a submenu which contains additional options are available for that field. To display the submenu, move the highlight to that field and press Copyright © 2021 NEXCOM International Co., Ltd. All Rights Reserved. XPPC 22-100 User Manual...
-
Page 46: Bios Setup Utility
F2: Previous Values System Date [Tue 01/07/2020] F3: Optimized Defaults System Time [23:28:42] F4: Save & Exit ESC: Exit Version 2.18.1263. Copyright (C) 2019 American Megatrends, Inc. Copyright © 2021 NEXCOM International Co., Ltd. All Rights Reserved. XPPC 22-100 User Manual... -
Page 47: Advanced
The options are Suspend Disabled and S3 (Suspend to RAM). Version 2.18.1263. Copyright (C) 2019 American Megatrends, Inc. Restore AC Power Loss Configures the power state when power is re-applied after a power failure. Copyright © 2021 NEXCOM International Co., Ltd. All Rights Reserved. XPPC 22-100 User Manual... -
Page 48: Bios Setup Utility
Displays the IO address and IRQ of the serial COM port. Onboard Serial Port Mode Select this to change the serial port mode to RS232, RS422, RS485 No Terminator or RS485 With Terminator. Copyright © 2021 NEXCOM International Co., Ltd. All Rights Reserved. XPPC 22-100 User Manual... -
Page 49: Advanced
Detects and displays the current system temperature. CPU Fan Speed Detects and displays the current CPU fan speed. VCORE to 1.35VDUAL Detects and displays the output voltages. Copyright © 2021 NEXCOM International Co., Ltd. All Rights Reserved. XPPC 22-100 User Manual... - Page 50 When this field is set to Enabled, the VMM can utilize the additional hardware capabilities provided by Vanderpool Technology. VT-d Enables or disables VT-d function on MCH. Copyright © 2021 NEXCOM International Co., Ltd. All Rights Reserved. XPPC 22-100 User Manual...
- Page 51 F4: Save & Exit ESC: Exit Version 2.18.1263. Copyright (C) 2019 American Megatrends, Inc. Version 2.18.1263. Copyright (C) 2019 American Megatrends, Inc. EIST Enables or disables Intel ® SpeedStep. Copyright © 2021 NEXCOM International Co., Ltd. All Rights Reserved. XPPC 22-100 User Manual...
- Page 52 Enables or disables UEFI network stack. Enables or disables BIOS support for security device. O.S will not show Security Device. TCG EFI protocol and INT1A interface will not be available. Copyright © 2021 NEXCOM International Co., Ltd. All Rights Reserved. XPPC 22-100 User Manual...
- Page 53 XHCI ownership change should be claimed by the XHCI driver. USB Mass Storage Driver Support Enables or disables USB mass storage driver support. USB transfer time-out The time-out value for control, bulk, and Interrupt transfers. Copyright © 2021 NEXCOM International Co., Ltd. All Rights Reserved. XPPC 22-100 User Manual...
-
Page 54: Chipset
Version 2.18.1263. Copyright (C) 2019 American Megatrends, Inc. SMBus Support Version 2.18.1263. Copyright (C) 2019 American Megatrends, Inc. Enables or disables SMBus support. Setting incorrect field values may cause the system to malfunction. Copyright © 2021 NEXCOM International Co., Ltd. All Rights Reserved. XPPC 22-100 User Manual... - Page 55 ESC: Exit Version 2.18.1263. Copyright (C) 2019 American Megatrends, Inc. Version 2.18.1263. Copyright (C) 2019 American Megatrends, Inc. HD-Audio Support Enables or disables HD Audio support. Copyright © 2021 NEXCOM International Co., Ltd. All Rights Reserved. XPPC 22-100 User Manual...
- Page 56 OS. Please do not disable it unless for debugging purposes. SATA Test Mode Enables or disables SATA test mode. Port 0 Enables or disables SATA port 0. Port 1 Enables or disables SATA port 1. Copyright © 2021 NEXCOM International Co., Ltd. All Rights Reserved. XPPC 22-100 User Manual...
-
Page 57: Security
Select this to reconfigure the administrator’s password. USB Power State in S5 User Password Configures the USB power state in S5. Select this to reconfigure the user’s password. Copyright © 2021 NEXCOM International Co., Ltd. All Rights Reserved. XPPC 22-100 User Manual... -
Page 58: Boot
When set to Off, the function of the numeric keypad is the arrow keys Quiet Boot Enabled Displays OEM logo instead of the POST messages. Disabled Displays normal POST messages. Copyright © 2021 NEXCOM International Co., Ltd. All Rights Reserved. XPPC 22-100 User Manual... -
Page 59: Save & Exit
Restore Defaults To restore the BIOS to default settings, select this field then press <Enter>. A dialog box will appear. Confirm by selecting Yes. Copyright © 2021 NEXCOM International Co., Ltd. All Rights Reserved. XPPC 22-100 User Manual...
