ZYNQ Ultrascale + FPGA Board ACU3EG User Manual

Part 7: LED

There is a red power indicator (PWR) and a configuration LED (DONE) on
the ACU3EG core board. When the core board is powered on, the power
indicator will light up; after the FPGA configuration program, the configuration
LED light will light up. The LED Schematic in the Core Board is shown in Figure
7-1:

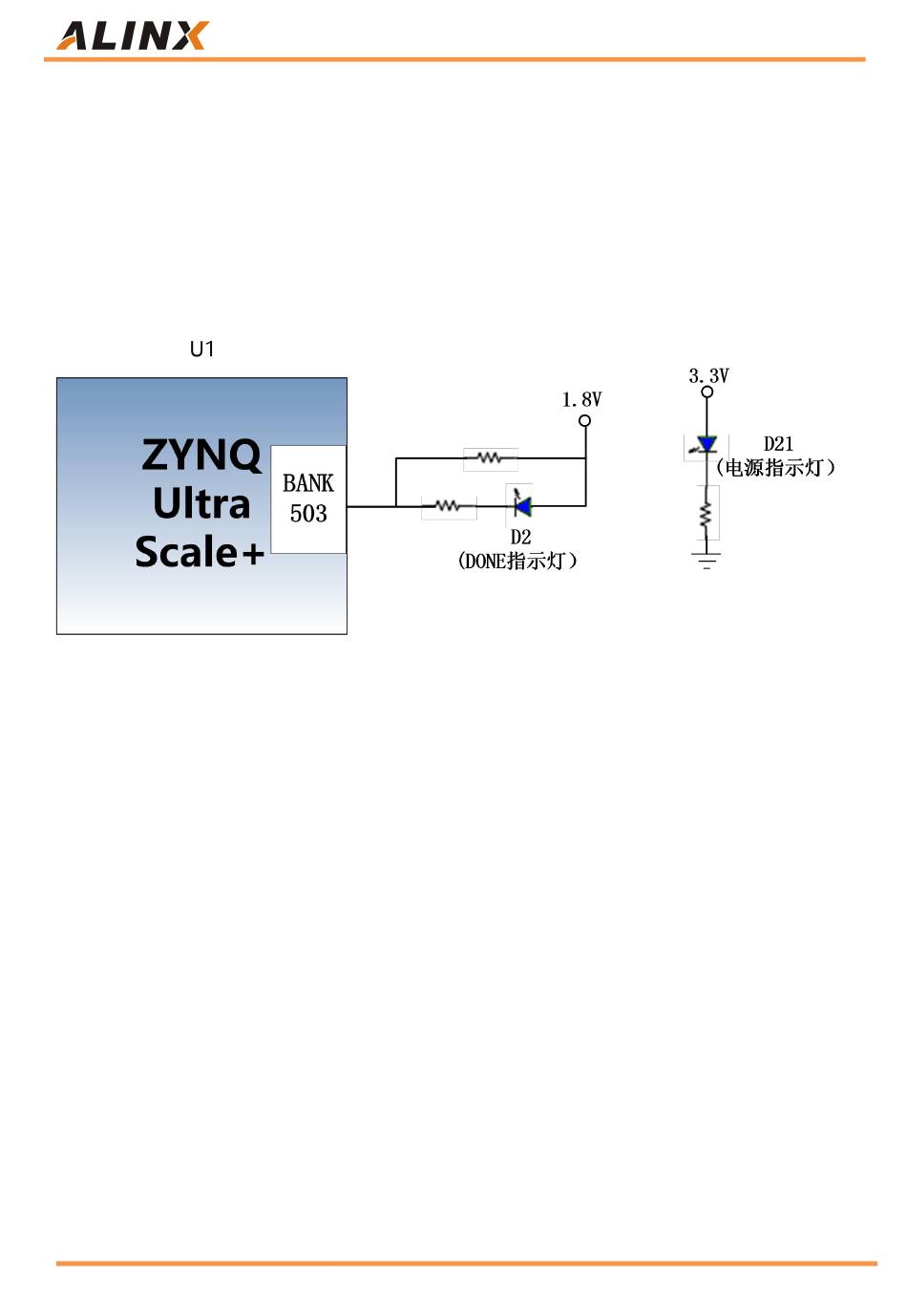

Figure 7-1: LED Schematic in the Core Board
