Trigger Source
Frequency Converter
Control
Action Command Trigger
Free Trigger
Set and Execute Software Trigger
In software trigger, the software sends trigger signal to the device via GigE interface to
acquire images.
Steps
1. Go to Acquisition Control → Trigger Selector, and select Frame Burst Start as Trigger
Selector.
2. Select On as Trigger Mode.
3. Select Software as Trigger Source.
4. Click Execute in Trigger Software.
Set and Execute Hardware Trigger
If the device enables the frame trigger or line trigger, you can select specific lines as
trigger source to enable hardware trigger. At this time, external devices send commands to
the device to acquire images.
Steps
1. Go to Acquisition Control → Trigger Selector, and select Frame Burst Start or Line
Start as Trigger Selector.
2. Select On as Trigger Mode.
3. Select specific line as Trigger Source.
GigE Line Scan Camera User Manual
Parameter Value
Frequency
Converter
Action 1
Anyway

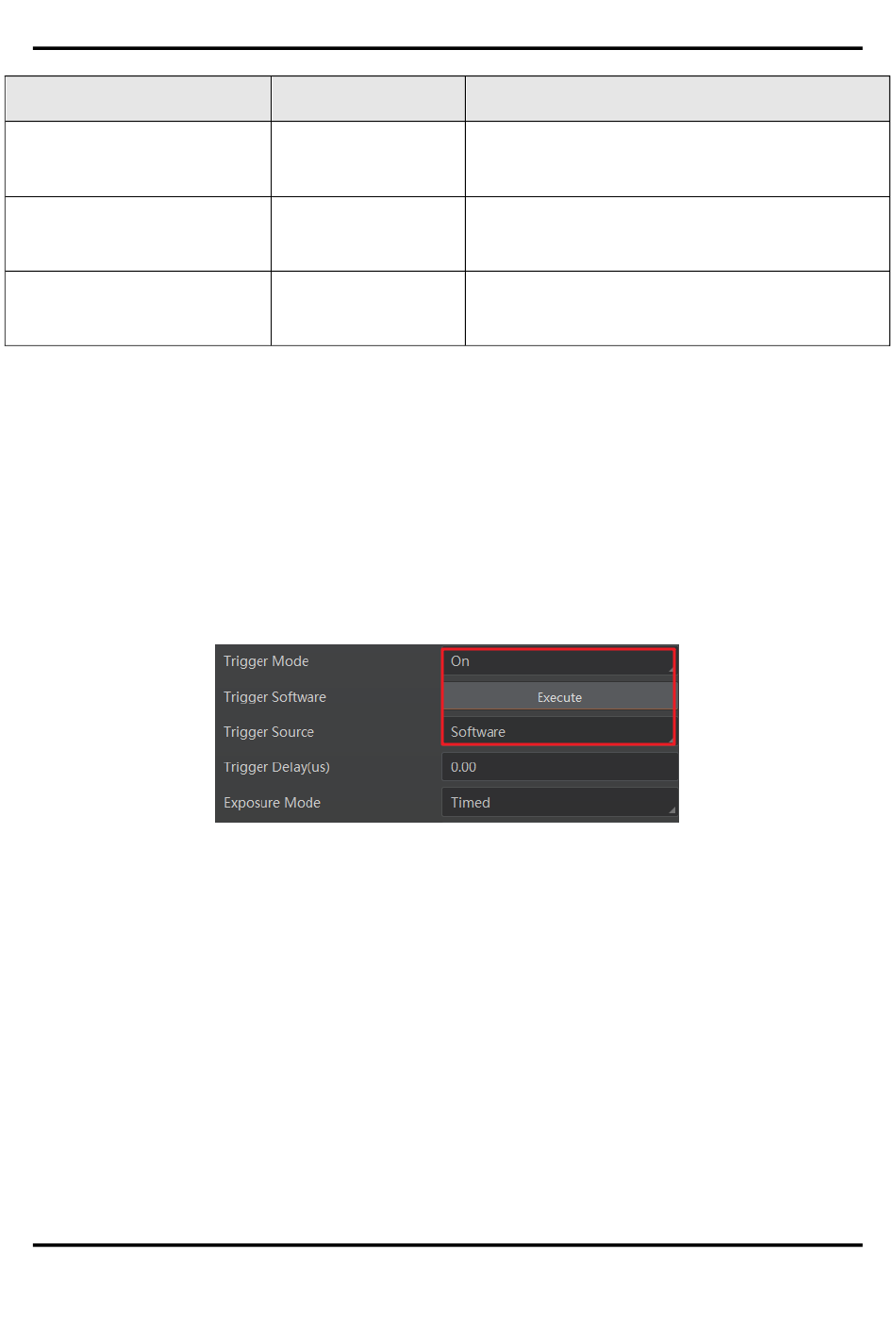

Figure 7-5 Set and Execute Software Trigger
This trigger
frequency between trigger device signal and
required input signal.
This trigger source is applied in PTP
function. Refer to section Set Action
Command for details.
Use trigger sources mentioned above to
send trigger signal to the device to acquire
images.
20
Description
source allows different
