GigE Line Scan Camera User Manual
Test Pattern according to actual demands.

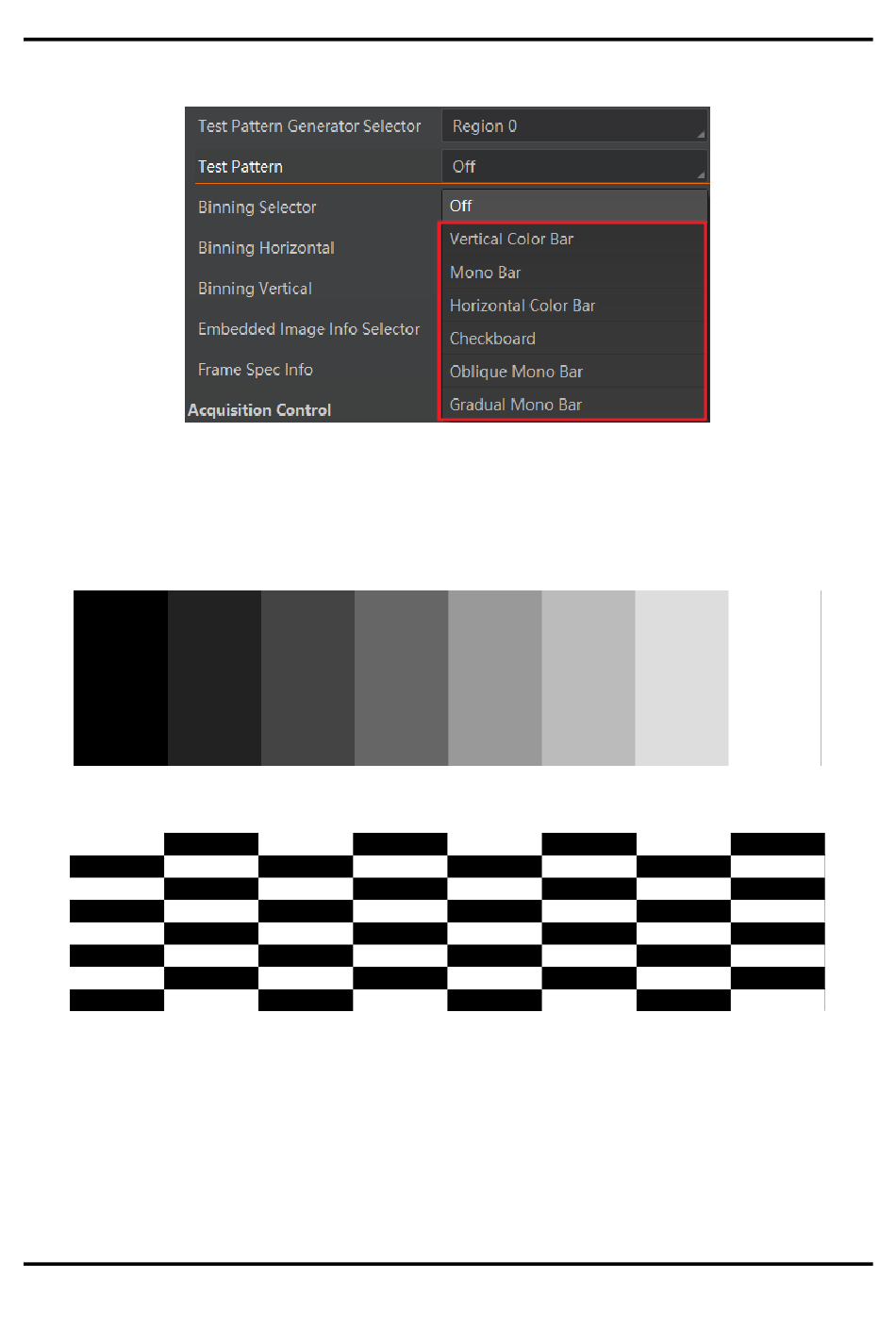

Figure 10-12 Set Test Pattern
The mono device offers 5 test patterns, including Mono Bar, Checkboard, Oblique Mono
Bar, Gradual Mono Bar, and Test Image 1.
The color device offers 7 test patterns, including Mono Bar, Checkboard, Oblique Mono
Bar, Gradual Mono Bar, Vertical Color Bar, Horizontal Color Bar, and Test Image 1.
Figure 10-13 Mono Bar Test Pattern
Figure 10-14 Checkboard Test Pattern
61
